SKU: DH.WHM120-Parent

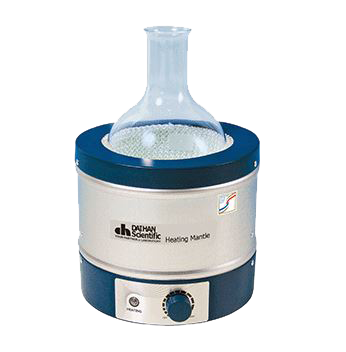

Aluminium case Flask Heating Mantles Basic Type
Categories: Heating MantlesSKU: DH.WHM120-Parent
Product Enquiry
- Ideal for All type Round Flask
- With Powder-coated Steel-case
- With Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
- Built-in Temp-Controller. Nickel-Chrome Heating Element “Coil-type” – Max 450°C
| Code | Flasks, ml Dia. Φ mm |
Mantle | ||
| Watts (W) | Inside Depth | Outside Φ× h(mm) |
||
| DH.WHM12010 | 50ml, Φ49 ~ 52 | 90 W | 30 mm | Φ145×h140 |
| DH.WHM12011 | 100ml, Φ63 ~ 66 | 90 W | 50 mm | Φ145×h140 |
| DH.WHM12012 | 250ml, Φ83 ~ 86 | 160 W | 55 mm | Φ145×h140 |
| DH.WHM12013 | 500ml, Φ102 ~ 105 | 250 W | 70 mm | Φ190×h165 |
| DH.WHM12014 | 1,000ml, Φ130 ~ 133 | 350 W | 85 mm | Φ190×h165 |
| DH.WHM12015 | 2,000ml, Φ165 ~ 169 | 490 W | 100 mm | Φ270×h200 |
| DH.WHM12016 | 3,000ml, Φ184 ~ 187 | 600 W | 110 mm | Φ270×h200 |
| DH.WHM12017 | 5,000ml, Φ221 ~ 225 | 850 W | 130 mm | Φ325×h226 |
| DH.WHM12019 | 10Lit, Φ278 ~ 282 | 1,500 W | 205 mm | Φ400×h260 |
| Weight | N/A |
|---|---|
| Volume | 50ml, 250ml, 500ml, 1000ml, 2000ml, 3000ml, 5000ml, 10Ltr |
