DIGISYSTEM Circulating Water BathsWithout Lid Digital
Categories: Water BathsSKU: choose volume and type
Product Enquiry

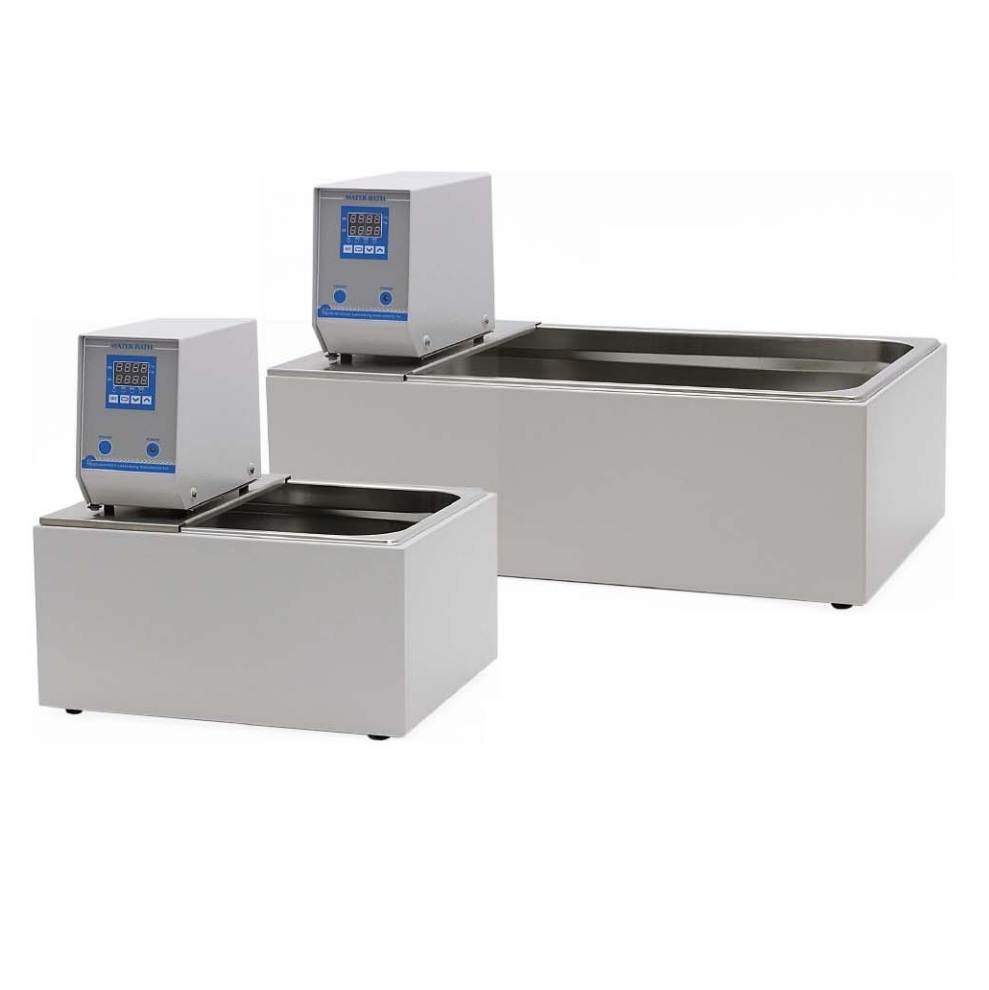

Circulating water baths DSB-500D / DSB-1000D / DS-1000D-EC have a PID microprocessor controller with a digital temperature setting and digital temperature readout. The temperature can reach up to 100 degrees C.
- PID microprocessor temperature control.
- Large bath opening lets you immerse samples conveniently.
- Inside stainless steel tank.
- Immersion pump circulation.
- Long-life immersion stainless pipe heater.
- Quality certification: ISO 9001, ISO 13485.
- Warranty Period: 1 Year
| Model | DSB-500D | DSB-1000D | DSB-1000D-EC |
| Capacity | 10 Liters | 20 Liters | |
| Inner tank dimension | W240xD300xH150mm | W290xD490xH150mm | |
| Temperature setting | Digital | ||
| Temperature readout | Digital | ||
| Temperature control | PID | ||
| Temperature sensor | PT100Ω | ||
| Stability | ±0.2℃ | ||
| Working temperature range | Ambient +5℃ ~100℃ | ||
| Power watts | 1200W | ||

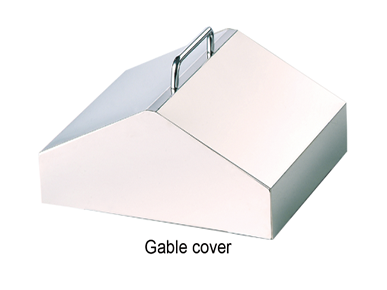

| Optional accessory | Flat lid, gable cover sold Separately | ||
| Weight (kg) (N.W./G.W.) | 8.0 / 9.0 | 10.0/11.5 | |
| Overall dimension | W275xD335xH303mm | W340xD540xH303mm | |
| Power supply | 220V 50/60Hz | ||
| Weight | N/A |
|---|---|
| Volume | 10Ltr, 20Ltr |
Covered by a 1-year manufacturer warranty protecting against defects in materials or workmanship.
This does not cover normal wear and tear or damage from improper use.
