SKU: EVOHP1-Parent

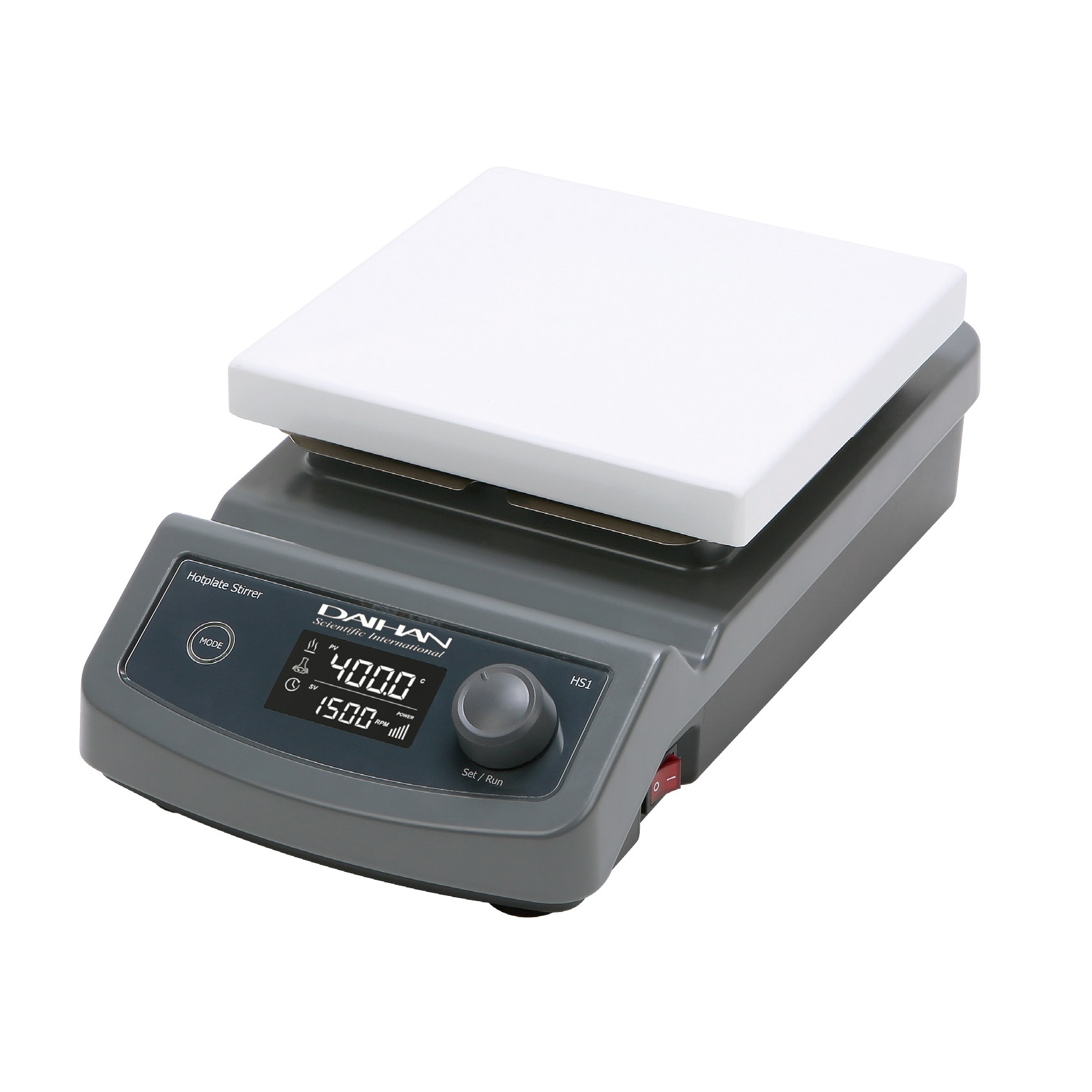

Digital Hotplate
In Stock
Categories: Hotplates & Hotplate StirrersSKU: EVOHP1-Parent
Product Enquiry
SPECIFICATIONS
| EVOHS1 | EVOHS1-SET | |
| Plate Dimensions | 180×180mm | |
| Heating Temperature | Max 400°C | |
| Temp. Accuracy | ±0.3°C | |
| Temp Resolution – Display | 0.1°C | |
| Temp. Resolution – Control | 0.1°C | |
| Controller | Digital Fuzzy Controller with Touch Button & Jog Dial | |
| Timer | 99h 59m | |
| Display | Full Digital LCD Display with Black-Light Function | |
| Heating Output | 600W | |
| Others – Special function | Anti Step Out Function/Fine Control Mode for Oil Sample | |
| Permissible Temp. & Humidity | 5°C-40°C, <80% | |
| Safety Devices | Over Temp Protection | |
| Plate Material | Ceramic Coated Aluminium | |
| Body Material | Powder Coated Aluminium | |
| Power Consumption | 620W | |
| Dimensions (w × d × h) | 180 × 325 × 110mm | |
| Net Weight | 3.43kg | |
| Packing Size (w × d × h) | 285 ×400 ×170mm | |
| Gross Weight | 4.13kg | 4.6kg |
| Power Consumption | 1 Phase, AC, 120V, 60Hz or AC 230V, 50/60Hz | |
Accessories in the EVOHS1-Set include a temperature probe, stand rod and holder.
