SKU: EVOHS1-M6

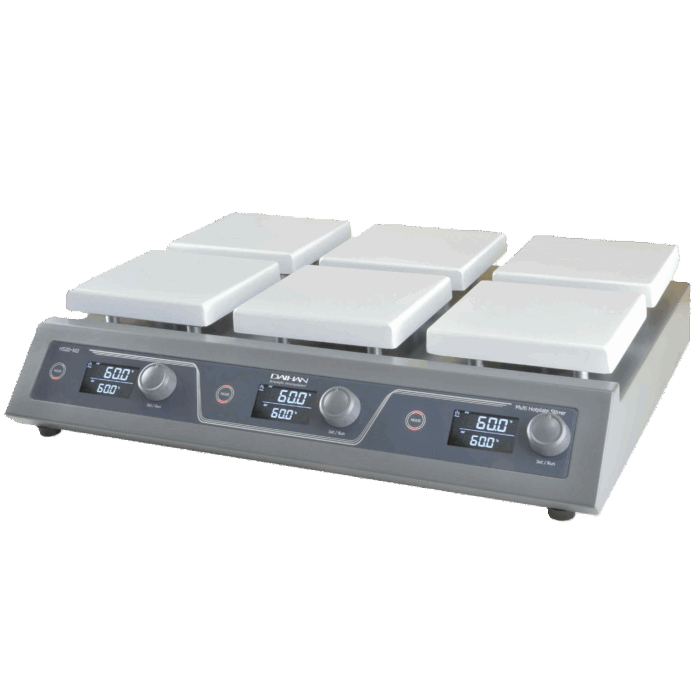

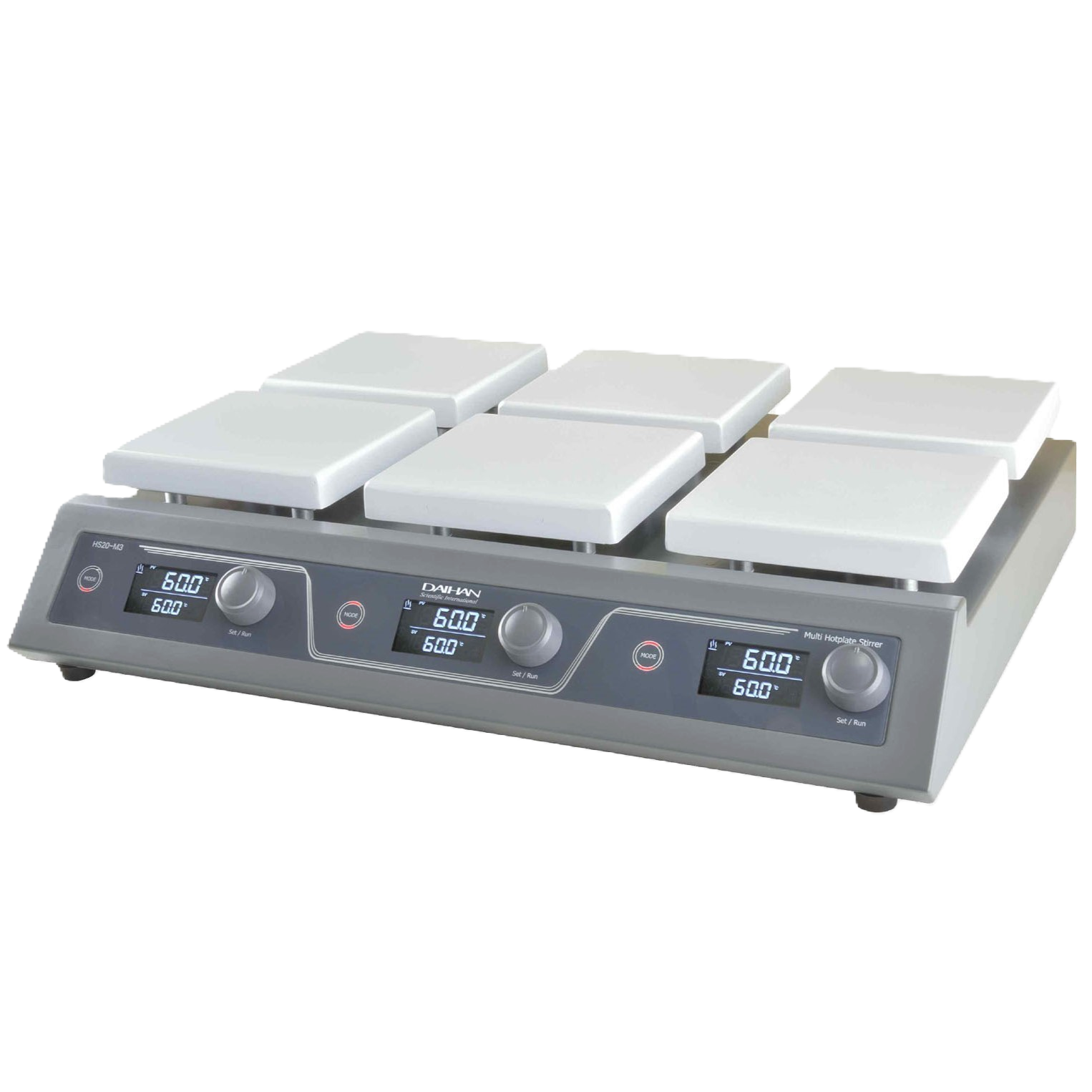

6 Place Hotplate Magnetic Stirrer
Categories: Magnetic StirrersSKU: EVOHS1-M6
Product Enquiry
Features:
- Brushless DC motor
- Powerful and precise stirring function by strong magnetic drive
- Stable and long-life cycle by “Slow start function”
- High durability and uniformity
- High chemical resistance and specially designed heat line realize good temp. uniformity
- Step-out Recovery function
- In case of stirring failure, EVO HS1-M6 detects it and recovers stirring automatically
- 6 plates with 3 controllers
- 3 Controllers can control 6 plates independently (1 controller affords 2 plates)
- Current status of temp. and speed of 6 plates can be displayed simultaneously
- Just having 3 controllers enable super-compact size and super-light weight
- Jog-Dial controller w/electrostatic touch-type mode button and high fidelity LCD display (Graphic icons for each mode)
- Safety functions – over-heat/load/current protection for safety of products and samples
| EVO HS1-M6 | |
| Operation mode | 140 × 140mm × 6(2×3) Place |
| Plate material | Ceramic coated aluminium |
| Body material | Powder coated steel |
| Stirring capacity | Max 20L |
| Motor | Brushless DC motor |
| Speed range | 80 to 1’500 rpm |
| Speed resolution | 5rpm |
| Temp. range/accuracy | Max 350°C/±0.3°C |
| Temp. resolution | 0.1°C–display, 0.1°C–control |
| Heating output/consumption | 400W X 6/2, 600W |
| Timer/Alarm | 99h 59m/Error status, Timer-end |
| Display | High fidelity LCD with Back-Light function |
| Controller | Digital fuzzy controller w/electrostatic touch button + Jog-Dial |
| Stirring bar usable | up to 50mm |
| Permissible temp./RH% | ambient +5~40°C/80% RH |
| Safety device | Over-heat/load/current protection |
| Dimensions (W×D×H) | 500 × 410 × 110mm |
| Net Weight | 14.0kg |
| Packing size (W×D×H) | 590 × 510 × 190mm |
| Gross Weight | 15.5kg |
| Power supply | AC230V, 50/60Hz, 1P |
