SKU: HPLP-C-P
310×620mm Hotplate, Digital
Categories: Hotplates & Hotplate StirrersSKU: HPLP-C-P
Product Enquiry

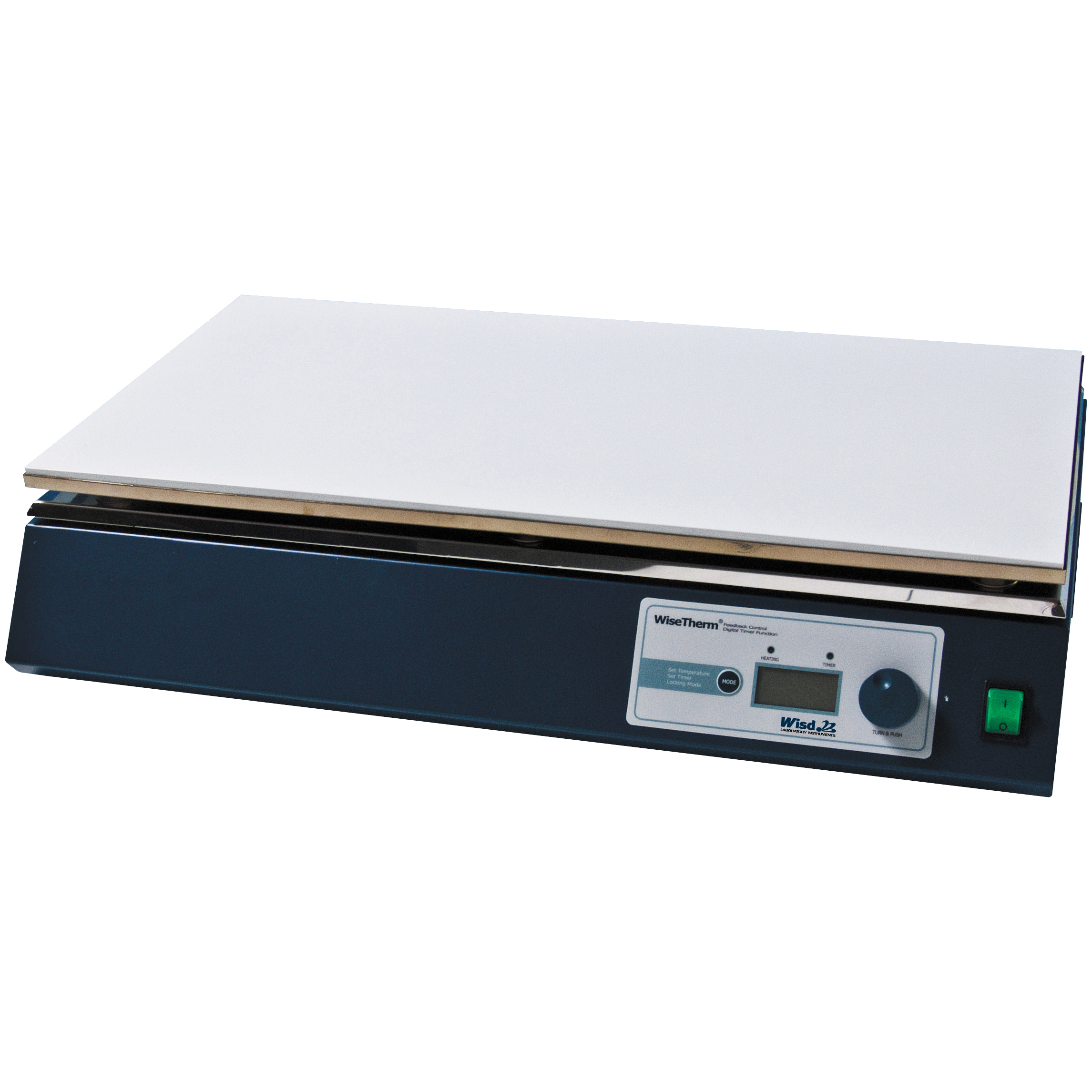

DAIHAN Large Digital Hotplate with Built-In Digital DIP Controller
The large digital hotplate is designed to provide precise and uniform heating for various laboratory applications. Featuring a digital interface, it allows accurate temperature control and monitoring, ensuring reproducibility in experiments and processes. The ceramic hotplate ensures efficient heat distribution, making it suitable for a wide range of scientific and research activities.
- Product Liability Insurance
- Max Temp: 350°C
- with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery Information, and Traceable Data Base System
- Superior Temperature Uniformity: Less than 10% on the Plate at Ambient Temperature
- Digital PID Controller
- Patented Jog-Shuttle Control System and Back-Light LCD
- Ceramic Coated Plate – Chemical/Acid Prevention
| HPLP-C-P | |
| Controller | Built-in Digital PID Controller |
| Plate Surface | Ceramic-coated |
| Plate Size | 310×620mm |
| Temp. Range & Accuracy | Max. 350℃, ±0.3℃ at Set Temperature |
| Temp. Resolution | 0.1 ℃-Display, 0.5 ℃-Contro |
| Temp. Uniformity | Specially Designed Heating Module : Temp. Difference 10% less |
| Heating Power/Consumption | 2 kW |
| Timer & Alarm | 99h 59m (with Continuous run.), Error status & Timer-end |
| Display | Digital LCD with Back-Light Function |
| Permissible Temp. & RH% | Ambient +5 ~ 50℃, 85% RH |
| Dimensions and Weight | 670×360×h150mm, 16 kg |
| Packing Size & Gross Weight | 750×430×h220mm, 18 kg |
| Electrical Reqts. | 1 Phase, AC 120 V, 60 Hz or AC 230 V, 50 / 60 Hz |
| Warranty | 2 Years |
