ULTIMUS Bottle Top Dispensers
Product Enquiry

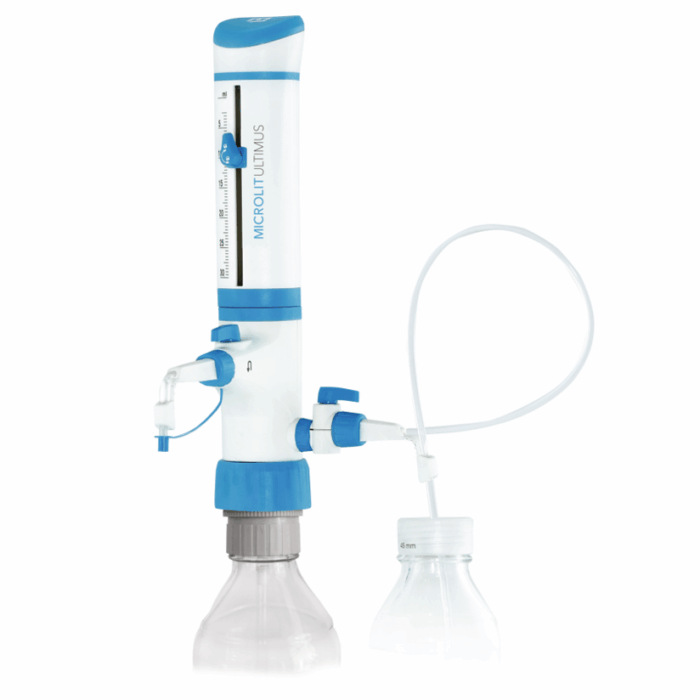

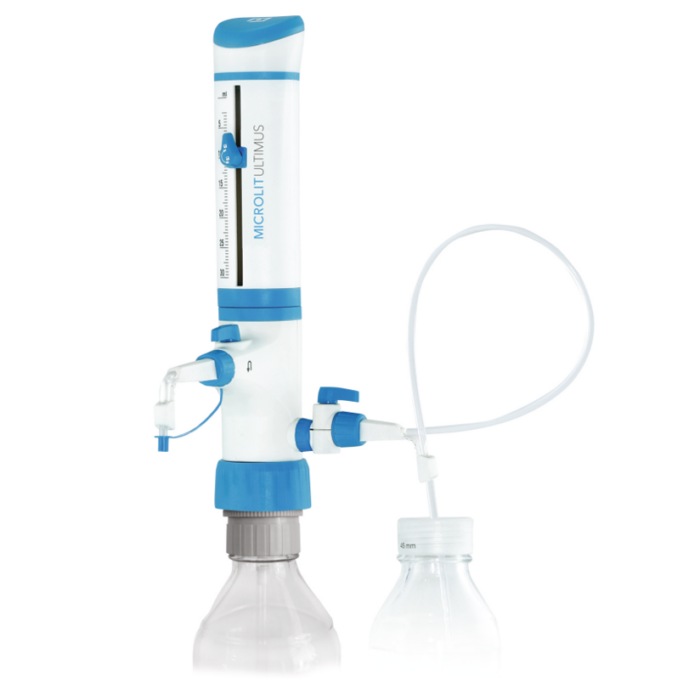

MICROLIT ULTIMUS is a Bottle Top Dispenser (BTD) that offers a sophisticated blend of features and functionality. Built by our in-house team of product design engineers, it uses Dual Inlet®, an award-winning technology patented in India, the EU and the US.
It offers 4 liquid handling modes – rinsing, dilution, refilling & purging without dismounting the dispenser.
MICROLIT ULTIMUS also features two product innovations: EasyKnob® and FlexiNozzle® that enhance its ease of use and flexibility.
Designed with ergonomics and intuitive handling in mind, it exhibits excellent chemical compatibility and helps in achieving precision with reliability in practical laboratory environments.
Standard Accessories (Included)
- Adapters: The instrument comes with five adapters that comfortably fit most laboratory reagent bottles. The available sizes are – 28 mm, 32 mm, 36 mm, 40 mm and 45 mm.
Extendable Tube: A Telescoping Tube that can be adjusted according to a variety of bottle sizes, is provided as an inside-the-box accessory.
You can view the chemical compatibility chart in the user manual under the downloads tab
Modes of Operation
- Standard Dispensing: Knob A – Open, Knob B – Closed
- In this mode, the dispenser dispenses the liquid normally into the receiver from the bottle it is mounted on.
- Purging: Knob A – Closed, Knob B – Closed
- In this mode, the liquid is re-circulated into the same bottle on which the dispenser is mounted. This process removes the air from the dispenser, without wasting any reagent.
- Dilution/Rinsing/Second Liquid Dispensing: Knob A – Open, Knob B – Open In this mode,
- the liquid from a second source can be dispensed into the receiver. The second liquid can be distilled water, thus allowing the user to rinse the instrument without dismounting it or dilute the reagent within the receiver.
- Bottle Refilling: Knob A – Closed, Knob B – Open
- In this mode, the liquid from a second source can be used to refill the bottle without dismounting the dispenser.
| Model No. | Vol. Range | Increment | Accuracy | CV | ||
| ± % | ± ml | ± % | ± ml | |||
| ULT-2.5 | 0.25-2.5 ml | 0.05 ml | 0.5 | 0.0125 | 0.2 | 0.005 |
| ULT-5 | 0.5-5 ml | 0.1 ml | 0.5 | 0.025 | 0.2 | 0.01 |
| ULT-10 | 1-10 ml | 0.2 ml | 0.5 | 0.05 | 0.1 | 0.01 |
| ULT-30 | 2.5-30 ml | 0.5 ml | 0.5 | 0.15 | 0.1 | 0.03 |
| ULT-60 | 5-60 ml | 1.0 ml | 0.5 | 0.3 | 0.1 | 0.06 |
| ULT-100 | 10-100 ml | 2.0 ml | 0.5 | 0.5 | 0.1 | 0.1 |
| Volume | 0.25-2.5ml, 0.5-5ml, 1-10ml, 2.5-30ml, 5-60ml, 10-100ml |
|---|
