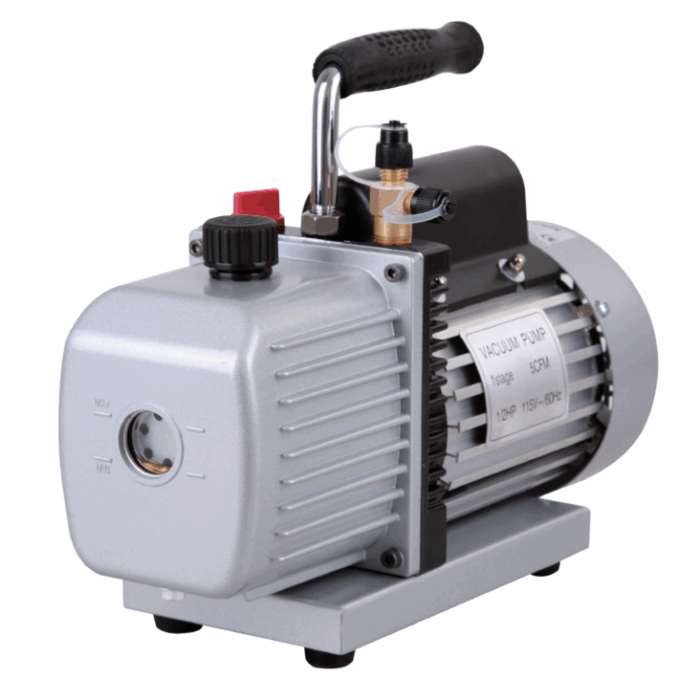

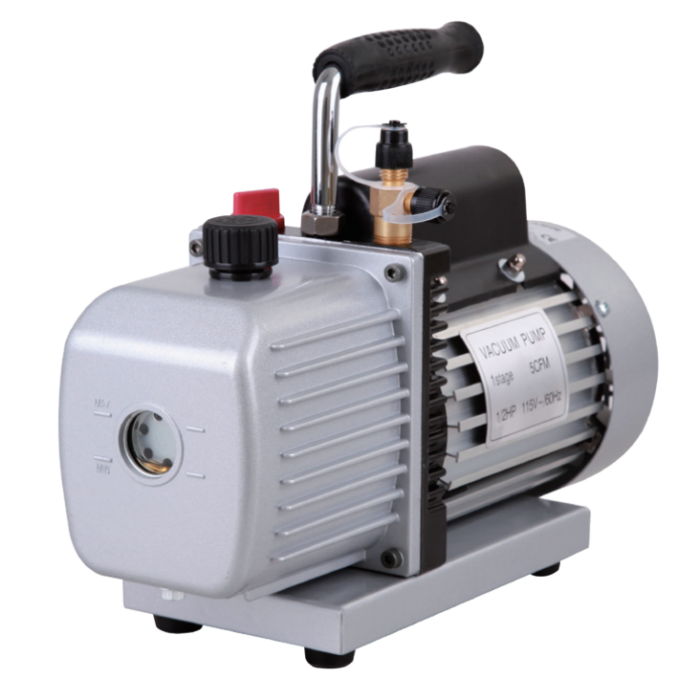

Tanker 150 Rotary Vane Vacuum Pump

Instruction

Rotary Vane Vacuum Pump Features

• High vacuum, high flow rate
  Tanker pumps are high-flow-rate and high vacuum driven by rotary vane that can reach up to 10-1 torr. Suitable for experiments require medium to high flow rate and vacuum capacity.

• Quiet and low vibration
  Tanker pumps feature low noise level, low vibration and long product life.
  Overheat protection

• All Tanker pumps are equipped with overheat protection device that shuts down when overheated and resumes once cooled down, making the pumps safer and long-lasting.


Rotary Vane Vacuum Pump International Certificate

• CE certification


Rotary Vane Vacuum Pump International Applications

• Vacuum filtration

• Vacuum drying / oven / defoaming

• Various vacuum application

Rotary Vane Vacuum Pump International Ordering Information


Product Part Number                          Product
187150-22                          Tanker 150, Rotary Vane Vacuum Pump AC220V, 50Hz

Specification

• Tanker 150 (220V, 50Hz)
• Max. power: 375W
• Max. current: 3A
• Max. vacuum: 1 x 10-1 Torr
• Max. flow: 127 L/min
• Hose barb: ID10
• Noise level: 52 dB
• Net weight: 13 Kg
• Dimension (LxMxH): 34 x 13 x 38 cm
