SKU: PL-700AL

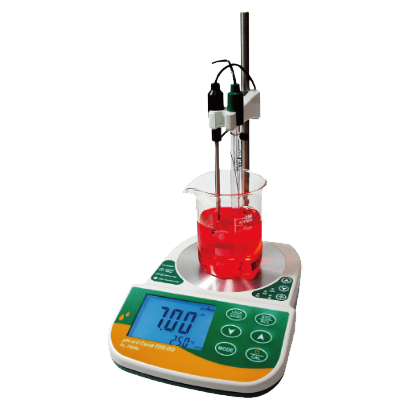

Benchtop Meter. pH/MV/Conductivity/TDS/Salt/DO/O2/Temp
| Sales Units (ea) |
| 1/ea |
Available on Backorder
Categories: Bench Top MetersSKU: PL-700AL
Product Enquiry
pH / MV / Conductivity / TDS / Salt / DO / O2 / Temperature Bench-Top Meter.
Pack includes pH electrode, DO Probe, Temperature Probe, Standard Solution, AC/DC adaptor, Electrode Holder, Electrolyte, USB software and connection cable
Features:
- Microprocessor based design, rugged housing with splash proof keyboard.
- The large backlight LCD displays pH or ORP or Conductivity or DO and Temperature simultaneously.
- Automatic Temperature Compensation(ATC), Manual Salinity(MSC) and Altitude(MAC) Compensation.
- Memory function stores and recalls up to 150 points. MAX/MIN and data Lock. Degree °C/°F are switchable.
- The TDS value is determined by multiplying a conductivity reading by a known ratio in the range of 0.50 to 1.00.
- Output data for capturing on PC directly via USB.
Specifications:
| pH | ORP | Conductivity | TDS | |
| Range | -2.00~16.00 pH | -1999 ~ -200 mV -199.9 ~ 499.9mV 500 ~ 2000mV |
0.0~ 199.9µS 200~ 1999 µS 2.00~ 19.99 mS 20.0~ 100.0 mS@25°C |
0.0~131.9 ppm 132~1319 ppm 1.32-13.19 ppt 13.2~66.0 ppt |
| Accuracy | ±0.01 + 1 digit | ±0.2+ 1 digit | ±2% FS | ±2% FS |
| Resolution | 0.01 pH | 0.1/1 mV | 0.1/1µS/0.01/0.1 mS | 0.1/1ppm/0.01/0.1ppt |
| Compensation | ATC: 0~100°C | ATC: 0~60°C | ATC: 0~60°C | |
| Salt | DO | O2 | Temp | |
| Range | 0.0~99.9 ppm 100~999 ppm 1.00~9.99 ppt 10.0~50.0 ppt |
0~20.00 mg/L 0~20.00 ppm |
0~200.0% | 0~ 110°C |
| Accuracy | ±2% FS | ±0.2+ 1 digit | ±2% FS | ±0.2+ 1 digit |
| Resolution | 0.1/1ppm/0.01/0.1ppt | 0.01 mg/L | 0.10% | 0.1°C |
| Compensation | ATC: 0~60°C | ATC: 0~50°C MSC: 0~50 ppt MAC: 0-20000ft |
| Power | 9V DC (AC Adaptor) |
| Dimensions | 103 x 145 x 32 mm without electrode holder |
| Weight | 700g (meter only) |
Accessories for Complete Kit:
| pH glass electrode |
| Conductivity cell |
| DO Probe |
| Temp. Probe |
| Membrane Cap x 2 pcs |
| Electrolyte x 20ml |
| Standard Solution |
| Electrode Holder |
| Software and USB cable |
| DC/AC adaptor |
| Instruction Manual |
| Gift Box |
| Testing Parameters | Conductivity, DO, mV, O2, PH, Salt, TDS, Temp |
|---|
