SKU: HS-A-Parent

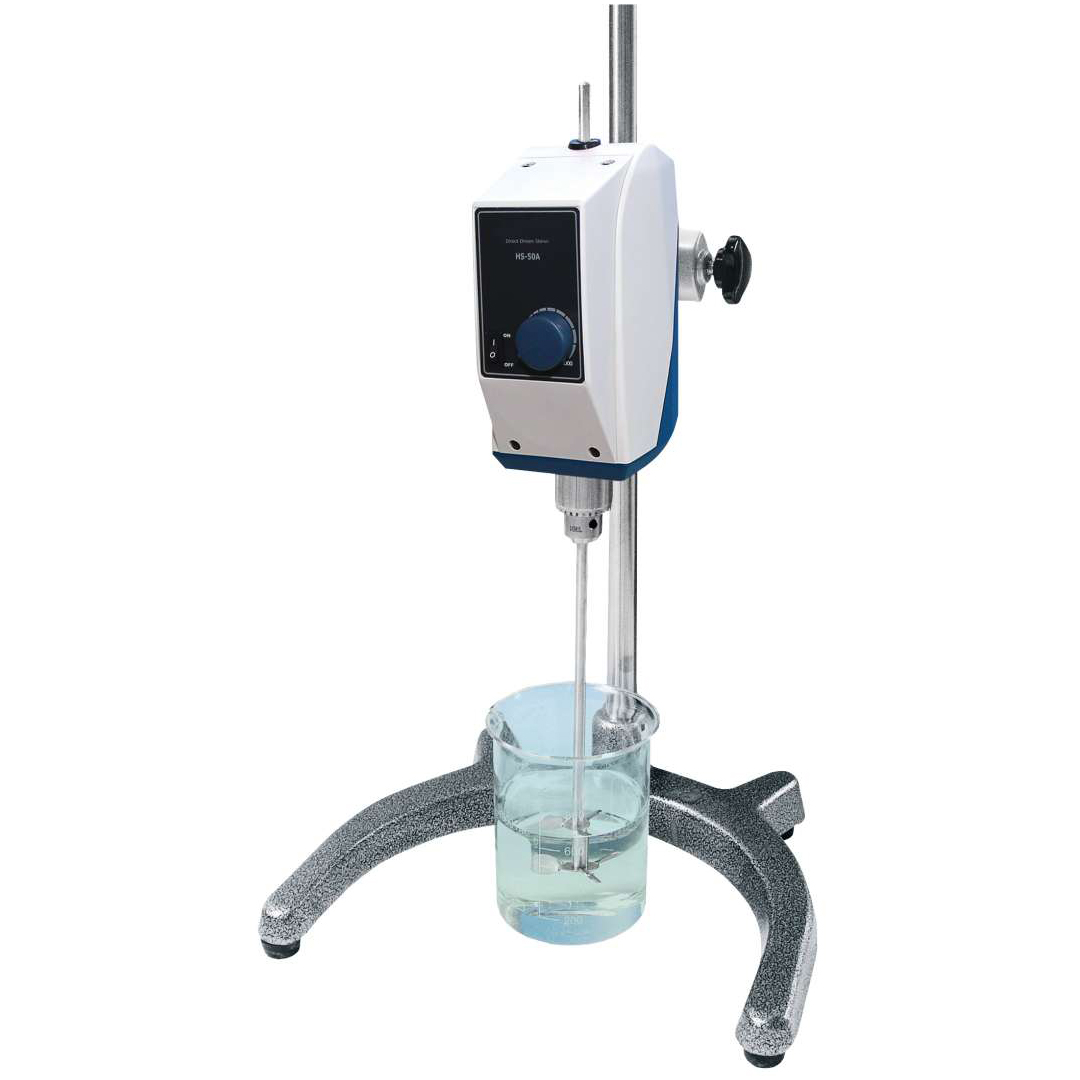

Overhead Stirrers High-Speed. Analog
Categories: Overhead StirrersSKU: HS-A-Parent
Product Enquiry
- CE Certified
- PL(Product Liability) Insurance
- Ensure Minimize RPM Fluctuation: Very Stable Stirring Speed(RPM) Performance
- with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
- Push-Through” Shafts(Φ8mm or Less); Ideal for Raising or Lowering of the Stir-Shafts without Moving the Motor Head – “Adjustable Height of Shaft”
- Easy-to-use Dial for Speed Setting
- Smooth Start and Change of the Stirring Speed
Set includes: Stirrer Unit, Stainless Steel Impeller, Clamp, & Safety Stand
| Option A. HS-50A | Option B. HS-120A | |
| Stirring Capacity | Max. 10 Lit (H2O) | Max. 20 Lit (H2O) |
| Maximum Viscosity / Torque | 5,000 mPas / 85 Ncm | 10,000 mPas / 145 Ncm |
| Speed Range & Motor | 200 ~ 3,000 rpm, Direct Driven DC Motor | |
| Motor Rating (Input / Output) | 83 / 75 W | 130 / 120 W |
| Controller / Safety Device | Analog Phase Controller / Over Heat Protector for motor | |
| Chuck Grip Capa. Φmm | dia Φ3~10mm Shafts | |
| “Push-Through” Shafts | dia Φ8mm or Less | |
| Permissible Temp. & Humidity | 0 ~ 40℃, 80% | |
| Material | ABS and Aluminum | |
| Dimension & Weight | 90×145×h180mm, 4.5 kg | 90×145×h180mm, 5.3 kg |
| Packing Size & Gross Weight | 320×300×h180mm, 5 kg | 320×300×h180mm, 8 kg |
| Power Consumption | 85 W | 130 W |
| Electrical Reqts. | AC 230 V, 50 / 60 Hz | |
