SKU: ME10-7-10

Midi plus-1 Horizontal Electrophoresis System

Categories: SKU: ME10-7-10

Our Midi series have been designed for routine horizontal gel electrophoresis with wide degrees of versatility. All of our gel tanks are made from injection moulded construction for durable and leak proof environment. Varieties of special combs are available to maximise your sample size.

Midi plus-1 includes 10x7cm and 10x10cm gel tray to allow 100 samples per gel to be resolved. Ideal for those routinely check medium numbers of samples over short to medium gel run lengths.

  • Low buffer consumption
  • Single molded tank
  • Two tray options available(ME7-7-10, ME10-7-10)
  • Easy sample loading
  • Multi-channel pipette compatibility
  • Great indications for gel making and running
  • No tape, clamps or springs needed

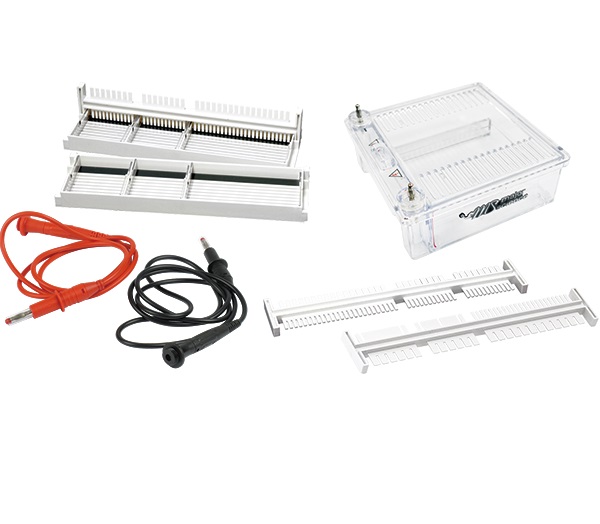

ME10-7-10 is offered as a complete system for the user to cast, and run electrophoresis, including:

  • 1 x Electrophoresis tank & lid
  • 1 x ME10-UV7 (10x7cm UV tray)
  • 1 x ME10-UV10 (10x10cm UV tray)
  • 2 x ME10-16-1 (16 sample combs, 1mm thick)
  • 1 x ME10-UVDAM (UV tray dams, 2pcs)
  • 1 x ME10-LG (Loading guides (Set))
  • 1 x Black & red electrophoresis cable
Cat. No. ME10-7-10
Dimension (WxLxH) 8.7″x4.9″x3.5″ (220x125x90mm)
Gel Dimension (WxL) 3.9″x2.8″ (100x70mm)
3.9″x3.9″ (100x100mm)
Maximum Sample 50 for 3.9″x2.8″ (100x70mm) Tray(2×25 sample combs)
100 for 3.9″x3.9″ (100x100mm) Tray(4×25 sample combs)
Buffer Volume 0.08gal (300ml)
Construction Injection molded construction
Durable, leak proof environment for complete safety and long life
Cassette Type Electrode Inexpensive, easy to replace
Made of 99.99% corrosion resistant pure platinum
Electrical Safety Lid can only be fastened in one way
Upon lid removal, power is disconnected from buffer chamber
Rapid Casting Gel Use casting dams
