LN2 Dry Shipper Dewars
Product Enquiry
CryoCarrier series is a dry shipper container. It is designed for biology, livestock breeding, research, and medical fields and enables biological samples, straws, cryovials, or blood bags to transport below-150℃ the environment.
There is liquid nitrogen absorbent materials placed in the inner tank, which avoids the risk of outflow of liquid nitrogen.
The CryoCarrier dry shipper meets the IATA and protects your valuable samples in safe conditions for both users and transporters during transportation.

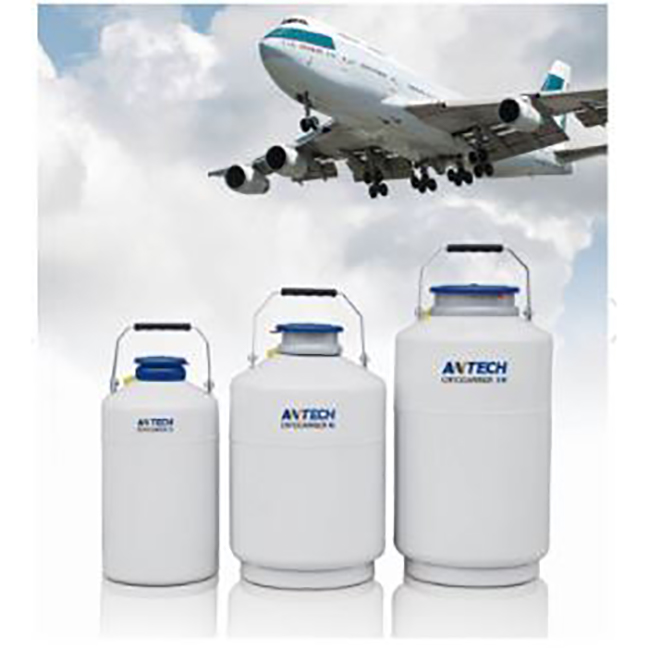

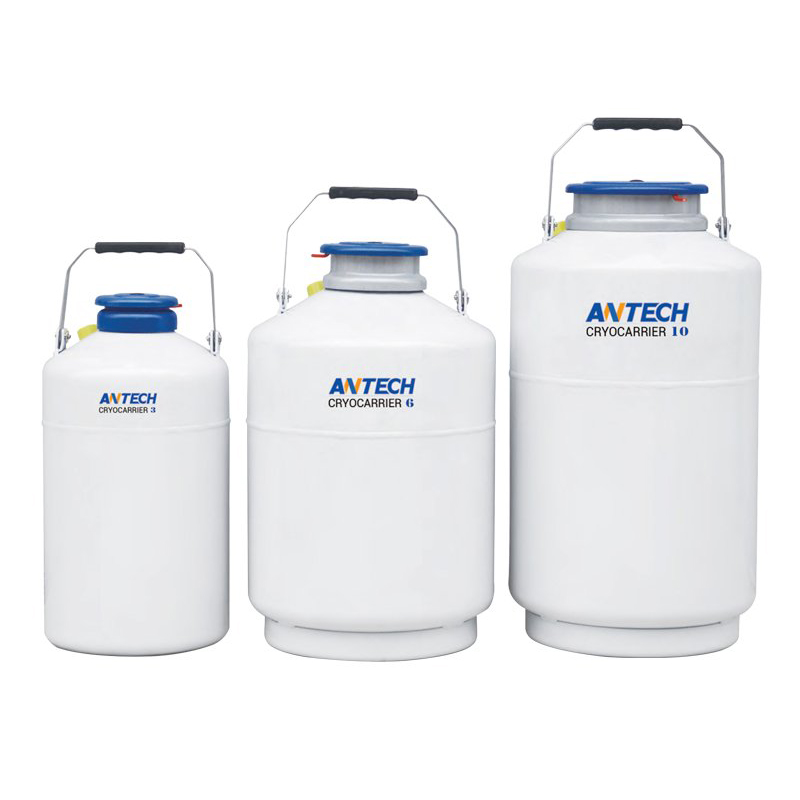

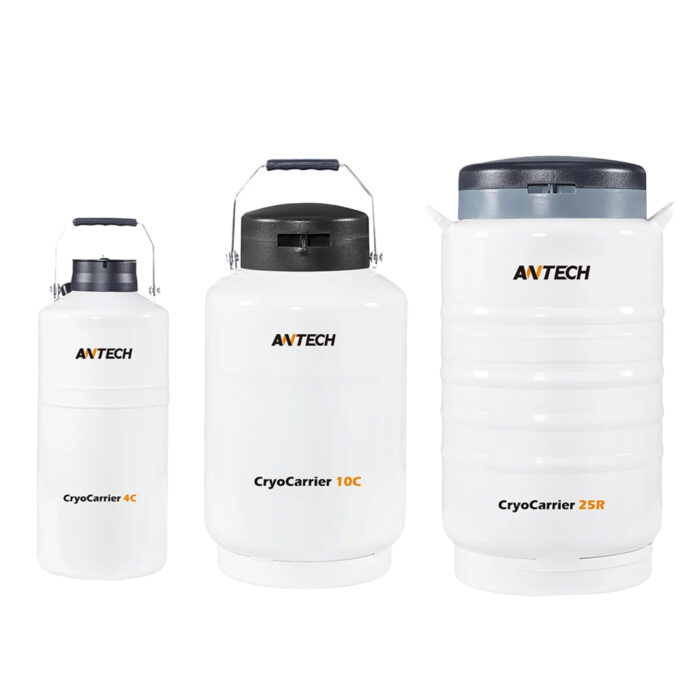

CryoCarrier Series, Dry-shipper
Key Features
Vapor phase cryogenic storage
Robust and durable aluminum construction
Lockable lids
No spillage of liquid nitrogen
Available for biological samples straws, cryovials or blood bags
3 years vacuum warranty
Advantages
Reliable absorption materials, rapid absorption of liquid Nitrogen
Meet the standard of IATA (The International Transport Association)
Excellent products construction and superior vacuum performance to ensure the maximum storage time
Unique stainless steel screen construction ensures samples storage space clean
Liquid level monitor optional
|
Model
|
CryoCarrier 3 (A) CryoCarrier 3L (B) |
CryoCarrier 6 (C) | CryoCarrier 8 (D) | CryoCarrier 10L (E) CryoCarrier 10R (F) |
CryoCarrier 15R (G) | CryoCarrier 25L (H) CryoCarrier 25R (I) |
|
| Maxium Storage Capacity | |||||||
| Straws | Number of Canister | 1 | 1 | 1 | 1 | —— | 1 |
| Number of Straws (0.5ml) | 132/214 | 374 | 374 | 854 | —— | 3536 | |
| Number of Straws (0.25ml) | 298/472 | 837 | 837 | 1940 | —— | 7840 | |
| Vials | No. of Rack | —— | —— | —— | 1 | 1 | 1 |
| Layer of Rack | —— | —— | —— | 4 | 3 | 5 | |
| 1.2ml/2ml Vials | —— | —— | —— | 100 | 300 | 500 | |
| Blood Bags (25ml) | No. of Rack | —— | —— | —— | 1 | 1 | 1 |
| Layer of Rack | —— | —— | —— | 1 | 1 | 2 | |
| Number of 25ml bags | —— | —— | —— | 3 | 15 | 30 | |
| Blood Bags (50ml) | No. of Rack | —— | —— | —— | 1 | 1 | 1 |
| Layer of Rack | —— | —— | —— | 1 | 1 | 1 | |
| Number of 50ml bags | —— | —— | —— | 3 | 15 | 15 | |
| Performance | |||||||
| Capacity (L) | 1.3 | 2.9 | 3.2 | 3.4 | 6 | 9 | |
| Static Evaporation Rate (L/Day) | 0.16 | 0.2 | 0.22 | 0.43 | 1.5 | 0.89 | |
| Static holdover time with LN2 (Day) | 8 | 14 | 14 | 8 | 4 | 10 | |
| Unit Dimensions | |||||||
| Neck Diameter (mm) | 50 | 80 | 80 | 125 | 216 | 216 | |
| Overall Height (mm) | 435 | 487 | 509 | 555 | 555 | 678 | |
| External Diameter (mm) | 223 | 300 | 300 | 300 | 300 | 394 | |
| Canister Diameter (mm) | 38 | 63 | 63 | 97 | —— | 195 | |
| Canister Height (mm) | 120/276 | 120 | 120 | 120 | —— | 276 | |
| Weight Empty (KG) | 3.2 | 4.9 | 6.2 | 6.7 | 13 | 15
|
|
