SKU: CF-10

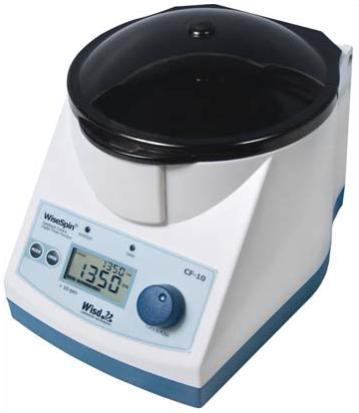

High Speed Micro Centrifuge 1000-13500rpm
Categories: Benchtop CentrifugesSKU: CF-10
Product Enquiry
Class-ⅠMedical Device(NIDS), Max. 13,500rpm, 12,225×g With MC Nylon Fixed Angle Rotor for 12×0.2-/0.5-/1.5-/2.0ml Tubes, Compact, Quiet, Safety Electronic Lid Lock System
- CE Certified
- PL(Product Liability) Insurance
- Patented Jog-Shuttle Control System and Digital LCD with Back-Light Function
- Included MC Nylon Fixed Angle Rotor for 1.5-/2.0ml×12 Tubes and 12×0.2-/0.5ml PCR
- Unbelievably Quiet Operation – Brushless DC motor
- High Performance – Digital Feedback Speed Control
- Useful Exclusive Spin Down Function
- Plasmid, DNA and RNA work, Protein work, and Miniprep kit, Cell Culture, Cell Harvesting, Subcellular Separations, and many other Applications.
- Unnecessary Rotor Lid for Running and Reducing Noise (≤57dB at Max. RPM).
- Realize Extremely Compact Design with Exceptionally Small Footprint.
- Storage Function for the Set Values: RPM & Time.
- Locking Mode Supported for Experimental Safety (Input to Jog-Shuttle can be disabled).
- Safety System for Motor Error.
- Simple Operation for Repetitive use of ‘Spin Down’ Function.
| Model | CF-10 |
| RCF | 1,000~13,500 RPM , 12,225×g |
| Max. Capacity | 0.2-/0.5-/1.5-/2.0ml×12 Tubes |
| Rotor | MC Nylon Fixed Angle Rotor for 0.2-/0.5-/1.5-/2.0ml×12 Tubes |
| Drive System | Brushless DC motor, Direct drive |
| Noise Level | ≤57 dB |
| Acceleration & Braking Time | ≤15 sec (at Max. speed) |
| Cooling Device | Air Cooling System |
| Timer & Alarm | 99min 59sec (Continuous run), Error status & Timer-end |
| Display | Digital LCD with Back-Light Function |
| Controller | Digital Feedback Control with Jog-Shuttle Switch (Turn+Push) |
| Safety Circuit | Motor Error Detector, Electronic Safety Lid Lock System |
| Material | Lid-PC, Body-ABS, Rotor-PE |
| Dimension & Weight | 170×226×h183 mm, 2.3 kg |
| Packing Size & Gross Weight | 290×240×h220 mm, 5 kg |
| Power Consumption | 90W |
| Electric Reqts. | AC 230V, 50 / 60Hz |
