SKU: HB-96D
High Performance Dry Bath 2 place block capacity unit only
In Stock
Categories: Dry BathsSKU: HB-96D
Product Enquiry

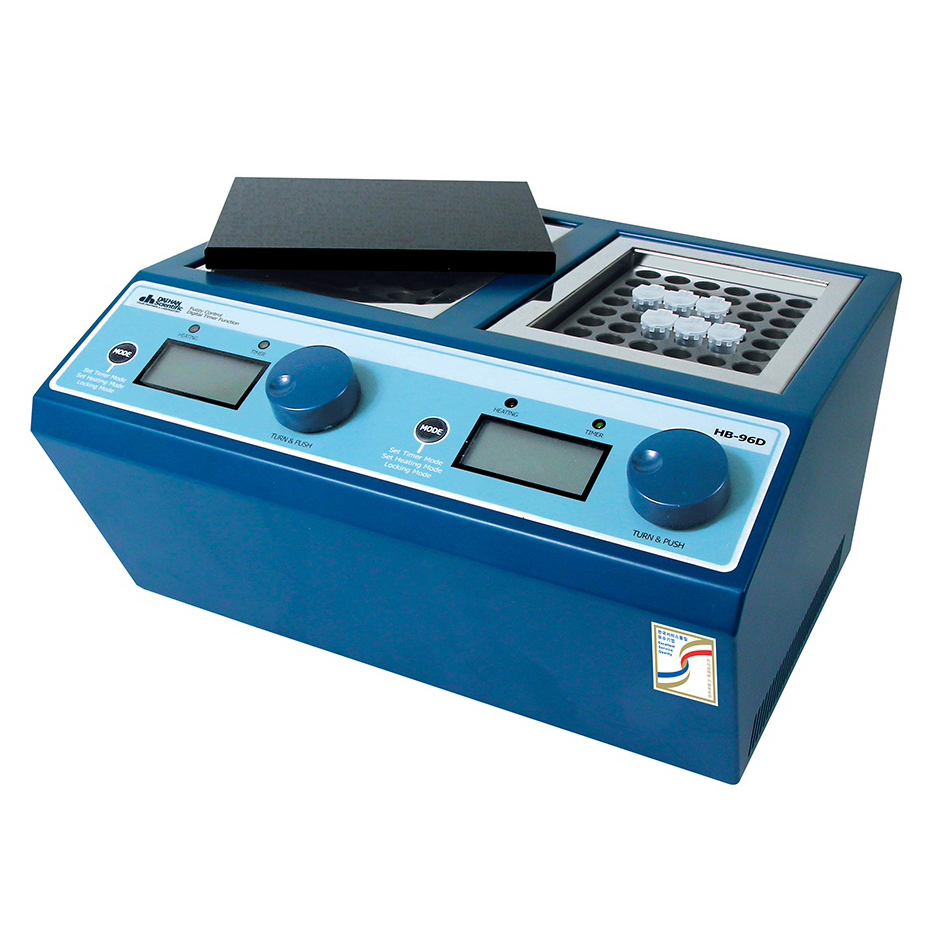

Dual-block system with digital fuzzy-logic temperature control
Engineered and manufactured in Korea, the DAIHAN HB-96D delivers research-grade precision for routine and demanding laboratory protocols. A patented Jog-Shuttle knob, dual digital fuzzy controller, and back-lit LCD make set-up intuitive, while two powerful 300 W moulded heaters ensure uniform, rapid heating across interchangeable anodised-aluminium blocks.
Key benefits
- Broad temperature range: Ambient +5 °C to 150 °C with outstanding accuracy (±0.1 °C @ 37 °C, ±0.2 °C @ 90 °C, ±0.4 °C @ 135 °C)
- Fast ramp-up: ≈ 5 °C min⁻¹ via dual 300 W heaters and PT100 sensor
- Dual control & dual block: Program each block independently for parallel assays
- Certified & traceable: CE marked, supplied with Product Liability (PL) Insurance and serial-number certificate for full traceability
- Built-in safety: Over-temperature & over-current cut-offs, sensor-error detection, alarm on timer end or fault
- 99 h 59 min timer + delay: Store temperature & time set-points for repeat runs
- Locking mode: Prevents accidental parameter changes during critical experiments
- 2-year warranty and block-extraction tongs included for easy handling
Technical specifications
| Parameter | HB-96D |
|---|---|
| Controller | Dual digital fuzzy logic with Jog-Shuttle dial |
| Block size (each) | 90 × 120 × h60 mm |
| Usable blocks | 2 at a time (interchangeable) |
| Temperature range | Ambient +5 °C to 150 °C |
| Accuracy | ±0.1 °C @ 37 °C; ±0.2 °C @ 90 °C; ±0.4 °C @ 135 °C |
| Heating rate | ≈ 5 °C min⁻¹ |
| Timer | 1 min – 99 h 59 min (operation + delay) |
| Display | Back-lit LCD (°C or °F) |
| Materials | Block: anodised aluminium; Housing: #304 stainless + powder-coated steel |
| Dimensions (W × D × H) | 285 × 250 × 155 mm (unit) |
| Shipping / gross weight | 400 × 270 × h200 mm, 6 kg |
| Power / consumption | 230 V 50/60 Hz, 600 W |
Typical applications
- PCR sample denaturation or enzyme digests
- Serum inactivation for virology & immunology labs
- General incubation of micro- and macro-tubes up to 50 mL
- Quality-control assays requiring precise, uniform dry heating
- Why choose the HB-96D for your lab?
Optimised for everyday reliability and high-precision incubation, the HB-96D pairs a rugged stainless-steel body with advanced fuzzy-logic electronics, ensuring consistent results run after run. Swap blocks in seconds to accommodate PCR tubes, micro-centrifuge vials or conical tubes without recalibration.
