SKU: 4980-Parent

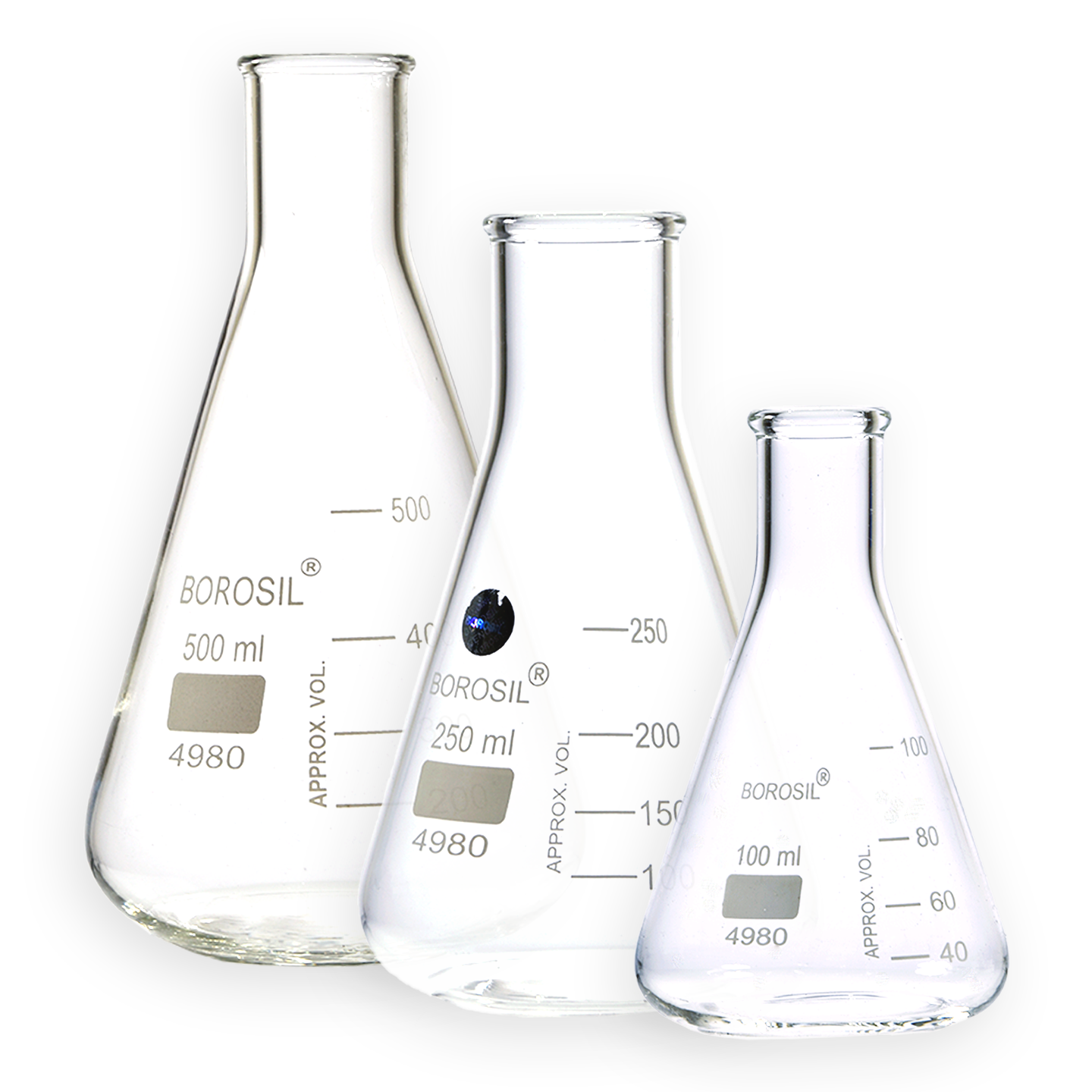

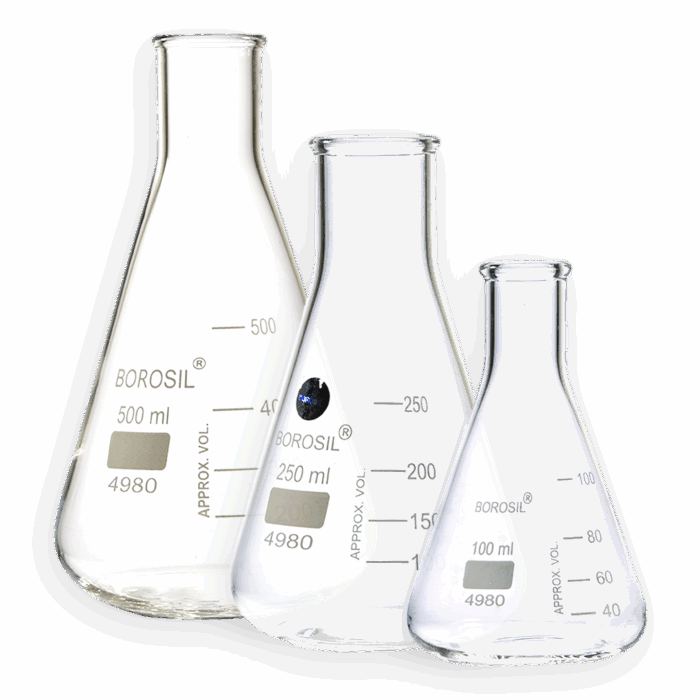

Erlenmeyer Flasks. Narrow Mouth. Glass
Categories: FlasksSKU: 4980-Parent
Product Enquiry
- Complies with IS 1381(Part I), DIN / ISO 1773
- Uniform wall thickness distribution makes these Flasks ideal for heating
- The conical form makes them suitable for mixing liquids
- The easy-to-read scale and large labeling field facilitate easy marking
| Product Code | Capacity ml | Graduation Interval | Approx O.D. x Height mm |
Approx Neck O.D. mm |
Pack |
| 4980009 | 25 | 10 & 25ml | 40 x 75 | 22 | 1 |
| 4980012 | 50 | 25 & 50ml | 51 x 90 | 22 | 1 |
| 4980016 | 100 | 40 – 100 every 20ml | 64 x 105 | 22 | 1 |
| 4980018 | 150* | 75 – 150 every 25ml | 72 x 124 | 28 | 1 |
| 4980021 | 250 | 100 – 250 every 50ml | 85 x 145 | 34 | 1 |
| 4980024 | 500 | 200 – 500 every 100ml | 105 x 180 | 38 | 1 |
| 4980029 | 1000 | 400 – 1000 every 200ml | 131 x 220 | 42 | 1 |
| 4980030 | 2000 | 800 – 2000 every 200ml | 166 x 280 | 52 | 1 |
| 4980033 | 5000 | 1500 – 5000 every 500ml | 220 x 365 | 50 | 1 |
*Not covered in standards
| Volume | 25ml, 50ml, 100ml, 150ml, 250ml, 500ml, 1000ml, 2000ml, 5000ml |
|---|
