SKU: DH.WHM121-Parent
Aluminium case Beaker Heating Mantles Basic Type
Available on Backorder
Categories: Heating MantlesSKU: DH.WHM121-Parent
Product Enquiry

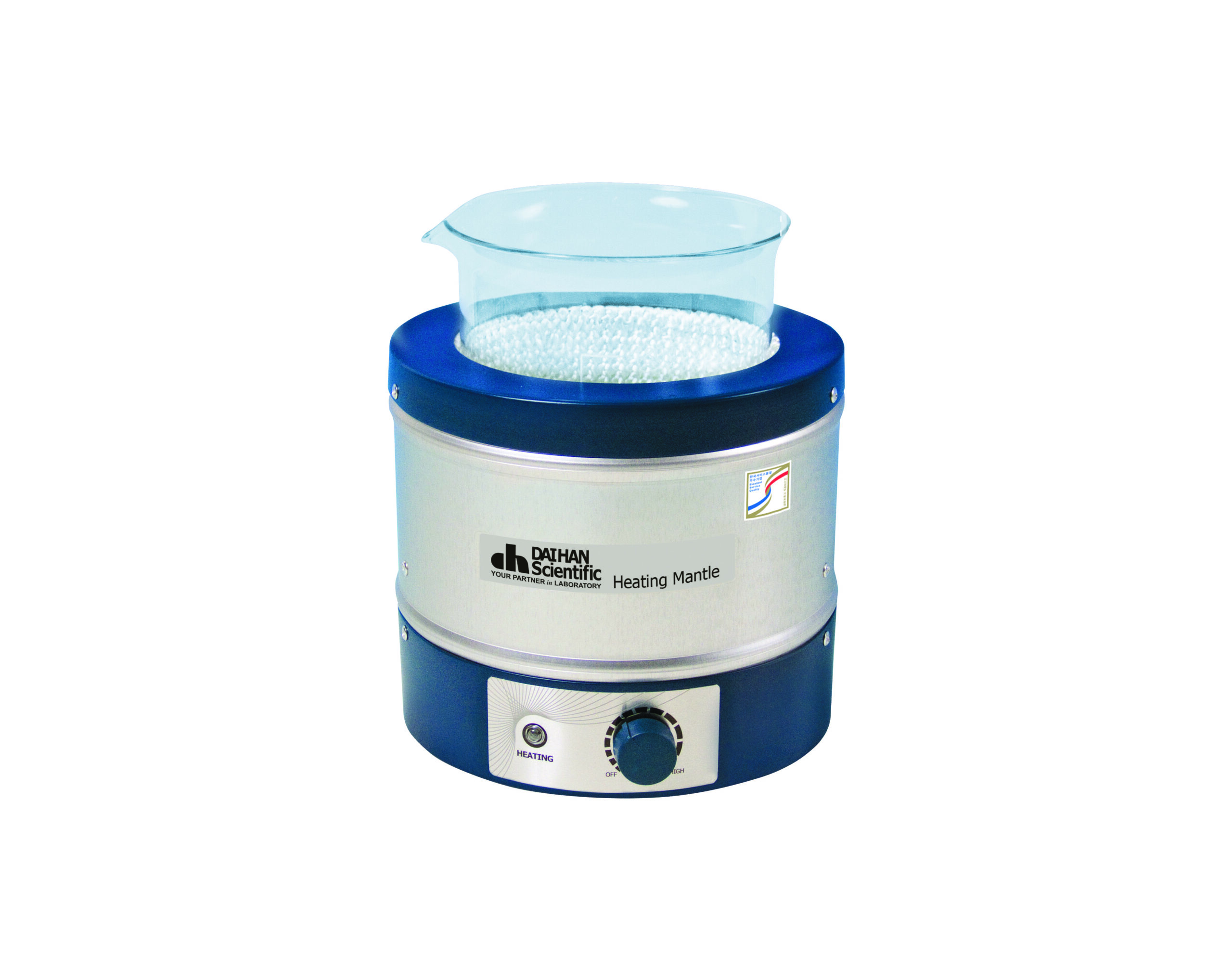

Aluminum-case Beaker Heating Mantle 450℃, 100~5,000ml With Built-in Temp Controller
- Ideal for all types of beakers
- with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
- Built-in Temp-Controller. Nickel-Chrome Heating Element “Coil-type”: Acid Resistant & Long Life Time.
| Code | Beakers, ml Dia. Φ mm |
Mantle | ||
| Watts (W) | Inside Depth | Outside Φ× h(mm) |
||
| DH.WHM12141 | 100ml, Φ50~52 | 80 W | 40 mm | Φ145×h140 |
| DH.WHM12142 | 250ml, Φ68~70 | 140 W | 65 mm | Φ145×h140 |
| DH.WHM12143 | 400ml, Φ79~81 | 240 W | 70 mm | Φ145×h140 |
| DH.WHM12144 | 600ml, Φ88~90 | 240 W | 75 mm | Φ145×h140 |
| DH.WHM12145 | 800ml, Φ98~100 | 300 W | 90 mm | Φ190×h165 |
| DH.WHM12146 | 1,000ml, Φ105~108 | 350 W | 90 mm | Φ190×h165 |
| DH.WHM12147 | 2,000ml, Φ130~132 | 450 W | 125 mm | Φ199×h190 |
| DH.WHM12148 | 3,000ml, Φ151~153 | 550 W | 160 mm | Φ270×h235 |
| DH.WHM121481 | 4,000ml, Φ160~162 | 700 W | 160 mm | Φ270×h235 |
| DH.WHM12149 | 5,000ml, Φ169~171 | 800 W | 160 mm | Φ270×h235 |
| Volume | 100ml, 250ml, 400ml, 600ml, 800ml, 1000ml, 2000ml, 3000ml, 4000ml, 5000ml |
|---|
