HA 4dp Analytical High Precision Scale. Extendable Screen
In Stock
Product Enquiry
FEATURES

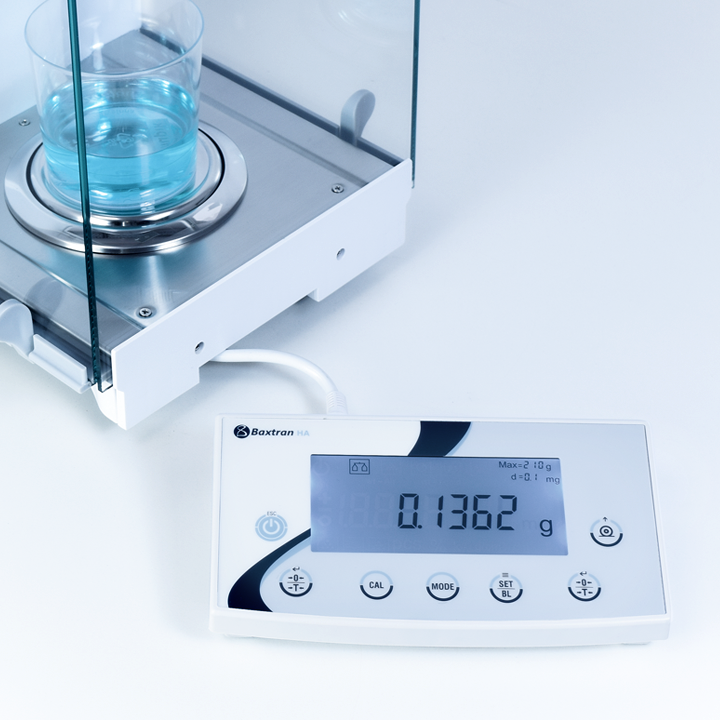

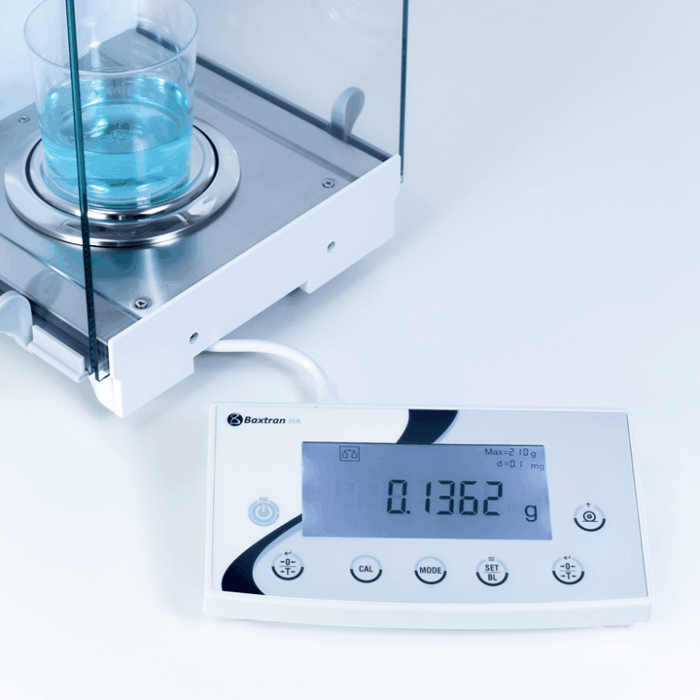

- LCD Display with white backlighting separated from the scale body.
- 7 digits of 15 mm in display with messages as a way to guide the user.
- 7 keys of direct functions.
- Scale with transparent glass protector.
- Adjustable feet. They allow a greater stability, giving more precise results.
- Bubble level.
- Time of answer: 4-5 seconds.
- Multiple units of measure: g, ct, lb, oz.
- Under weighing.
- Available models with internal calibration (261371 and 261372).
- RS232.
- 4 type of data sending to PC:
- Continue: data sending in continue mode.
- Ald: data sending to PC in stabilized weight.
- Req: data sending to PC by user request.
- Manual data sending.
- Weighing system with electromagnetic compensation block.
FUNCTIONS
- Piece counting
- Determination of percentage
- Control of weight
- Statistics
- Total
HA series vs the HZ series
The HA Series is our premium analytical balance, built around a larger and substantially heavier dedicated weighing platform than the more compact HZ Series. Its construction is focused on mechanical stability and isolation of the sensitive weighing system, with the controls separated from the main balance to further minimise operator-induced vibration. Although its nominal 0.1 mg readability is similar to the HZ, the HA provides a more substantial analytical weighing platform for demanding laboratory applications where stable, repeatable measurements are the priority.
| Code # | Calibration | Capacity (g) | Readout (g) | Repeatability | Linearity (+/-) | Pan dimensions (mm) | Calibration Weight* | Packing dimensions (mm) | Packing weight (kg) |
| 261373 | External | 120 | 0,0001 | 0,1 mg | 0,2 mg | Ø90 | 50g (E2) | 620x560x470 | 12 |
| 261374 | External | 220 | 0,0001 | 0,1 mg | 0,2 mg | Ø90 | 100g (E2) | 620x560x470 | 12 |
| 261371 | Internal | 120 | 0,0001 | 0,1 mg | 0,2 mg | Ø90 | 50g (E2) | 620x560x470 | 12 |
| 261372 | Internal | 220 | 0,0001 | 0,1 mg | 0,2 mg | Ø90 | 100g (E2) | 620x560x470 | 12 |
*External calibration weights are not included with scale. These can be purchased separately.
| Weight | N/A |
|---|---|
| Balance Parameters | 4dp, Electromagnetic weighing system, External Calibration, Internal Calibration, PC & Printer Connectivity, Percent Weighing, Piece Counting, Statistics, Totalization, Under Weighing |
| Weight/Capacity | 120g, 220g |
All products come with a 2-year warranty from the date of delivery, covering manufacturing and material defects under normal use conditions.
The warranty does not cover damage resulting from wear and tear, improper use or storage, inadequate maintenance, or unauthorised modifications.
