SKU: YD-90
Wax Block Repair Device
Available on Backorder
SKU: YD-90
Product Enquiry

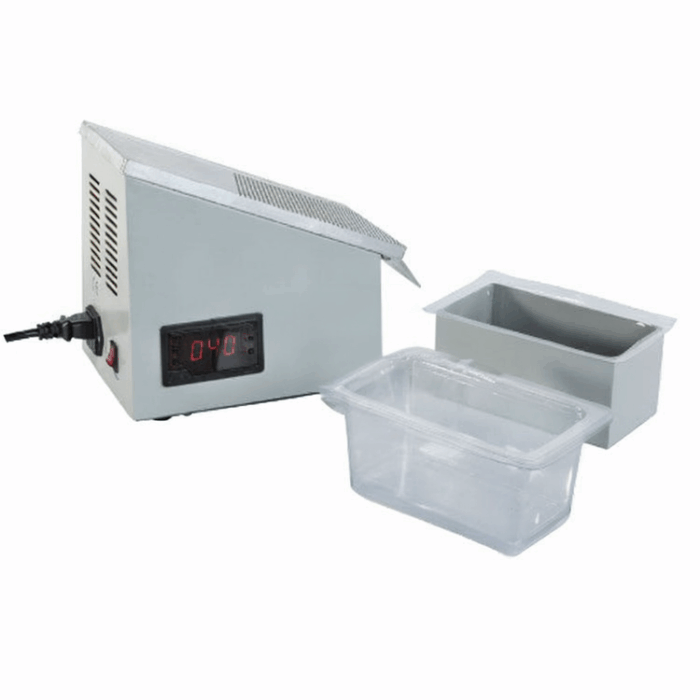

Wax Block Trimmer – Precision Paraffin Block Edge Shaper for Histology Labs
Product Overview
Enhance your laboratory workflow with the Wax Block Trimmer, specifically designed for trimming paraffin-embedded tissue blocks with ease, precision, and cleanliness. Ideal for pathology, histology, and research laboratories, this compact and efficient wax trimmer ensures reliable temperature control and minimal wax residue, making it a must-have for specimen preparation.
Key Features
- Durable Construction
Built with specially processed aluminum, the unit offers excellent resistance to fading, deformation, and wear—ideal for long-term laboratory use. - Accurate Temperature Control
Equipped with a precision temperature controller, the wax trimmer maintains constant heating at two preset levels (90°C and 100°C) with an accuracy of ±2°C, ensuring safe and efficient paraffin trimming. - Smart Design for Clean Operation
Features a sloped groove operation panel that channels melted wax into a left-side groove and through a drain hole into a collection container, preventing buildup on the trimming surface. - Energy-Efficient Heating System
With a heating power of only 150W, it provides rapid and uniform heating while conserving energy.
Technical Specifications
| Parameter | Details |
|---|---|
| Temperature Settings | Dual levels: 90°C / 100°C |
| Temperature Accuracy | ±2°C |
| Heating Power | 150W |
| Working Voltage | AC 220V, 50Hz |
| Ambient Temperature Range | 5°C – 40°C |
| Relative Humidity | ≤80% |
| Working Table Area | 240 × 120 mm |
| Product Dimensions | 180 × 200 × 120 mm |
Applications
- Pathology and Histology Labs
- Medical Colleges and Research Facilities
- Diagnostic and Teaching Hospitals
- Paraffin Tissue Block Preparation
