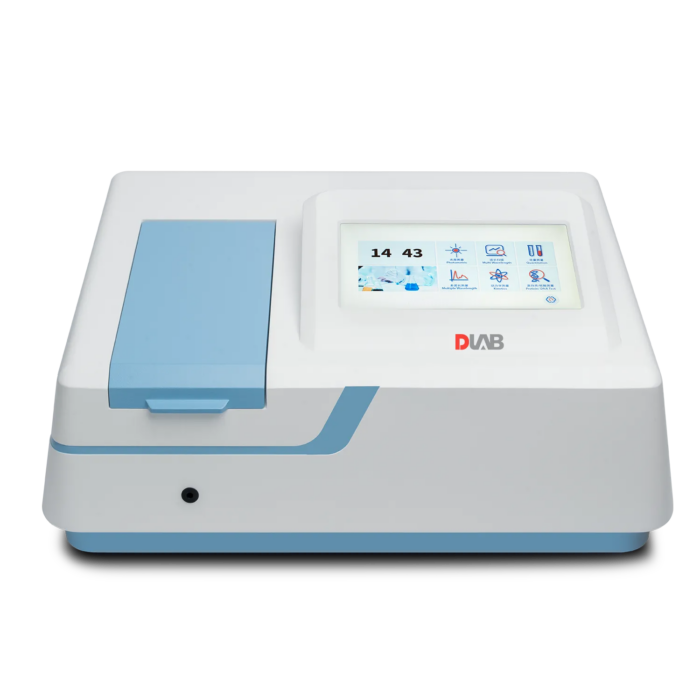

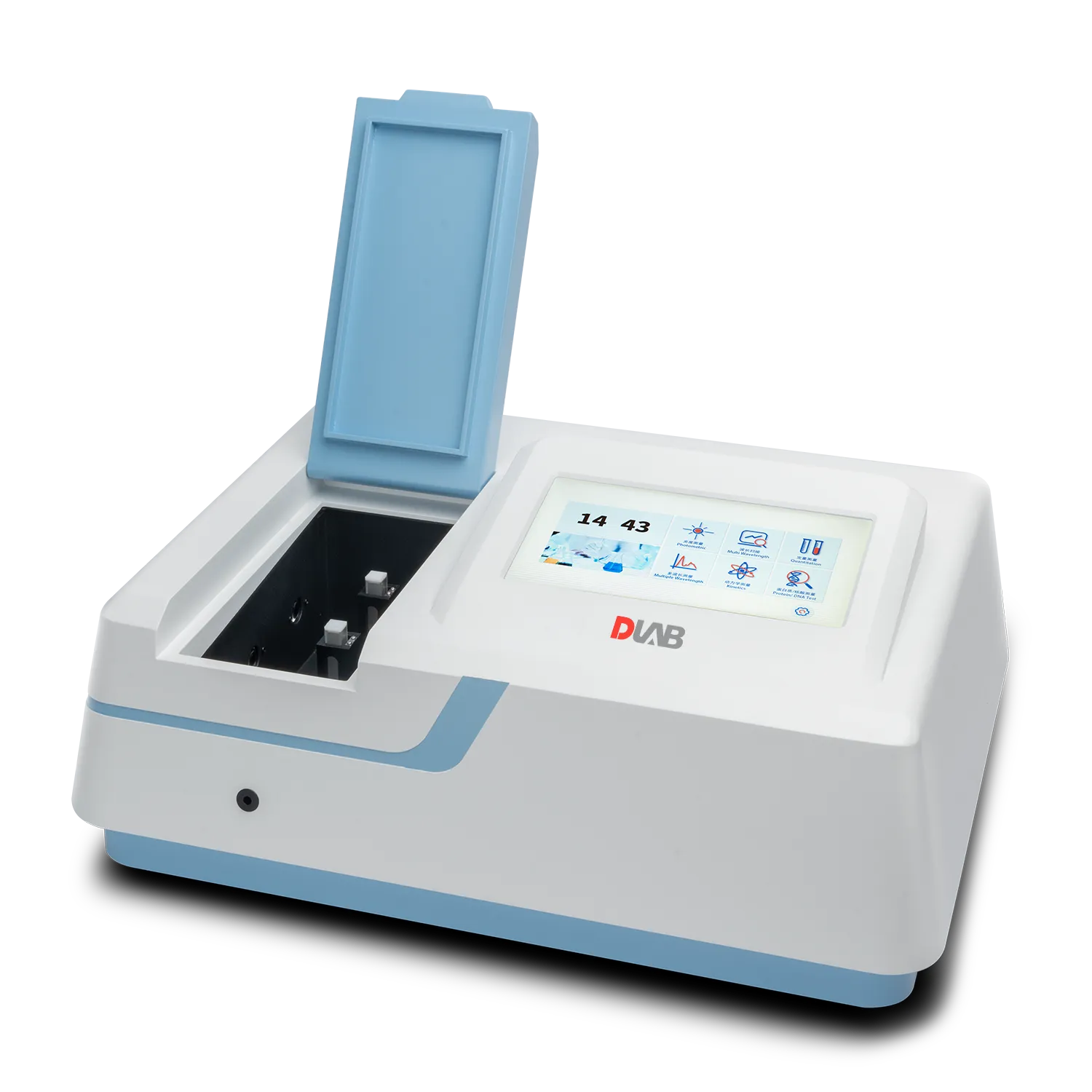

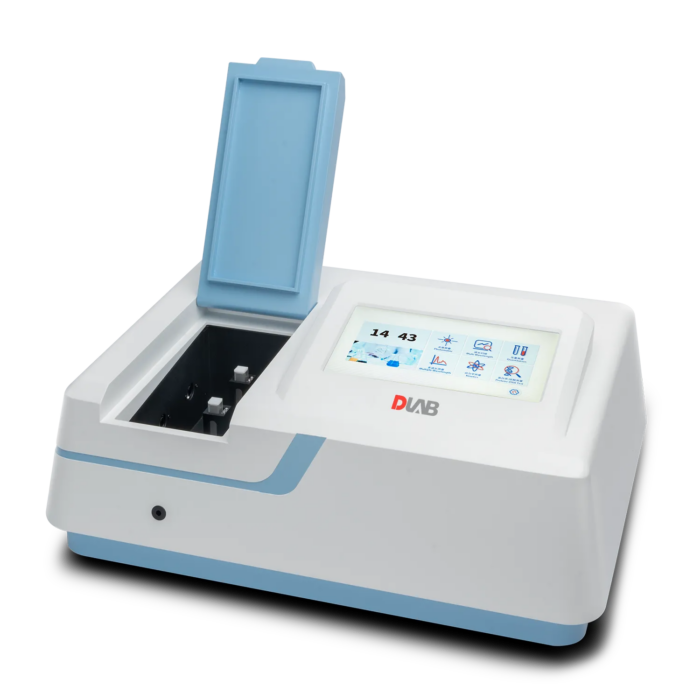

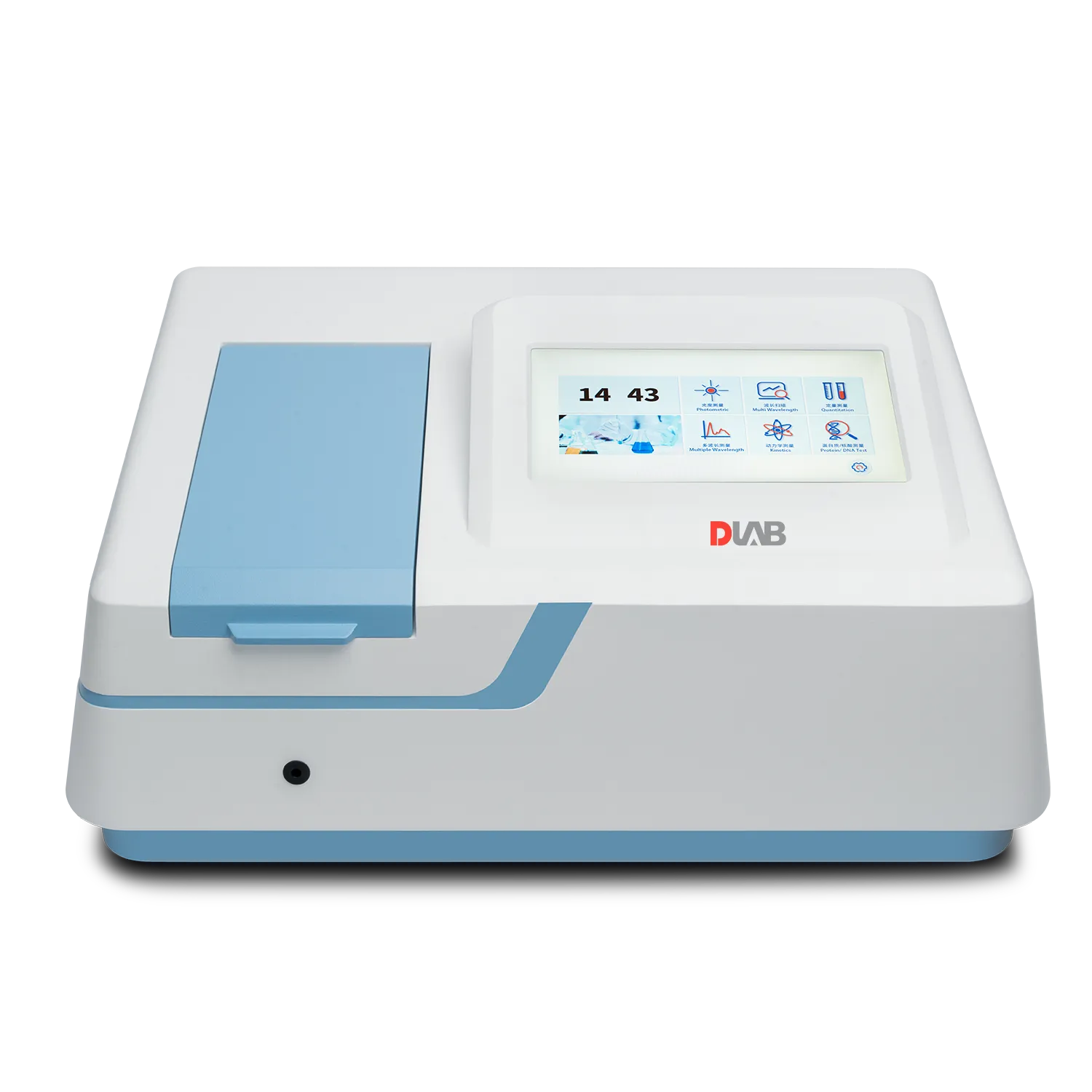

Single Beam UV-Vis Spectrophotometer

The SP-UV2102 is a high-performance single-beam UV-Visible spectrophotometer, designed for precision, reliability, and ease of use in routine and advanced laboratory applications.

Features/functions:

• Photometric measurement
• Quantitative analysis
• Spectrum scanning
• Kinetics
• DNA/protein analysis
• Multi-wavelength testing
• 10.1-inch colour touchscreen (1024×600 resolution
• Power-off data retention
• Standard USB port for data export
• Low-noise wavelength drive mechanism
• High photometric accuracy and long-term stability

When connected to a PC, the included software provides extended functionality aligned with GLP/GMP compliance, including multi-level user management, audit trails, data traceability, and report generation.

Specifications:

• Optical System: Single beam with holographic grating monochromator
• Wavelength Range: 190–1100 nm
• Wavelength Accuracy: ±0.1 nm at 656.1 nm, ±0.3 nm full range
• Wavelength Repeatability: ≤0.1 nm
• Spectral Bandwidth: 2.0 nm
• Light Source: Tungsten lamp (HYBEC, Japan) and Deuterium lamp (Milaras)
• Photometric Range: -0.3 to 3.0 A, 0–9999C
• Photometric Accuracy: ±0.002 A (0–0.5 A); ±0.003 A (0.5–1.0 A)
• Photometric Repeatability: ±0.001 A (0–0.5 A); ±0.0015 A (0.5–1.0 A)
• Stray Light: ≤0.05%T @ 220 nm and 360 nm
• Stability: ≤0.001 A/h @ 500 nm (after 1 hr warm-up)
• Sample Holder: 4-position, for 10 mm cuvettes
• Display: 10.1″ colour touchscreen (1024×600 resolution)
• Output Ports: USB and printer port
• Power Supply: 230 V, 50 Hz, 120 W
• Dimensions: 570 × 440 × 210 mm
• Weight: 20 kg
