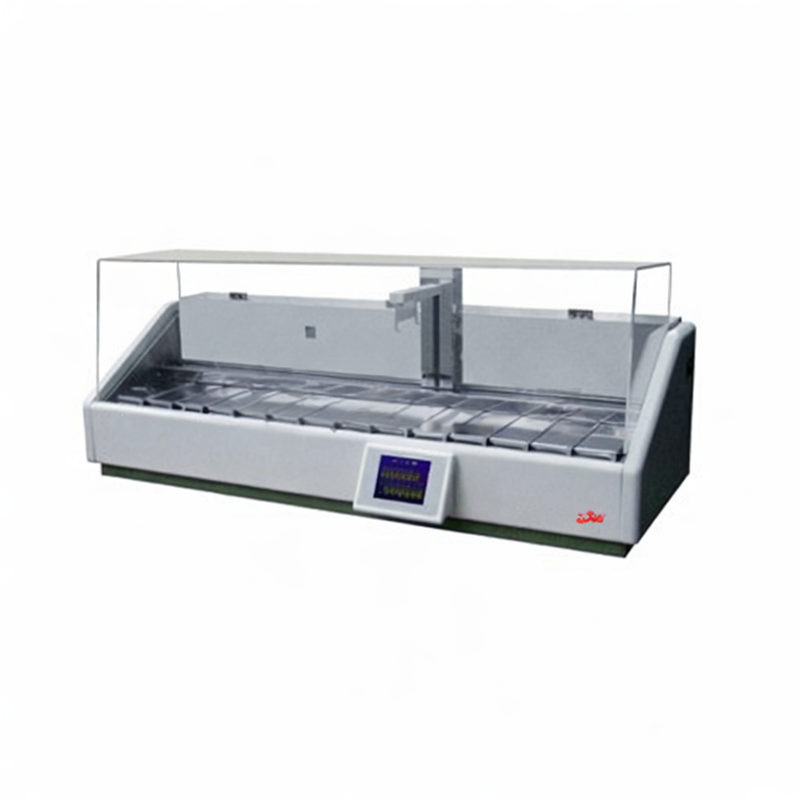

YD-14P1.5 Bench-Top Linear Closed Tissue Processor
Streamline your tissue preparation with the YD-14P1.5 Linear Closed Tissue Processor—a cutting-edge benchtop system designed for efficient, automated dehydration and paraffin infiltration of biological samples. Ideal for histopathology laboratories, medical research facilities, and diagnostic centers, this compact unit features 14 programmable stations and a closed reagent environment that ensures sample safety, minimizes odor, and prevents solvent evaporation.
With dual-basket capability and an intuitive touchscreen control panel, the YD-14P1.5 enables labs to process up to 150 specimens simultaneously with unmatched accuracy and flexibility.
Key Performance Features
- Automated Tissue Processing
Fully automatic system for dehydration and paraffin infiltration—programmable up to 6 separate user-defined protocols. - Compact & Closed System Design
All reagent and paraffin containers are sealed, reducing solvent evaporation and maintaining a clean, odor-free lab environment. An integrated ion filter helps eliminate fumes and air pollution. - Dual-Basket Capability
Supports two sample baskets with independent programming, enabling parallel processing of up to 150 tissue samples (75 per basket). - User-Friendly Touchscreen Interface
Easily set station times, temperatures, agitation cycles, and more. Supports daily, weekend, and weekly automation with precise microprocessor control. - Precise Temperature Control
Paraffin temperature is adjustable from 50°C to 75°C (in 1°C increments) to match the needs of various tissue types. - Agitation and Drain Functions
Built-in basket agitation (4 shakes every 20 minutes) improves reagent penetration. Drain times are adjustable from 0 to 99 seconds. - Programmable Delayed Start
Flexible delayed start timer up to 99 hours and 99 minutes, ensuring workflow adaptability for overnight or weekend processing. - Reliable Power Handling
Compatible with optional UPS system for power outage protection.
Technical Specifications
| Specification | Details |
|---|---|
| Number of Stations | 14 total (10 reagent + 4 paraffin) |
| Sample Capacity | 150 samples total (2 baskets × 75 each) |
| Station Volume | 1500 ml per station |
| Infiltration Time per Station | 1 min to 99 h 59 min |
| Paraffin Temp Range | 50°C to 75°C (adjustable in 1°C steps) |
| Agitation Cycle | 4 times every 20 minutes |
| Drain Time | Adjustable: 0 to 99 seconds |
| Programmable Protocols | 6 memory slots |
| Delayed Start Timer | 0 to 99 hours 99 minutes |
| Touchscreen Interface | Yes |
| Dimensions (W×D×H) | 140 × 50 × 55 cm |
| Gross Weight | 142 kg |
| Power Supply | 220V/50Hz or 110V/60Hz |
| Max Power Draw | 1000 VA |
| UPS Compatible | Yes (optional accessory) |
Standard Accessories
- 1 × Power Wire
- 2 × Fuses
Applications
Perfect for clinical pathology labs, university histology departments, biomedical research, and anatomical pathology, the YD-14P1.5 processor ensures safe, efficient, and reproducible tissue preparation with minimal manual intervention. Its compact benchtop size makes it ideal for space-conscious labs seeking high-volume processing capabilities.
