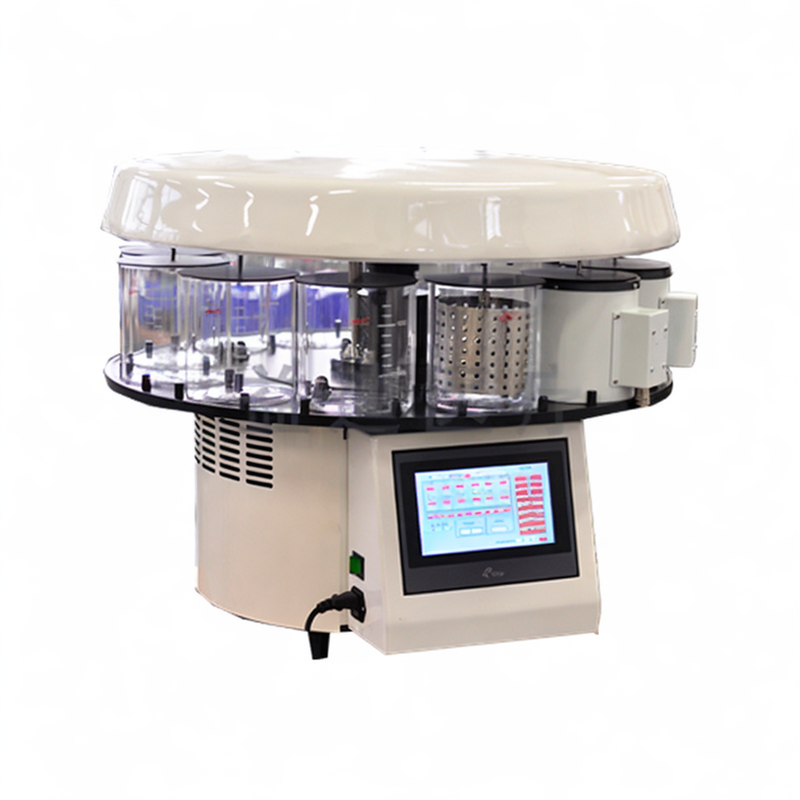

YD-2900 Automatic Tissue Processor – Microcomputer-Controlled Pathology Sample Dehydration System
The YD-2900 Automatic Tissue Processor is a high-performance carousel-type histology processor engineered for the fixation, dehydration, transparency, and paraffin infiltration of tissue samples. Ideal for human, animal, and plant specimens, this system is essential in pathology labs, medical research institutes, veterinary facilities, and university teaching departments.
With intelligent microcomputer control, a large touchscreen interface, advanced safety features, and optional dual-basket capacity, the YD-2900 tissue processor ensures maximum efficiency, precision, and sample integrity.
Key Product Features
- Fully Automated Microcomputer Control
The entire process is managed by a reliable microprocessor, ensuring easy operation, workflow stability, and precise parameter management. - 12-Station Carousel System
Includes 10 reagent stations and 2 paraffin wax baths (expandable to 3), each with programmable infiltration time and precise temperature control. - Touchscreen Display with Real-Time Monitoring
A large, user-friendly interface provides step-by-step visibility into all processing stages. - High-Capacity, Dual-Basket Compatibility
Comes with metal tissue baskets (standard: 1 basket for 100 cassettes, optional: 2 baskets for 200 cassettes). Continuous agitation every 4 minutes ensures thorough reagent contact. - Advanced Safety & User Access Control
Features electrical and obstacle protection, an electric lock system, and password-secured access to restrict unauthorized use. - Wax Bath Heating Precision
Teflon-coated paraffin jars offer non-stick, uniform heating, with a temperature range of 45°C–85°C, maintaining tissue integrity during infiltration. - Flexible Programming
Up to 8 fully editable programs, with delay start and infiltration time settings of up to 99 hours 59 minutes per station. Programs can be modified mid-run for real-time adaptability. - Battery Backup
Up to 4 hours of emergency battery power (excluding wax baths) ensures continued operation during power outages. - Closed System with Fume Protection
Equipped with an active charcoal filtration hood and fume exhaust fan, ensuring a safe, odor-free lab environment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Carousel, 12 Stations |
| Reagent Stations | 10 containers (2.3L each) |
| Wax Baths | 2 standard (1.8L each), optional 3 |
| Paraffin Temp. Range | 45°C – 85°C |
| Infiltration Time | Up to 99 h 59 min per station |
| Delay Start Time | Up to 99 h 59 min |
| Programs | 8 storable and editable |
| Vacuum Pressure | Max. 0.05 MPa (0.5 bar) |
| Basket Capacity | 1 standard (∮120×100mm or ∮120×80mm), max 100 cassettes (200 optional) |
| Agitation Interval | Every 4 minutes, 1-minute stir |
| Battery Backup | 4 hours (excluding wax baths) |
| Control Interface | Touchscreen, foil-protected keypad |
| Electrical Specs | 110/220V ±10%, 50/60Hz, 800W |
| Dimensions | 780 × 570 × 690 mm |
| Dry Weight | 80 kg |
Applications
- Hospital Pathology Departments
- Medical & Veterinary Colleges
- Biological & Botanical Research Labs
- Food Inspection & Safety Agencies
The YD-2900 delivers unmatched efficiency and reliability for labs requiring automated tissue processing, making it ideal for both routine diagnostics and research-grade applications.
Standard Accessories
- 1 × Tissue Basket
- 2 × Fuses
- 1 × Power Wire
Upgrade your lab’s tissue processing workflow with the YD-2900 Automatic Tissue Processor – combining technology, safety, and precision for optimal specimen handling.
Contact us today for a quote or demonstration.
