tabletop high-speed microcentrifuges

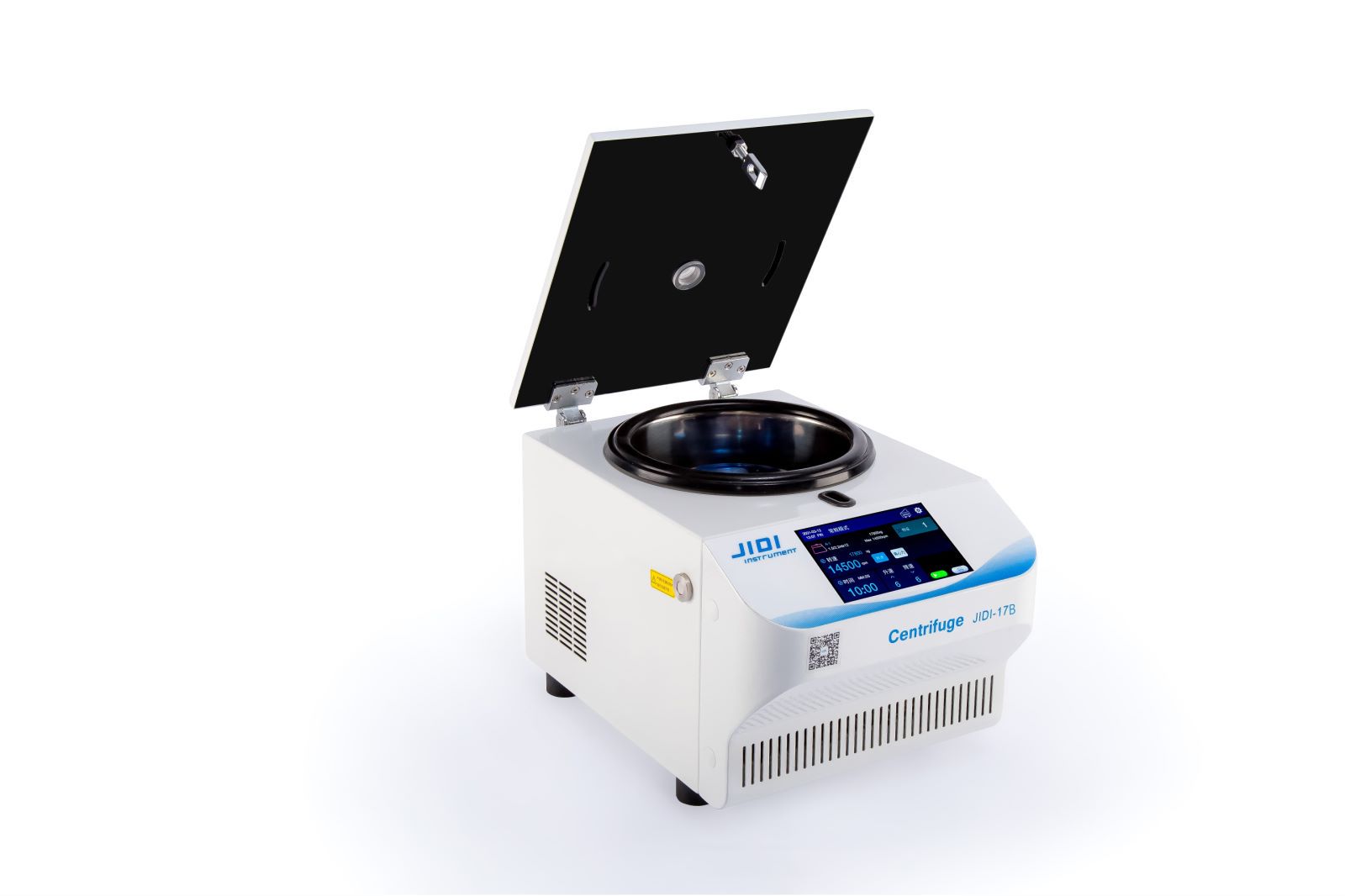

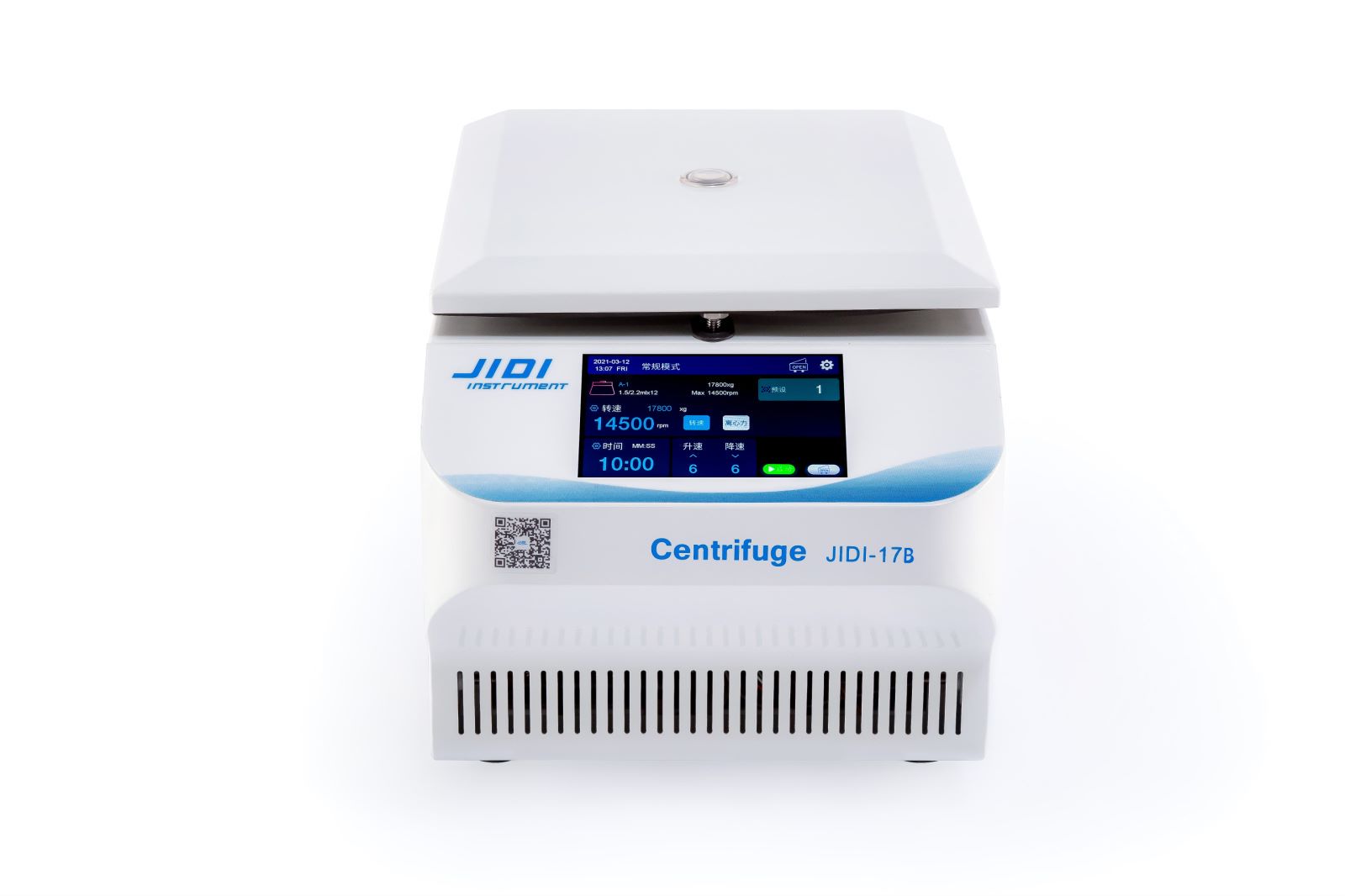

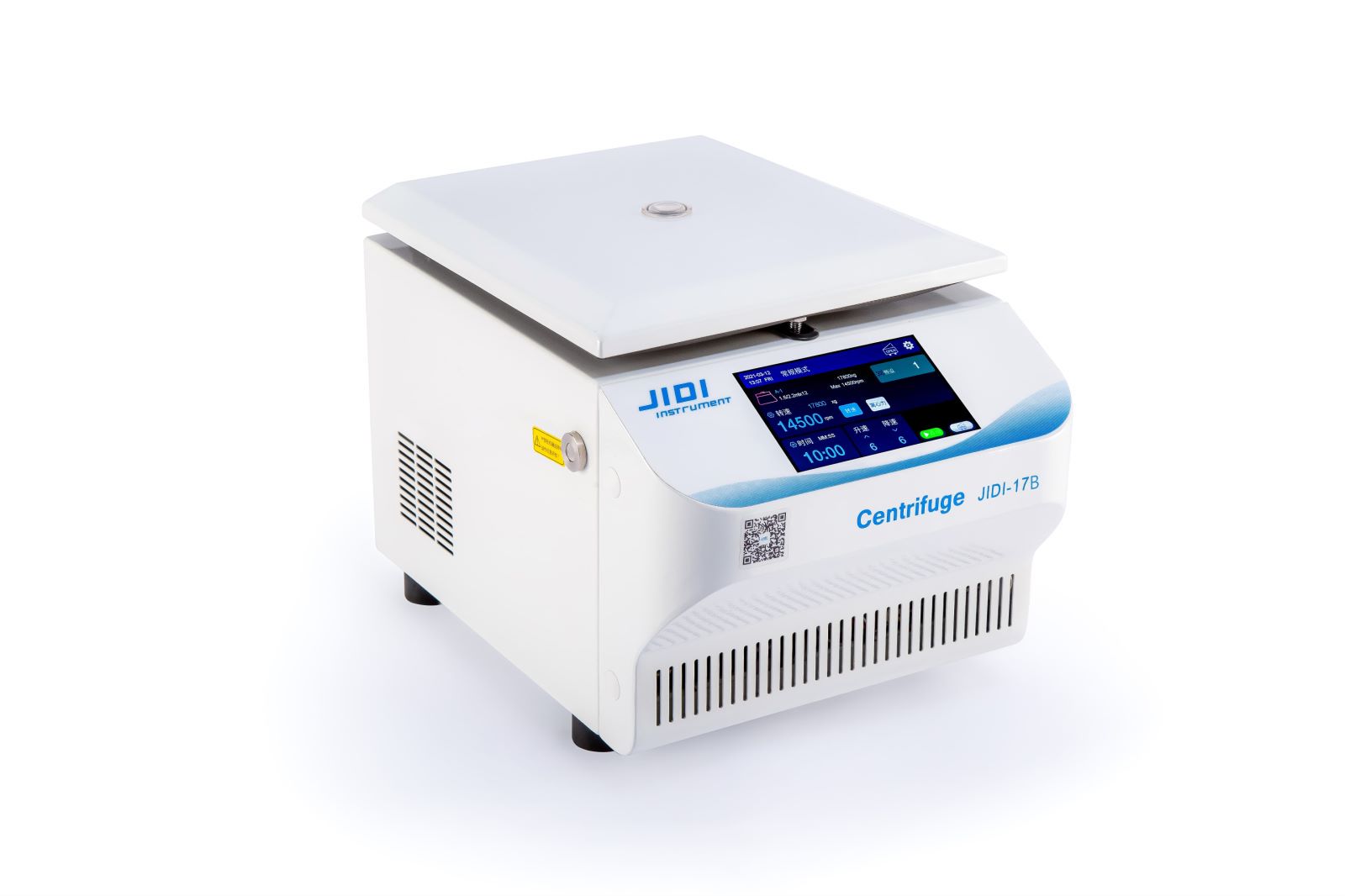

JIDI-17B Tabletop High-Speed Microcentrifuge

The JIDI-17B is a compact, high-speed tabletop microcentrifuge engineered for precise, efficient, and safe sample processing. Ideal for molecular biology, clinical diagnostics, and research labs, this centrifuge offers powerful performance with advanced intelligent control, ergonomic design, and industry-leading reliability.

---

Key Specifications

• Model: JIDI-17B
• Maximum Speed: 17,800 rpm
• Maximum RCF: 23,233 × g
• Timer Range:
• 0 – 99 min 59 sec
• 0 – 99 hr 59 min (switchable)
• Speed Accuracy: ±10 rpm
• Acceleration/Deceleration Modes: 0–9 levels
• Motor Type: Inverter-controlled centrifuge motor
• Power Supply: AC 220V, 50Hz, 10A
• Noise Level: ≤55 dB
• Weight (excluding rotor): 15 kg
• Dimensions (L × W × H): 400 × 270 × 250 mm

---

Key Features

5-Inch Touchscreen Intelligent Interface

• Displays real-time data including:
• Speed, runtime, rotor specs, max RCF/speed
• Acceleration/deceleration levels
• Door status, current date, and time
• Dual-mode readout: switch between speed (RPM) and centrifugal force (RCF) with ease.

Real-Time Monitoring & Safety

• Live rotor speed detection prevents unsafe operation.
• If abnormalities occur, an alert window appears and locks controls to ensure user safety.
• Automatically logs each centrifugation cycle for full traceability.

Simultaneous Parameter Visualization

• View speed, RCF, and temperature change curves on one screen.
• Simplifies experimental tracking and improves result clarity.

Customizable User Settings

• Adjust screen brightness, button sound, language (English/Chinese), timer style, and auto-lid opening to your preference.

Enhanced Safety & Ergonomic Build

• Safety protections include:
• Door lid lock
• Overspeed and over-temperature protection
• Imbalance detection
• Auto fault alarms
• Ergonomic and modern aesthetic design ensures both comfort and functionality.

Advanced Engineering for Performance & Stability

• Patented triangular motor fixing system with triple shock absorption.
• Minimizes vibration, improves motor alignment, and ensures ultra-smooth, quiet operation.
• Centrifuge chamber made from corrosion-resistant stainless steel, with a high-durability protective coating.

Innovative Observation Tube Port

• Reinforced threaded convex-concave port solves traditional detachment and leakage issues.
• Enhances safety and sealing performance during operation.

---

Rotor Accessories

Custom rotor sizes available upon request.
