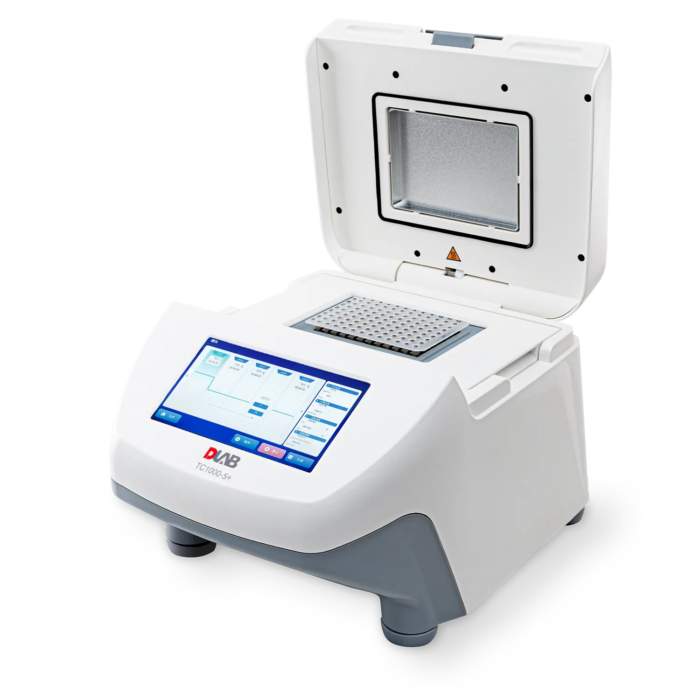

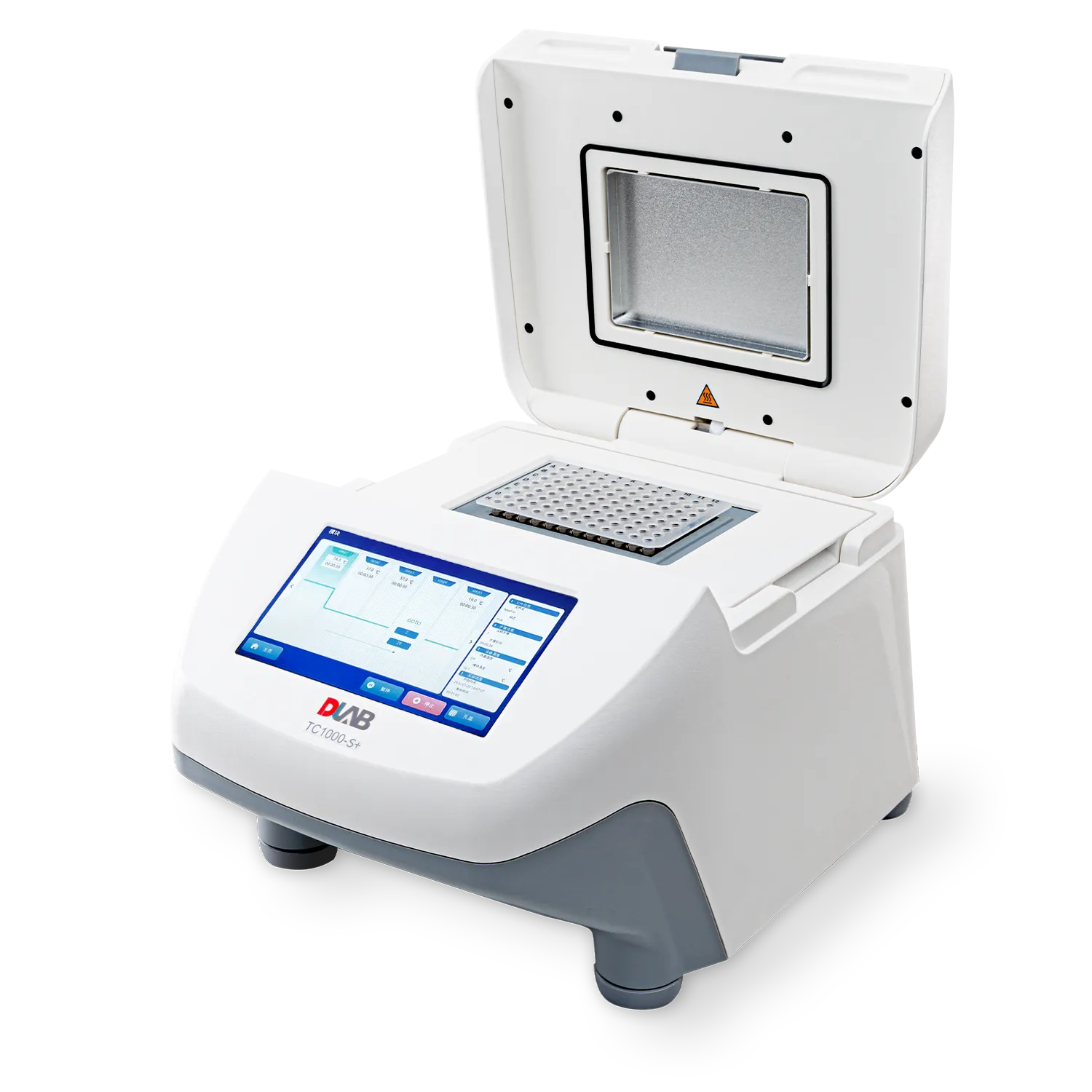

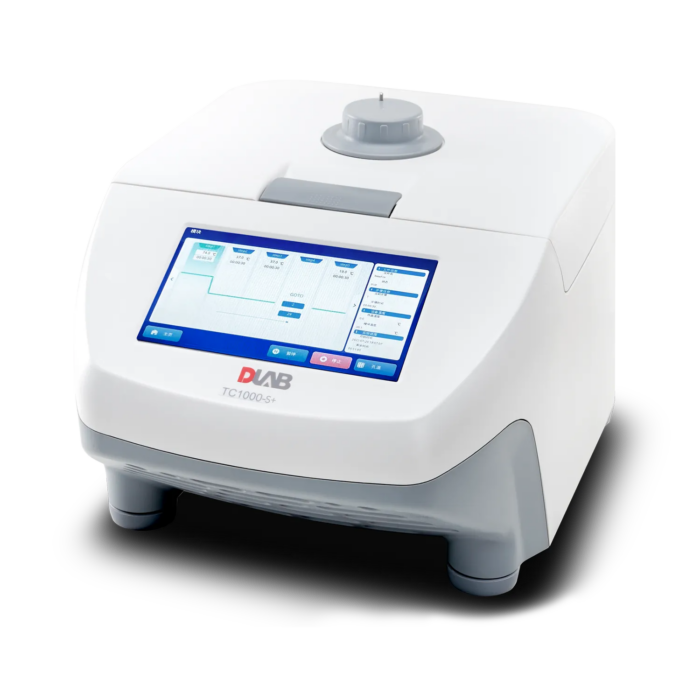

Standard Thermal Cycler

The TC1000-S+ is a high-precision thermal cycler engineered for reproducible and efficient PCR applications. Designed with advanced Peltier technology and intuitive software control, it delivers reliable results across a wide range of research areas including sequencing, gene cloning, mutagenesis, and diagnostics.

Features/functions:

• High-performance Peltier module with segmented heating for improved temperature accuracy
• Auxiliary heating mechanism reduces edge effects and improves thermal uniformity
• Touchdown PCR temperature range: -9.9 °C to +9.9 °C
• Long PCR time adjustment range: -9 min 59 s to +9 min 59 s
• Gradient temperature setting for PCR optimization in a single run
• 7-inch colour LCD touchscreen with user-friendly interface

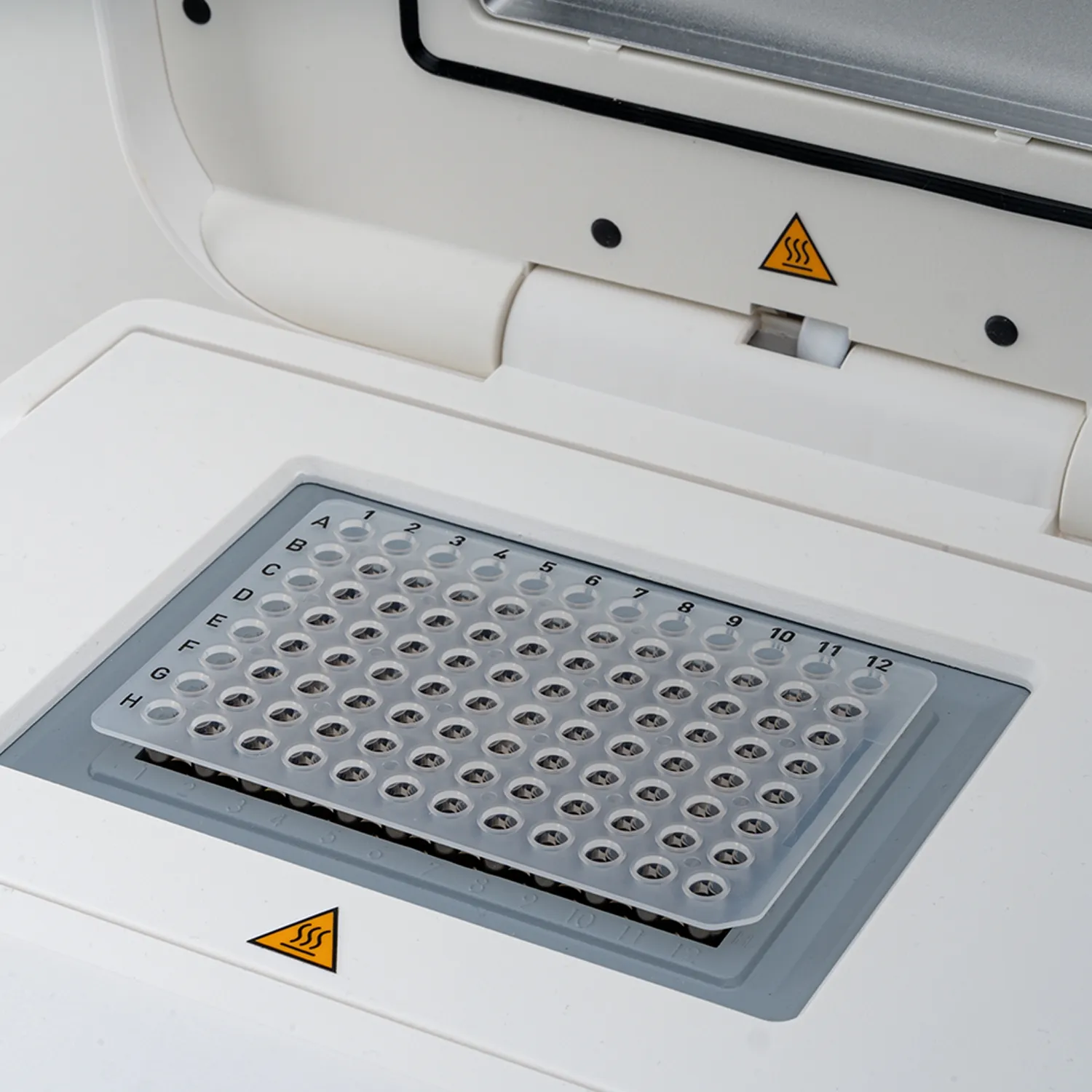

• Compatible with 96×0.2 mL tubes, 8-strip PCR tubes, and 96-well PCR plates
• Hot-lid auto-off function activates when block temp is <30 °C
• File customisation and multi-file storage capability (over 200 programs)
• Power failure protection and automatic program recovery
• Compact, robust design with excellent thermal precision and reproducibility

Specifications:

• Sample Capacity: 96×0.2 mL PCR tubes; 12×0.2 mL 8-strip tubes; 96-well 0.2 mL PCR microplates
• Heating Temp. Range: 4 °C to 105 °C
• Lid Temp. Range: 30 °C to 110 °C
• Temperature Display Accuracy: 0.1 °C
• Temperature Control Accuracy: ±0.1 °C
• Temperature Uniformity (at 55 °C): ±0.2 °C
• Max. Heating/Cooling Rate: 5 °C/sec
• Adapter Block Material: Aluminum
• Display: 7″ LCD (800×480)
• Input Method: Touchscreen panel
• Program Capacity: Max. 30 segments, 99 cycles; stores 200+ files
• Power-Off Protection: Yes
• Power Supply: 230V, 50 Hz
• Dimensions: 296 × 370 × 295 mm
• Weight: 9.5 kg
