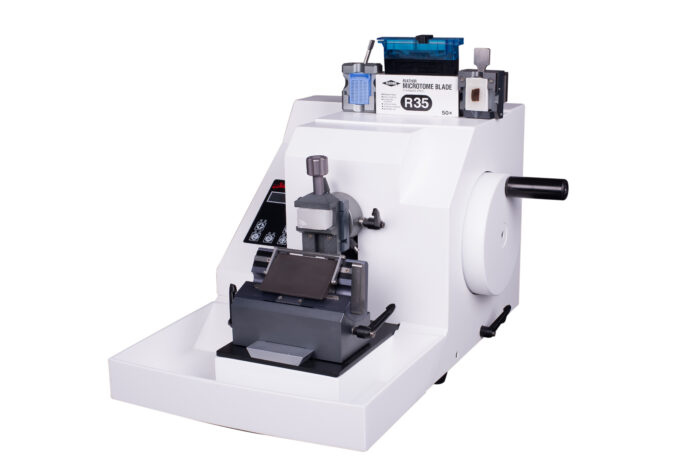

Semi Automatic Rotary Microtome

Precision Rotary Microtome with LCD Control

Reliable Performance for High-Quality Sectioning

This advanced rotary microtome is engineered for both precision and ease of use. Equipped with a German Stepper Motor, it ensures smooth, quiet, and highly accurate slicing, ideal for histology, pathology, and biological research applications. Designed with a versatile blade carrier that supports both high-profile and low-profile disposable blades, it’s built to meet diverse lab needs.

---

Product Features

• German Stepper Motor: Ensures precise, reliable, and quiet sectioning.
• Dual Blade Compatibility: Supports both high-profile and low-profile blades.
• LCD Control Panel: Displays slice/trimming thickness, section count, and mode/speed settings.
• Specimen Retraction Function: Minimizes blade wear and sample damage for smoother sectioning.
• Lockable Hand Wheel: Allows locking in any position for safe and convenient use.
• Removable Waste Tray: Easy to clean and maintain.
• Universal Sample Orientation: 8° X-Y axis tilt, full 360° rotation.
• Protective Guard + Safety System: Includes overload protection, sleep mode, and alarm system.
• Dual Clamp Compatibility: Universal cassette clamp and standard specimen clamp.

---

Technical Specifications

• Section Thickness Range: 0.5 – 100 μm
• 0.5–2 μm in 0.5 μm increments
• 2–10 μm in 1 μm increments
• 10–20 μm in 2 μm increments
• 20–50 μm in 5 μm increments
• 50–100 μm in 10 μm increments
• Trimming Thickness Range: 5 – 500 μm (600 μm optional)
• 5–10 μm in 10 μm increments
• 10–100 μm in 10 μm increments
• 100–200 μm in 20 μm increments
• 200–500 μm in 50 μm increments
• Horizontal Stroke: 20 mm (28 mm optional)
• Vertical Stroke: 60 mm (70 mm optional)
• Specimen Feed Speed: 1250 μm/s (click), 2000 μm/s (hold)
• Specimen Retraction: 12 μm
• Precision Error: ±5%
• Max Section Size: 50 × 45 mm (55 × 55 mm optional)
• Dimensions: 32 × 50 × 30 cm
• Net Weight: 30 kg

---

Standard Accessories

• 2 Clamp Types
• 1 Blade Carrier (for disposable blades)
• 1 Waste Tray
• 4 Tissue Molds
• 50 Cassettes
• 2 Fuses

---

Optional Accessories

• Blade Carrier (for blade holder or steel knife)
• Blade Holder
• Microtome Disposable Blades
• Steel Knife
