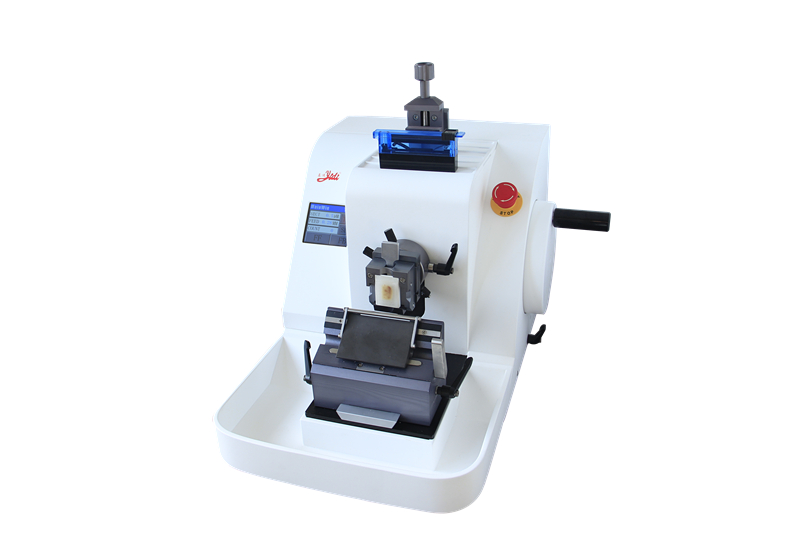

Semi Automatic Microtome(Touch Screen Panel)

Advanced Rotary Microtome – Touchscreen Control

Precision Sectioning Made Effortless and Reliable

This advanced rotary microtome offers precision, quiet operation, and exceptional operator convenience, making it an ideal solution for histology, pathology, and biomedical research labs. Equipped with an intuitive touchscreen interface and German-engineered stepper motor, it delivers high-quality, consistent sections with ease and safety.

---

Key Features

• Touchscreen Control Panel:
  Easily adjust section and trimming thickness, monitor section counts, and control clamp stroke distance directly from the high-resolution touchscreen.
• Precision Stepper Motor (German Design):
  Ensures smooth, reliable, and ultra-precise sectioning with low noise operation.
• Specimen Retraction Function:
  Prevents contact between the sample and blade during retraction, extending blade life and providing smoother sectioning results.
• Universal Compatibility:
  Comes with both standard specimen clamps and universal cassette clamps. Supports high-profile and low-profile blades, with an optional blade carrier for steel knives or blade holders.
• Safety-First Design:
  Handwheel locking system, safety guard, overload protection, sleep mode, and a built-in safety alarm system provide optimal operational safety.
• Ergonomic Handwheel Balancing System:
  Adjustable balancing force ensures smoother manual rotation during sectioning.
• Flexible Blade Carrier:
  Blade angle adjustment available for optimized cutting angles and reduced wear.
• Easy Maintenance:
  Includes a detachable waste tray for quick cleaning and improved workflow.
• Full Specimen Orientation:
  ±8° orientation along X-Y axes and full 360° rotation for ideal sectioning alignment.

---

Technical Specifications

• Section Thickness Range: 0.5 – 100 μm
• 0.5–2 μm: 0.5 μm increments
• 2–10 μm: 1 μm increments
• 10–20 μm: 2 μm increments
• 20–50 μm: 5 μm increments
• 50–100 μm: 10 μm increments
• Trimming Thickness Range: 5 – 500 μm (600 μm optional)
• 5–10 μm: 10 μm increments
• 10–100 μm: 10 μm increments
• 100–200 μm: 20 μm increments
• 200–500 μm: 50 μm increments
• Horizontal Stroke: 20 mm (28 mm optional)
• Vertical Stroke: 60 mm (70 mm optional)
• Specimen Feed Speed:
• 1250 μm/s (click)
• 2000 μm/s (continuous press)
• Specimen Retraction: 12 μm
• Precision Error: ±5%
• Max Section Size: 50 × 45 mm
• Dimensions (L × W × H): 520 × 450 × 300 mm
• Net Weight: 30 kg
• Power Supply: AC 110V–220V, 50Hz/60Hz

---

Standard Accessories

• 2 Specimen Clamps
• 1 Blade Carrier (for disposable blades)
• 1 Waste Tray
• 4 Tissue Molds
• 50 Cassettes
• 2 Fuses

---

Optional Accessories

• Blade Carrier (for steel knife or blade holder)
• Blade Holder
• Disposable Microtome Blades
• Steel Knife
