Rotary Microtome

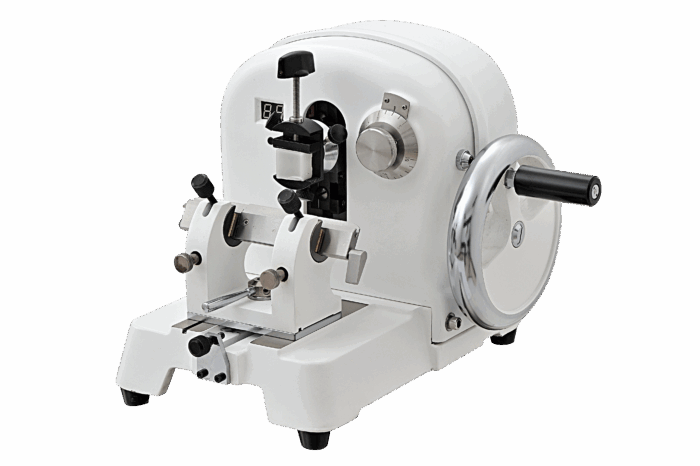

YD-202A Rotary Microtome

Enhanced Precision in a Compact, Ergonomic Design

The YD-202A Rotary Microtome is an improved version of the trusted YD-202 model, offering refined appearance, increased precision, and user-friendly features. With a smooth-running hand wheel and compact design, it ensures effortless and accurate sectioning for daily laboratory use. The built-in LCD display allows section counting and integrates an alarm system for added safety and ease of monitoring.

---

Technical Specifications

• Section Thickness Range: 1 – 25 μm
• Minimum Setting Value: 1 μm
• Maximum Section Size: 35 × 25 mm
• Horizontal Specimen Stroke: 35 mm
• Vertical Specimen Stroke: 46 mm
• Dimensions: 330 × 370 × 290 mm
• Net Weight: 25.5 kg

---

Standard Accessories

• 1 Clamp
• 1 Blade Carrier (compatible with steel knife or blade holder)
• 50 Cassettes
• 1 Steel Knife

---

Optional Accessories

• Blade Holder
• Microtome Disposable Blade
• Cassette Clamp
