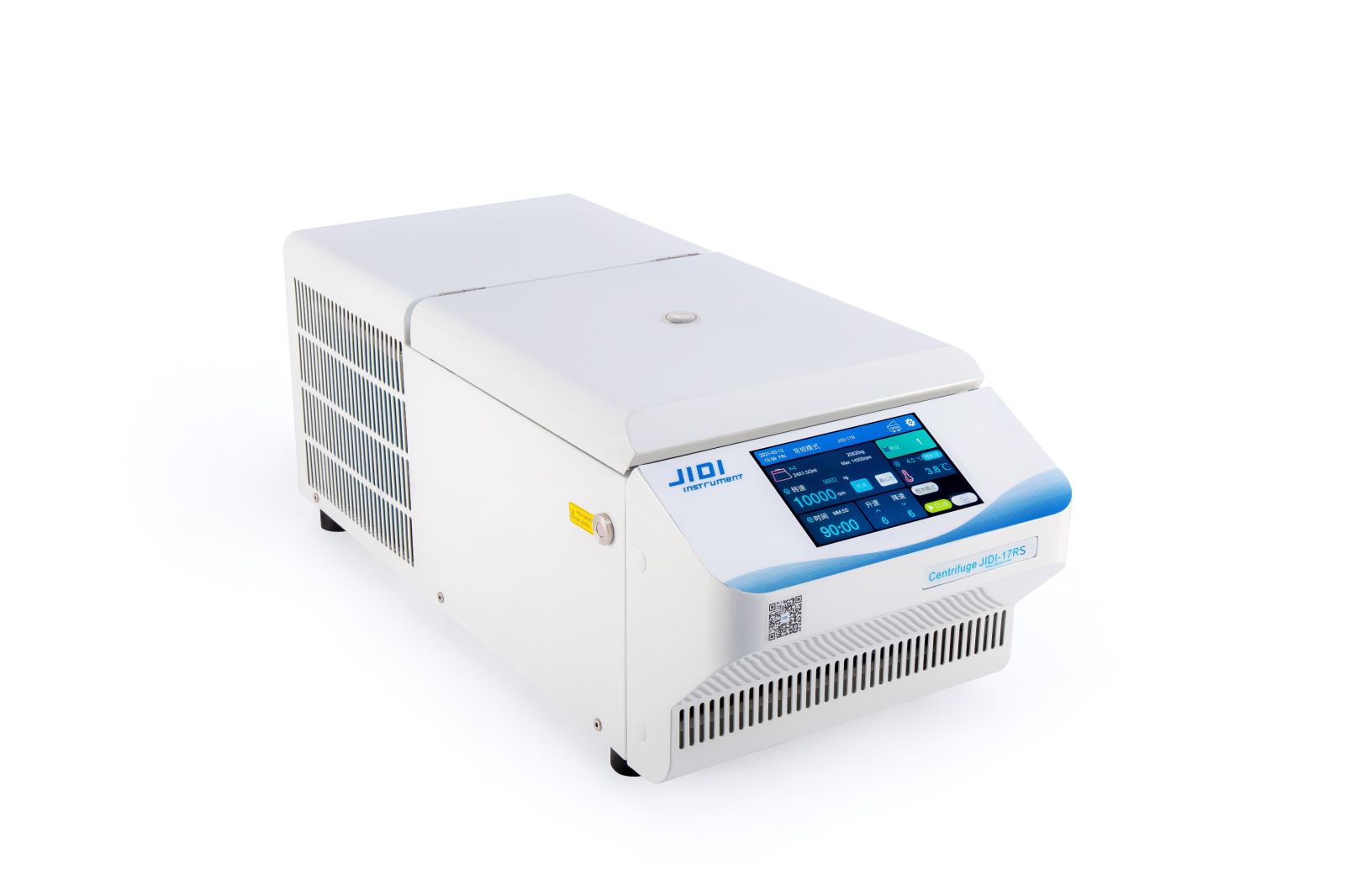

JIDI-17RS Refrigerated High-Speed Microcentrifuge

The JIDI-17RS is a precision-engineered refrigerated microcentrifuge that offers superior speed, intelligent control, and rapid cooling performance for modern laboratories. Designed for molecular biology, clinical diagnostics, and pharmaceutical research, it combines power, safety, and advanced user interface technology.

---

Key Specifications

• Model: JIDI-17RS
• Maximum Speed: 17,800 rpm
• Maximum RCF: 23,233 × g
• Timer Range:
• 0–99 min 59 sec
• 0–99 hr 59 min (switchable)
• Speed Accuracy: ±10 rpm
• Acceleration/Deceleration Time: 10 sec
• Motor Type: Inverter-controlled centrifuge motor
• Temperature Range: -20°C to +40°C
• Temperature Accuracy: ±0.8°C
• Power Supply: AC 220V, 50Hz, 15A
• Noise Level: ≤55 dB
• Weight (excluding rotor): 40 kg
• Dimensions (L × W × H): 645 × 300 × 275 mm

---

Key Features

7-Inch Intelligent Touchscreen Display

• Simultaneously displays real-time data: speed, time, temperature, rotor type, door status, and system date/time.
• Supports easy toggling between centrifugal force (RCF) and speed (RPM) presets.

Real-Time Monitoring & Data Logging

• Live detection of rotor speed with emergency lockout in the event of abnormalities.
• Complete operation history is logged and accessible for review.
• On-screen graphical curves show changes in speed, RCF, and temperature during operation.

Advanced Refrigeration System

• Features a high-efficiency imported compressor with extended service life and rapid cooling (25°C to 4°C in < 3 minutes).
• Uses micro-automatic constant temperature control technology for superior precision and energy efficiency.
• Built with top-grade copper tubing and full tin welding for optimal thermal transfer and moisture resistance.

Ergonomic & Durable Construction

• Stainless steel centrifugal chamber with special anti-corrosion coating for maximum durability.
• Ergonomic, modern aesthetic with easy-to-navigate controls and a compact benchtop footprint.
• Door lid features a three-stage hydraulic buffer for smooth, reliable operation with dust-proof protection.

Robust Safety and Engineering

• Triangular linkage motor fixation and triple shock absorption system ensure ultra-smooth and quiet operation.
• Comprehensive safety protections: overspeed, overtemperature, imbalance, door lock system, and automatic fault alarms.
• Octagonal chamber structure and moisture-resistant circuit layout ensure long-term reliability in demanding environments.

Centrifuge-Specific Observation Tube

• Innovative threaded design on upper/lower observation ports prevents leakage and detachment, resolving common safety concerns with traditional systems.

---

Rotor Accessories

Additional rotor options available upon request.
