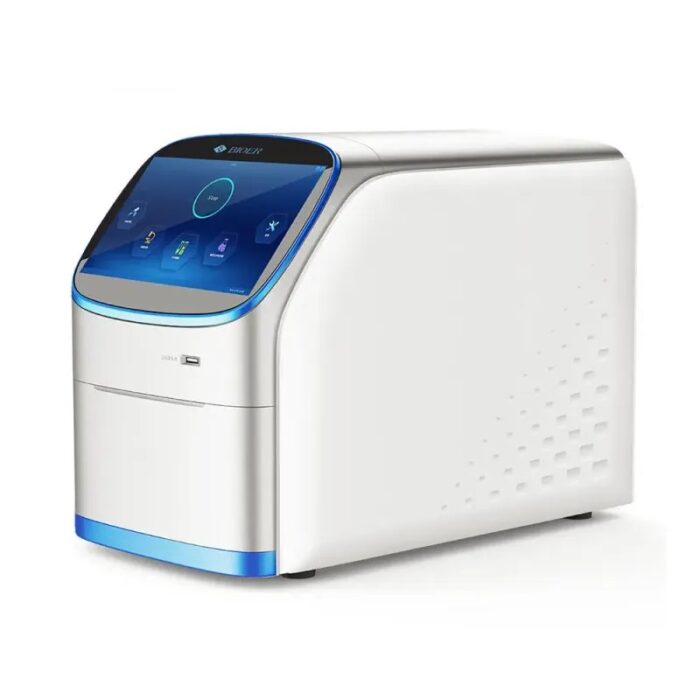

QuantGene 9600 Fluorescent Quantitative Detection System

The QuantGene 9600 is a high-performance real-time PCR system built for fast, precise, and highly multiplexed assays across research, clinical, and routine testing labs. It combines Bioer’s mature thermoelectric control with a new optical engine—top reading, full-plate acquisition, and fiber-bundle light collection—for uniform results without edge effects or frequent calibration.

Features / functions:

• Sample capacity: 96 × 0.2 mL (single tubes, 8-strip, or 96-well plates; non-skirt & half-skirt)

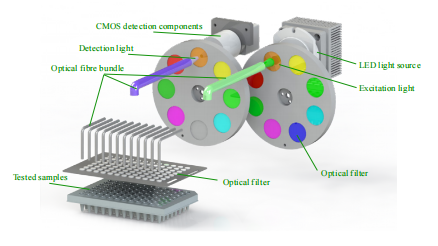

• Top-reading optics: captures all 96 wells simultaneously—no inter-well time offset
• High-sensitivity detection: optical-fiber bundle collection + CMOS detector minimizes transmission loss and boosts S/N
• Dual filter wheels: supports complex probe chemistries and secondary-excitation experiments
• Stable thermal system: long-life semiconductor (thermoelectric) modules with 6-zone independent temperature control for precise gradients
• Accurate qPCR analysis: constant-current light source and optimized light path for consistent fluorescence across the plate; reduced edge effects; no routine calibration required
• Assay modes: absolute/relative quantification, qualitative detection, SNP genotyping, melt-curve, HRM, and multiplex gene detection
• Control & connectivity: 10.1″ full-color touchscreen with intuitive UI; remote operation and monitoring via mobile app
• Software: powerful analysis suite with Chinese/English interfaces and flexible reporting

Specifications:
