SKU: OS1-A-Parent
Overhead Stirrer. High Torque Analog Set
Categories: Overhead StirrersSKU: OS1-A-Parent
Product Enquiry

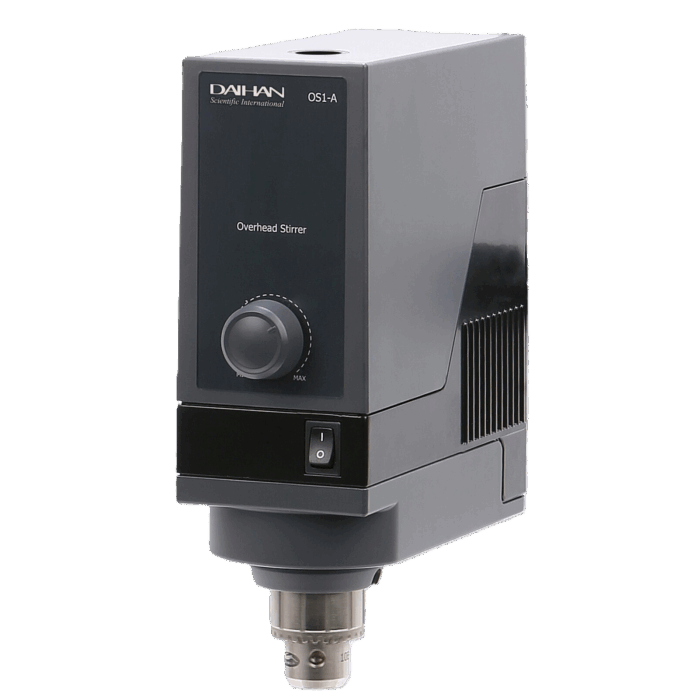

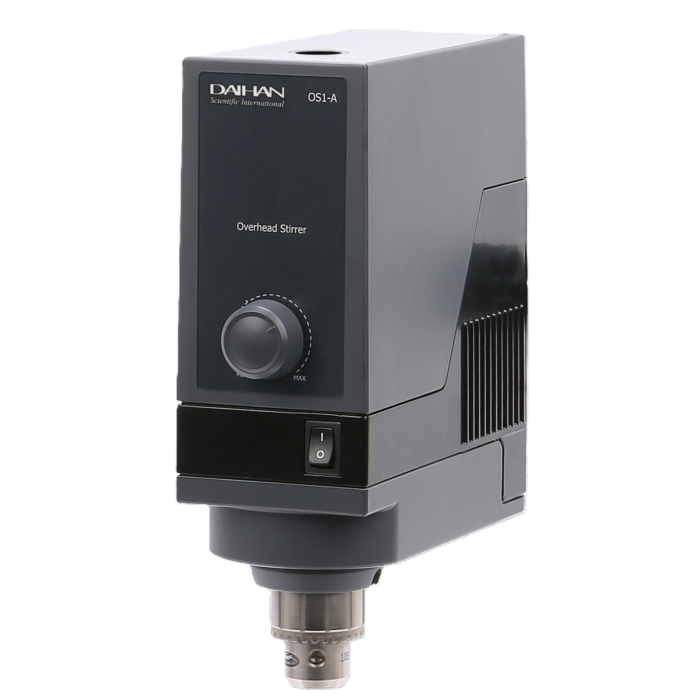

High Torque Overhead Stirrer – Analog Set
Key Features
- Belt-type Gear System:
- Provides soft and powerful operation.
- 3-ratio gear system (OS1-15-Set) and 4.5-ratio gear system (OS1-20-Set) for various viscosity levels.
- High Durability:
- Chrome-plated anti-rust chuck.
- High Stability:
- Anti-trembling function for the impeller.
- Safety Features:
- Over-heat/load/current protection for safety.
- Made with High-Quality Materials:
- ABS and Aluminum construction.
| Option A | Option B | |
| Product Code | OS1-15-A-Set | OS1-20-A-Set |
| Stirring Capacity | Max. 40 Lit. (H2O) | Max. 60 Lit. (H2O) |
| Maximum Viscosity | 100,000 mPas | 150,000 mPas |
| Maximum Torque | 180 Ncm | 270 Ncm |
| Gear Ratio | 3.0 : 1 | 4.5 : 1 |
| Speed Range | 80 to 1,200 rpm | 50 to 800 rpm |
| Motor Type | Direct driven DC motor | |
| Motor Rating (Input/Output) | 110 / 85W | |
| Timer/Alarm | 99hr 59min/Error status, Timer-end | |
| Max. Impeller Shaft Diameter | 10mm | |
| Permissible Temp./RH | 0 ~ 40°C / 80% RH | |
| Material | ABS and Aluminum | |
| Safety Device | Over-heat/load/current protection | |
| Power Consumption | 180W | |
| Dimensions/Weight | 80 x 194 x 245mm / 10.44kg | 80 x 194 x 245mm / 10.50kg |
| Packing Size/Gross Weight | 290 x 800 x 180mm / 12.20kg | 290 x 800 x 180mm / 12.27kg |
| Power Supply | AC230V, 50/60Hz, 1P | |

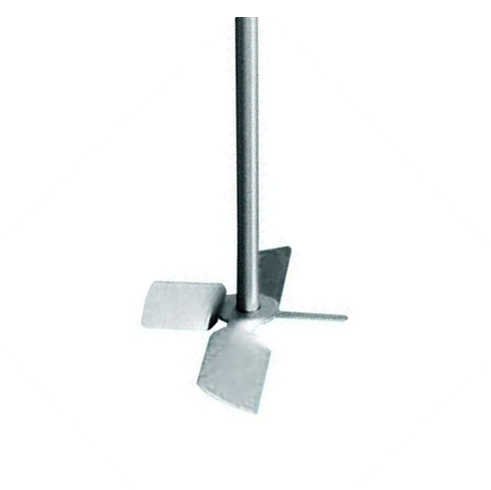

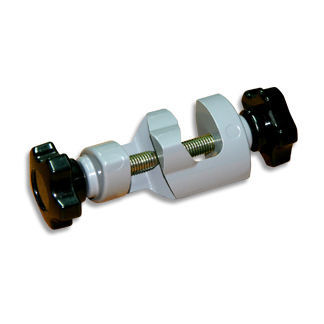

| Standard Accessories | 3-blade impeller, Standard plate stand, Clamp | |
| Weight | N/A |
|---|
