SKU: SHO-Parent

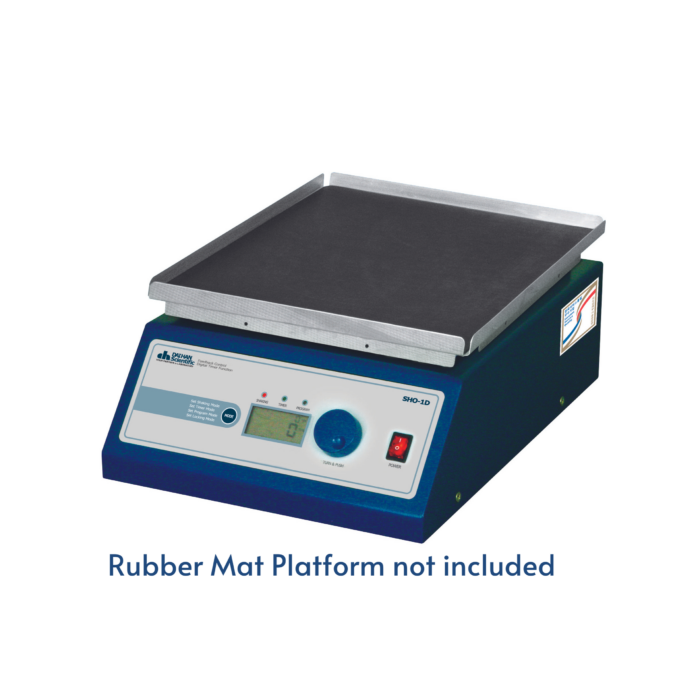

Orbital Shakers. Digital. Platform not Included
Categories: ShakersSKU: SHO-Parent
Product Enquiry
- CE Certified
- PL(Product Liability) Insurance
- With Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
- Ideal for Culturing Cells to Hybridization, Staining and Destaining Gels, and Combinatorial Chemistry
- Patented Jog-Shuttle Control System
- Optimal Platform Rotation for Intensive Mixing
- Brushless DC Motor(Low Noise & Long Life Cycle)
- High Precision Digital Rotation Speed Control
- Programmable Operation Mode Supported
- Digital LCD with Back-Light Function
- Smooth Start and Change of Shaking Speed for Stable Running
- Storage Function(Program, RPM, Timer), Alarm(Error Status and Timer-end) & Overload Protection
- Locking Mode Supported for Experimental Safety (Input to Jog-Shuttle can be Disabled)
*Platforms not included – sold separately*
| SHO-1D Plate Size 230×230 mm |
SHO-2D Plate Size 350×350 mm |
||
| Shaking Motion | Orbital Motion | ||
| Speed Range | 10 ~ 300 rpm | ||
| Max. Load | 8 kg | 10 kg | |
| Amplitude of Rotation (mm) | 8 mm | 15 mm | |
| Motor | Brushless DC Motor | ||
| Permissible Ambient Temp. | Ambient +5 ~ 50℃ | ||
| Permissible Relative Moisture | 0.85 | ||
| Timer & Alarm | 99hr 59min (with Continuous run.), Error status & Timer-end | ||
| Display | Digital LCD with Back-Light Function | ||
| Controller | Programmable Digital Feedback Controller with Jog-Shuttle Switch(Turn+Push) | ||
| Program Function | 10 Steps, 6 Programs | ||
| Safety Circuit | Overload Protector for Motor | ||
| Dimension (w×d×h) (mm) | 260×330×150 | 400×480×160 | |
| Net Weight | 14 kg | 20 kg | |
| Power Consumption | 40W | ||
| Electrical Reqts. | AC 80V ~ 240V, 50/60 Hz | ||
| Model | Compatible Universal Platform | Compatible Rubber Mat Platform |
| SHO-1D | SP100 | SP110 |
| SHO-2D | SP200 | SP210 |
| Weight | N/A |
|---|
