Multipurpose Low-speed Refrigerated Centrifuges

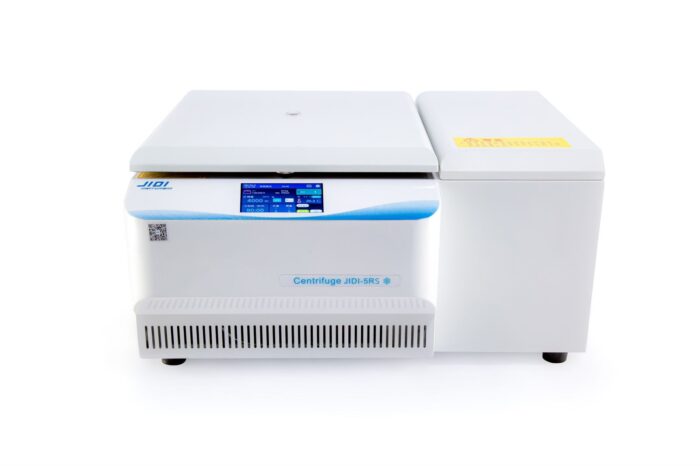

JIDI-5RS Multipurpose Low-Speed Refrigerated Centrifuge

Applications:
Designed for broad applications in medical, genetic engineering, research, production, and clinical diagnostics—this high-performance centrifuge meets the demands of a wide range of laboratory environments.

---

Product Overview

The JIDI-5RS is a robust, high-capacity low-speed refrigerated centrifuge designed to deliver precision, efficiency, and safety. Featuring a variable-speed brushless motor and an advanced microcomputer-controlled refrigeration system, it offers exceptional temperature stability and centrifugation performance. Its ergonomic design and intuitive touchscreen interface make it an indispensable tool for demanding lab workflows.

---

Specifications

• Model No.: JIDI-5RS
• Max Speed: 5600 r/min
• Max RCF: 5488 ×g
• Timer: 0–99 min 59 sec / 0–99 hr 59 min (switchable)
• Speed Accuracy: ±10 r/min
• Acceleration/Deceleration Modes: 0–9 levels
• Motor Type: Brushless motor
• Temperature Range: -20°C ~ +40°C
• Temperature Accuracy: ±0.8°C
• Power Supply: AC 220V, 50Hz, 15A
• Power Consumption: 800W
• Noise Level: ≤58 dB
• Weight (Excl. Rotor): 82 kg
• Dimensions (L×W×H): 630 × 670 × 360 mm

---

Key Features

• Versatile Alloy Rotor System:
  Precision-machined horizontal rotor is corrosion-resistant, resonance-free, and supports multiple adapter types for different tube formats.
• Advanced Touchscreen Control:
  7″ HD touchscreen displays real-time values including speed, time, temperature, rotor specs, centrifugal force, lid status, and date/time.
• Preset Functionality:
  Supports speed or centrifugal force presets to suit diverse applications.
• Safety Monitoring System:
  Real-time rotor speed monitoring suspends operation and locks controls in case of motor abnormality.
• Centrifugation Data Logging:
  Every operation is automatically recorded and viewable in real time.
• Integrated Display of Operational Curves:
  Speed, force, and temperature curves shown simultaneously for clear, intuitive tracking.
• User Customization:
  Adjustable brightness, button sounds, language settings (EN/CN), and auto lid-opening functionality.
• Rapid & Efficient Refrigeration:
  Cools from 25°C to 4°C in under 3 minutes using a micro-automatic constant temperature control system.
• Energy-Saving Temperature Control:
  Automatically suspends refrigeration when the lid is open and resumes when closed.
• High-Performance Cooling Hardware:
  Built with top-grade copper tubing, full tin-welding, automatic condensate drainage, and efficient insulation.
• Durable Build with Moisture Protection:
  Features octagonal chamber design with suspended circuit boards and ventilated external circulation.
• High-Quality Materials:
  Stainless steel centrifuge chamber coated for corrosion resistance; outer casing made of durable, acid/alkali-resistant composite material.
• Stable & Quiet Operation:
  Patented triangular motor fixation system and 3-stage damping ensure smooth, vibration-free use.
• Safe & Ergonomic Design:
  Modern appearance with intuitive controls and built-in protections: overspeed, over-temp, imbalance, and fault alerts.

---

Rotor Accessories (Custom Rotor Sizes Available)
