Multipurpose high-speed centrifuge
Available on Backorder
Categories: Benchtop CentrifugesSKU: JIDI-21B
Product Enquiry

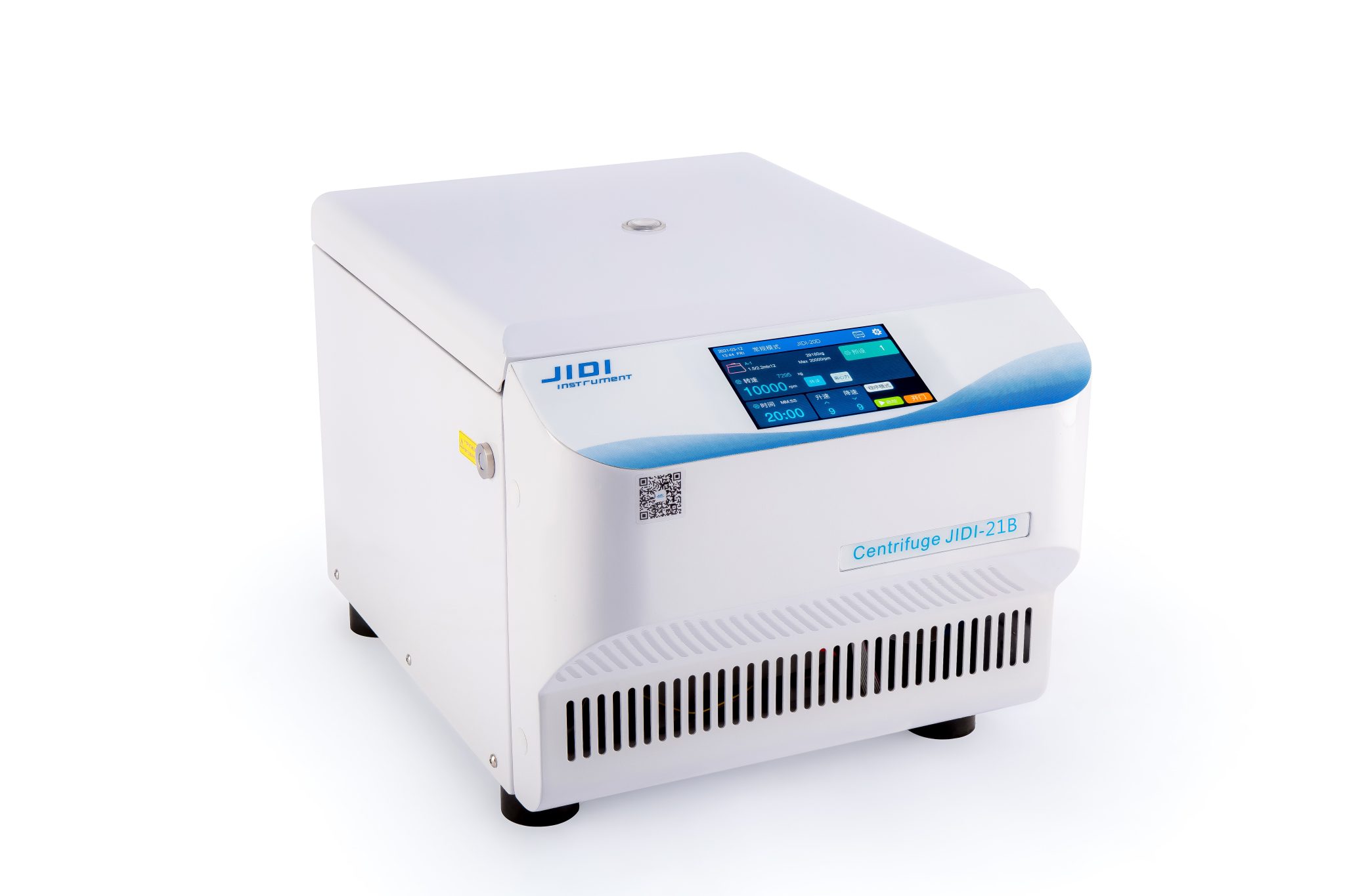

JIDI-21B Multipurpose High-Speed Centrifuge
The JIDI-21B is a state-of-the-art multipurpose high-speed centrifuge, engineered for exceptional performance and reliability in laboratory settings. Designed for precision, durability, and ease of use, it supports a wide range of sample volumes and is ideal for clinical, research, and industrial applications.
Key Specifications
- Model: JIDI-21B
- Maximum Speed: 25,000 rpm
- Maximum RCF: 42,968 × g
- Timer Range:
- 0 – 99 min 59 sec
- 0 – 99 hr 59 min (switchable)
- Speed Accuracy: ±10 rpm
- Acceleration/Deceleration Modes: 0–9 levels
- Motor Type: Inverter-controlled centrifuge motor
- Power Supply: AC 220V, 50Hz, 10A
- Power Consumption: 750W
- Noise Level: ≤55 dB
- Product Weight (excluding rotor): 45 kg
- Dimensions (L × W × H): 520 × 360 × 320 mm
Advanced Features
High-Precision Drive System
- Built with ultra-high precision motor drive and superalloy components.
- Tool-free rotor removal with a quick-lift mechanism.
- Exceptionally quiet and reliable operation.
Automatic Rotor Recognition & Safety Checks
- Intelligent system detects rotor type, imbalance, and performs auto safety diagnostics.
Aerospace-Grade Construction
- Rotor and drive head made from aerospace-grade composite alloys.
- Full resistance to corrosive organic solvents—lifetime durability guaranteed.
Durable Centrifuge Chamber
- Stainless steel composite alloy chamber.
- Withstands corrosive agents and high stress.
- Certified for:
- Hardness: >2300HV
- Surface Smoothness: <0.04
- Salt Spray Resistance: 100 hours, no damage
Smart Hydraulic Lid System
- Triple-stage hydraulic lid support with dust-proof protection.
- Ensures smooth, reliable opening and closing.
7-Inch HD Touchscreen Interface
- Displays real-time speed, time, temperature, rotor model, and centrifugal force.
- Shows door status, date, and time.
Customizable Centrifugation Modes
- Preset by speed or RCF to meet specific experimental needs.
- Free programming with multiple memory slots.
- Full-featured operation mode tailored for advanced research.
Real-Time Speed Monitoring & Safety Interlock
- Auto-disable interface in case of abnormal speed detection.
- Visual pop-up alerts enhance safety.
Data Logging & Visualization
- Logs all centrifuge operations with real-time display of:
- Speed, RCF, and temperature curves.
- Customizable UI: language (Chinese/English), screen brightness, timer, auto lid opening, etc.
Unique Octagonal Chamber Design
- Octagonal construction with automatic ventilation.
- Moisture-resistant suspended circuit board system.
Vibration-Free Motor Mount
- Patented triangular motor fixing and 3-stage anti-vibration structure.
- Stable high-speed operation with low noise.
Durable & Resistant Outer Shell
- Composite material exterior with acid/alkali-resistant baked finish.
- Passed 100-hour smoke test—no damage.
- Sleek, modern design.
Enhanced Ergonomics & Safety
- Designed for ease of use and aesthetic appeal.
- Safety features include:
- Door lid protection
- Over-speed, over-temp, and imbalance protection
- Automatic fault alerts
Rotor Accessories
Custom rotor sizes available upon request.
| No. | Rotor Type | Max Speed (rpm) | Max RCF ×g | Capacity | Notes |
|---|---|---|---|---|---|
| 1 | Fixed-angle rotor | 25,000 | 42,968 | 12 × 1.5 ml | – |
| 2 | Fixed-angle rotor | 21,000 | 42,895 | 24 × 1.5/2 ml | – |
| 3 | Fixed-angle rotor | 15,000 | 24,903 | 48 × 1.5/2 ml | – |
| 4 | Fixed-angle rotor | 19,000 | 33,095 | 16 × 5 ml | – |
| 5 | Fixed-angle rotor | 18,000 | 32,417 | 12 × 10 ml | – |
| 6 | Fixed-angle rotor | 15,000 | 26,412 | 12 × 15 ml | Round/conical bottoms optional |
| 7 | Fixed-angle rotor | 15,000 | 26,412 | 6 × 50 ml | Universal round/conical bottoms optional |
| 8 | Fixed-angle rotor | 13,000 | 22,011 | 8 × 50 ml | – |
| 9 | Fixed-angle rotor | 12,500 | 19,390 | 6 × 100 ml | – |
