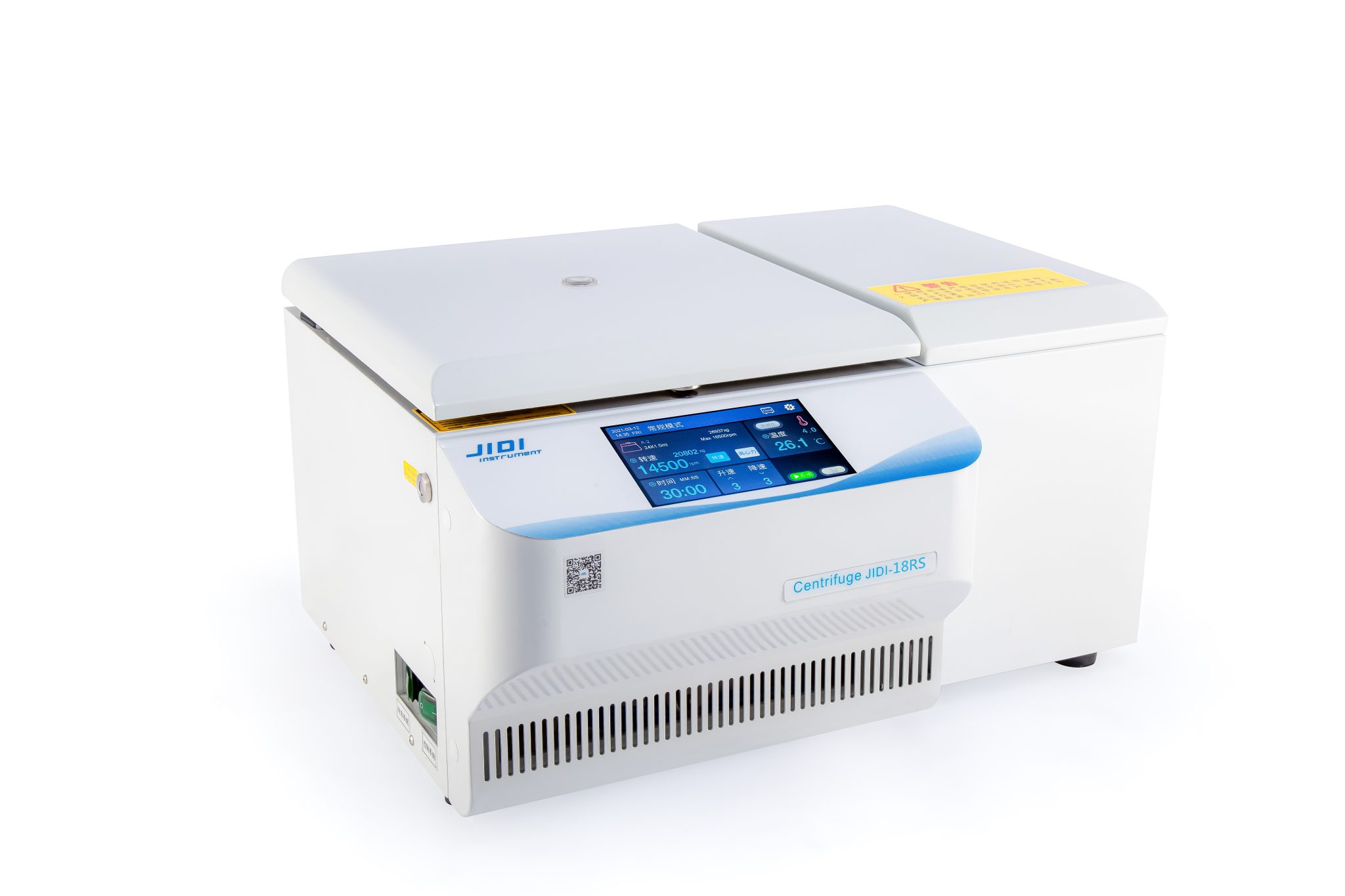

JIDI-18RS Multi-Purpose High-Speed Refrigerated Centrifuge

The JIDI-18RS is a powerful and precise multi-purpose high-speed centrifuge with integrated refrigeration. Engineered for research, clinical, and industrial applications, it combines superior centrifugation performance with intelligent temperature control, ensuring safety, durability, and ease of use in demanding lab environments.

---

Key Specifications

• Model: JIDI-18RS
• Maximum Speed: 21,000 rpm
• Maximum RCF: 30,319 × g
• Timer Range:
• 0 – 99 min 59 sec
• 0 – 99 hr 59 min (switchable)
• Speed Accuracy: ±10 rpm
• Acceleration/Deceleration Modes: 0–9 levels
• Motor Type: Inverter-controlled centrifuge motor
• Temperature Range: -20°C to +40°C
• Temperature Accuracy: ±0.8°C
• Power Supply: AC 220V, 50Hz, 15A
• Power Consumption: 880W
• Noise Level: ≤55 dB
• Weight (excluding rotor): 66 kg
• Dimensions (L × W × H): 535 × 650 × 330 mm

---

Advanced Features

Precision Drive System

• Built with the latest ultra-high precision drive motor.
• Quiet, powerful, and reliable.
• Tool-free rotor installation and removal for added convenience.
• Superalloy drive head and shaft for extreme durability.

Smart Rotor Detection & Safety

• Automatically recognizes the installed rotor and detects imbalance.
• Safety self-check features ensure reliable, risk-free operation.

Aerospace-Grade Construction

• Rotor and drive head use aerospace-grade superalloy composites.
• Fully resistant to corrosive solvents and samples.
• Backed by a lifetime warranty.

Reinforced Centrifuge Chamber

• Stainless steel super-composite alloy with lifetime corrosion resistance.
• Surface properties:
• Hardness: >2300 HV
• Smoothness: <0.04
• Passed 100-hour salt spray test with no damage.
• Hydraulic Lid System
• Custom three-stage buffer hydraulic rod with dust-proof protection.
• Ensures smooth, long-lasting lid operation.

7-Inch HD Touchscreen Display

• Real-time display of speed, temperature, runtime, and rotor specs.
• Shows door lid status, date, and time.

Flexible Centrifugation Modes

• Allows pre-setting by speed or RCF.
• Custom programmable for research-specific protocols.
• Full-featured operation supporting a wide range of needs.

Real-Time Speed Monitoring

• Detects and alerts motor abnormalities.
• Pop-up alert disables interface to prevent misuse and ensure safety.

Data Logging & Visualization

• Automatically records all operations.
• Simultaneously displays speed, force, and temperature curves.
• Customizable user interface: screen brightness, language (EN/CH), sound, auto-lid, and timer modes.

Industry-Leading Refrigeration System

• Features a “micro-automatic constant temperature control” system.
• Achieves 25°C to 4°C cooling in under 3 minutes.
• Extended compressor life and increased refrigeration precision.

Auto-Start/Stop Cooling

• Cooling system halts when the lid opens and resumes when closed.
• Pre-cooling option available for rapid setup.

High-Efficiency Cooling Tubing

• Copper tubing with full-tin welding ensures superior cooling performance.
• Includes automatic condensation drainage.

Robust Octagonal Chamber Design

• Solid construction with ventilation and circulation system.
• Moisture-resistant suspended circuit boards.

Patented Motor Stabilization

• Triangular linkage system with triple shock absorption.
• Maintains smooth and stable high-speed operation.

Durable Exterior Shell

• Composite material with acid/alkali-resistant baked paint finish.
• Withstands 100-hour smoke testing without damage.
• Modern and visually appealing design.

Ergonomics & Safety

• Easy to operate with intuitive interface.
• Full safety features:
• Overspeed
• Over-temperature
• Imbalance detection
• Door cover protection
• Auto fault alarm for secure, stable operation

---

Rotor Accessories

Custom rotor sizes available upon request.
