Multi-purpose High-speed Centrifuge

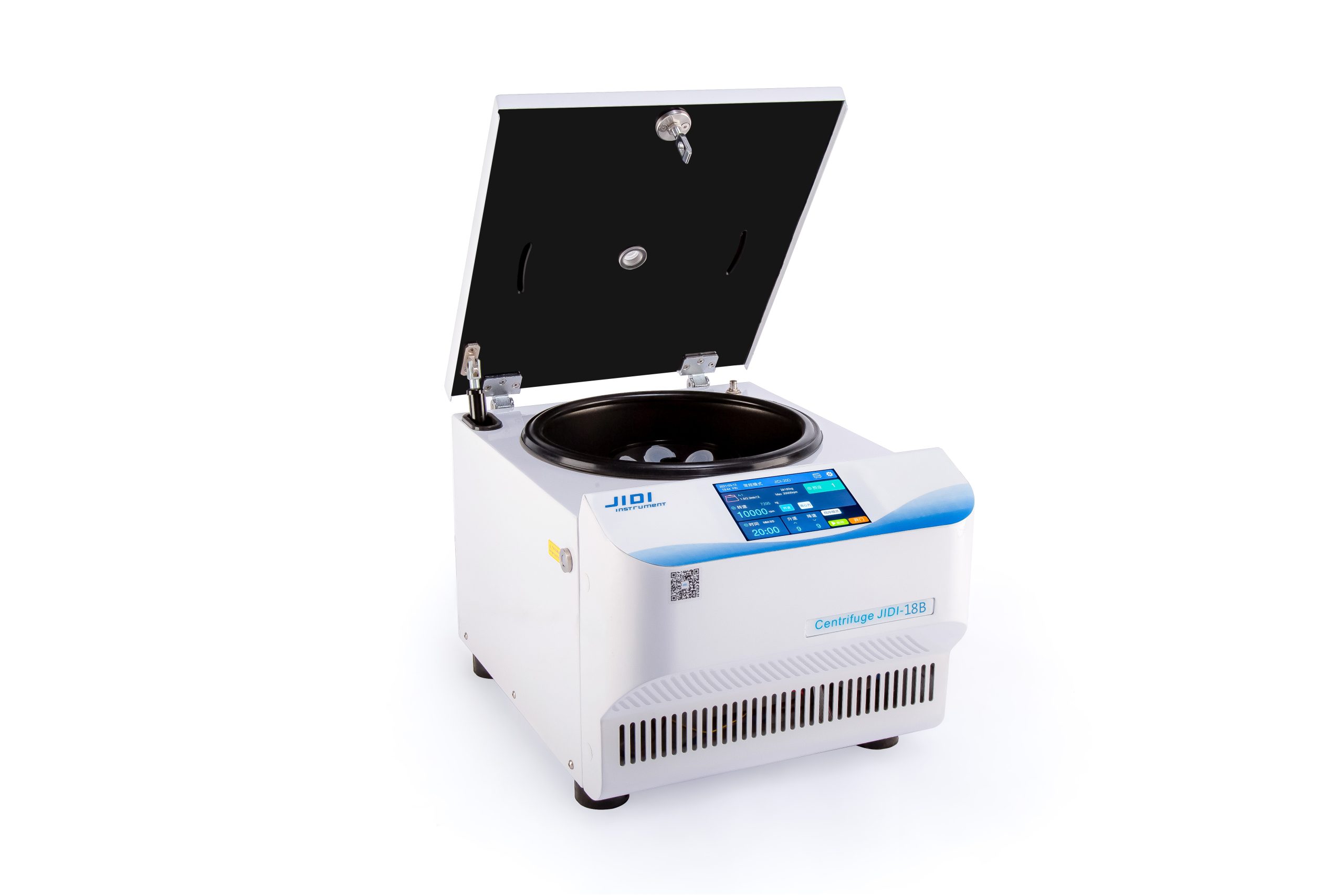

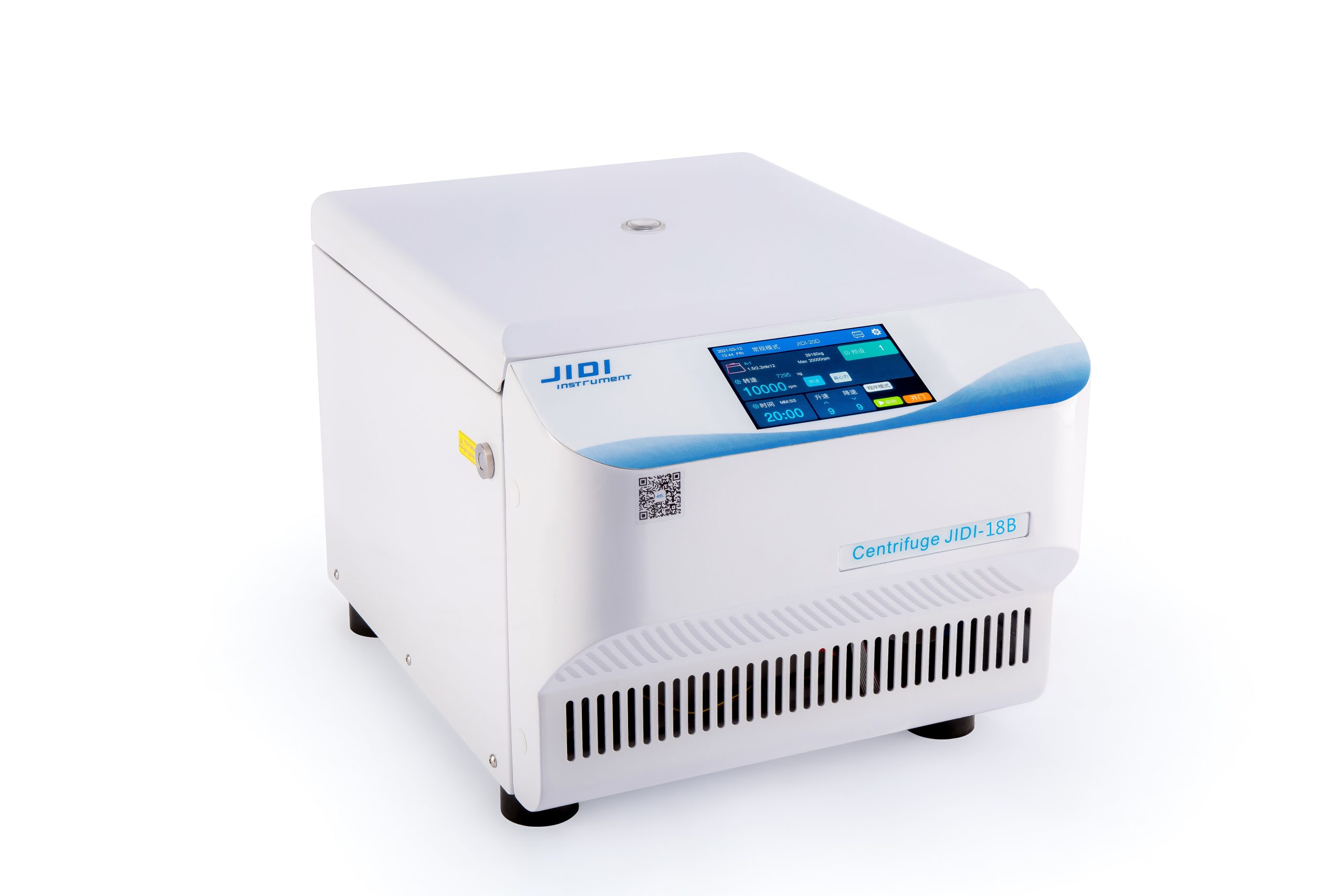

JIDI-18B Multi-Purpose High-Speed Centrifuge

The JIDI-18B is a high-performance, versatile centrifuge designed to meet the rigorous demands of modern laboratories. With its compact footprint, advanced safety features, and user-friendly interface, it delivers powerful performance with precision and reliability for a wide range of scientific and clinical applications.

---

Key Specifications

• Model: JIDI-18B
• Maximum Speed: 21,000 rpm
• Maximum RCF: 30,319 × g
• Timer Range:
• 0 – 99 min 59 sec
• 0 – 99 hr 59 min (switchable)
• Speed Accuracy: ±10 rpm
• Acceleration/Deceleration Modes: 0–9 levels
• Motor Type: Inverter-controlled centrifuge motor
• Power Supply: AC 220V, 50Hz, 10A
• Power Consumption: 660W
• Noise Level: ≤55 dB
• Weight (excluding rotor): 45 kg
• Dimensions (L × W × H): 520 × 360 × 320 mm

---

Advanced Features

Ultra-Precise Drive System

• Built with the latest high-precision motor technology.
• Superalloy drive head and shaft ensure exceptional strength and stability.
• Tool-free rotor installation and removal for convenient operation.

Automatic Rotor Recognition & Safety Check

• Smart detection of rotor type and imbalance.
• Integrated safety self-check system for stable, worry-free performance.

Aerospace-Grade Rotor Construction

• Angle rotors made from aerospace-grade alloy composites.
• Fully resistant to all corrosive organic solvents and lab samples.
• Guaranteed lifetime durability.

High-Durability Centrifuge Chamber

• Stainless steel composite alloy chamber resists corrosion and wear.
• Certified performance:
• Hardness: >2300 HV
• Smoothness: <0.04
• Passed 100-hour salt spray test

Smooth Hydraulic Lid System

• Equipped with a three-stage buffer hydraulic rod with dust protection.
• Ensures seamless lid opening and closing over time.

7-Inch Touchscreen “Smart System”

• Real-time display of speed, time, temperature, acceleration, rotor type, RCF, and more.
• Also shows lid status, date, and time for full operational transparency.

Customizable Centrifugation Control

• Preset by centrifugal force or speed depending on application.
• Includes programmable modes for complex research protocols.
• Fully adaptable to scientific and diagnostic lab needs.

Real-Time Speed Monitoring

• Actively tracks motor behavior.
• Displays warnings and disables controls if abnormalities occur, enhancing user safety.

Comprehensive Data Logging

• Background logging of every operation.
• Real-time display of speed, force, and temperature curves on one screen.
• Adjustable UI: language (EN/CH), button sounds, screen brightness, timer, and auto lid open.

Reinforced Octagonal Chamber Design

• Octagonal connection system ensures structural integrity.
• Features automatic ventilation and moisture-resistant suspended circuit boards.

Shock-Proof Motor Mounting

• Patented triangular linkage and triple-shock-absorption system.
• Delivers ultra-smooth high-speed operation.

Durable Exterior Shell

• Made of composite materials with acid/alkali-resistant baked paint.
• Passed 100-hour smoke test with no damage.
• Stylish, modern design suitable for any professional lab setting.

Ergonomic & Safe Design

• Easy to use and aesthetically refined.
• Built-in protections:
• Door lid lock
• Overspeed protection
• Over-temperature protection
• Imbalance detection
• Automatic fault alarm for reliable operation

---

Rotor Accessories

Additional rotor sizes can be customized to meet specific requirements.
