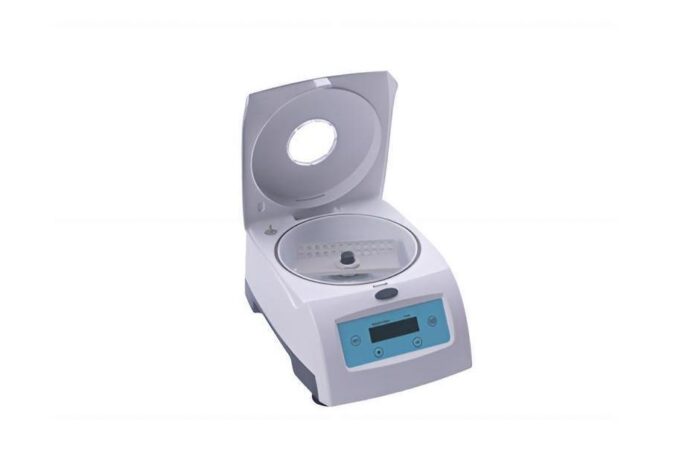

JIDI-12A Mini Centrifuge
The JIDI-12A Mini Centrifuge is a compact, high-speed centrifuge engineered for small-volume sample processing with exceptional performance and precision. Ideal for molecular biology, PCR prep, and micro-volume protocols, it features advanced motor control, versatile rotor compatibility, and ultra-quiet operation—perfect for any modern laboratory.
Key Specifications
- Model: JIDI-12A
- Maximum Speed: 12,000 rpm
- Maximum RCF: 9,660 × g
- Capacity:
- 12 × 1.5/2.0 ml tubes
- 4 × 8 × 0.2 ml PCR strip rotor
- Timer Range: 1 – 99 min
- Power Supply: AC 100–220V, 50/60Hz
- Maximum Power Consumption: 45W
- Noise Level: ≤60 dB(A)
- Weight (excluding rotor): 1.6 kg
- Dimensions (L × W × H): 194 × 229 × 120 mm
Key Features
Precision Motor & Control System
- Powered by a DC permanent magnet motor with a wide speed range (500–12,000 rpm).
- Utilizes a PI high-frequency power control solution with a 16-bit MCU for accurate PWM speed regulation.
- Allows 100 rpm incremental adjustments with ±9% accuracy for speed, voltage, and current control.
Time-Efficient Performance
- Fast acceleration/deceleration reduces experimental time.
- Centrifugation time adjustable between 1–99 minutes or 1–59 seconds.
Durable, Chemical-Resistant Build
- Mainframe and rotors are constructed from high-strength, corrosion-resistant materials.
- Rotors support heat-resistant disinfection, enhancing hygiene and longevity.
Tool-Free Rotor Exchange
- Snap-on rotor design allows quick and easy rotor changes without tools.
- Compatible with a variety of microtubes and PCR strips using composite tube rotor head.
Smooth, Quiet Operation
- RSS damping material ensures ultra-smooth spinning with minimal vibration.
- Aerodynamic 360° arc design minimizes angle clipping and heat buildup.
- Operates quietly (≤60 dB)—ideal for shared workspaces.
Built-In Safety System
- Features door lid protection, overspeed protection, and imbalance detection.
- Real-time monitoring halts operation and displays result codes on the LCD screen during faults or upon completion.
- Audible alerts signal end of cycle or error conditions.

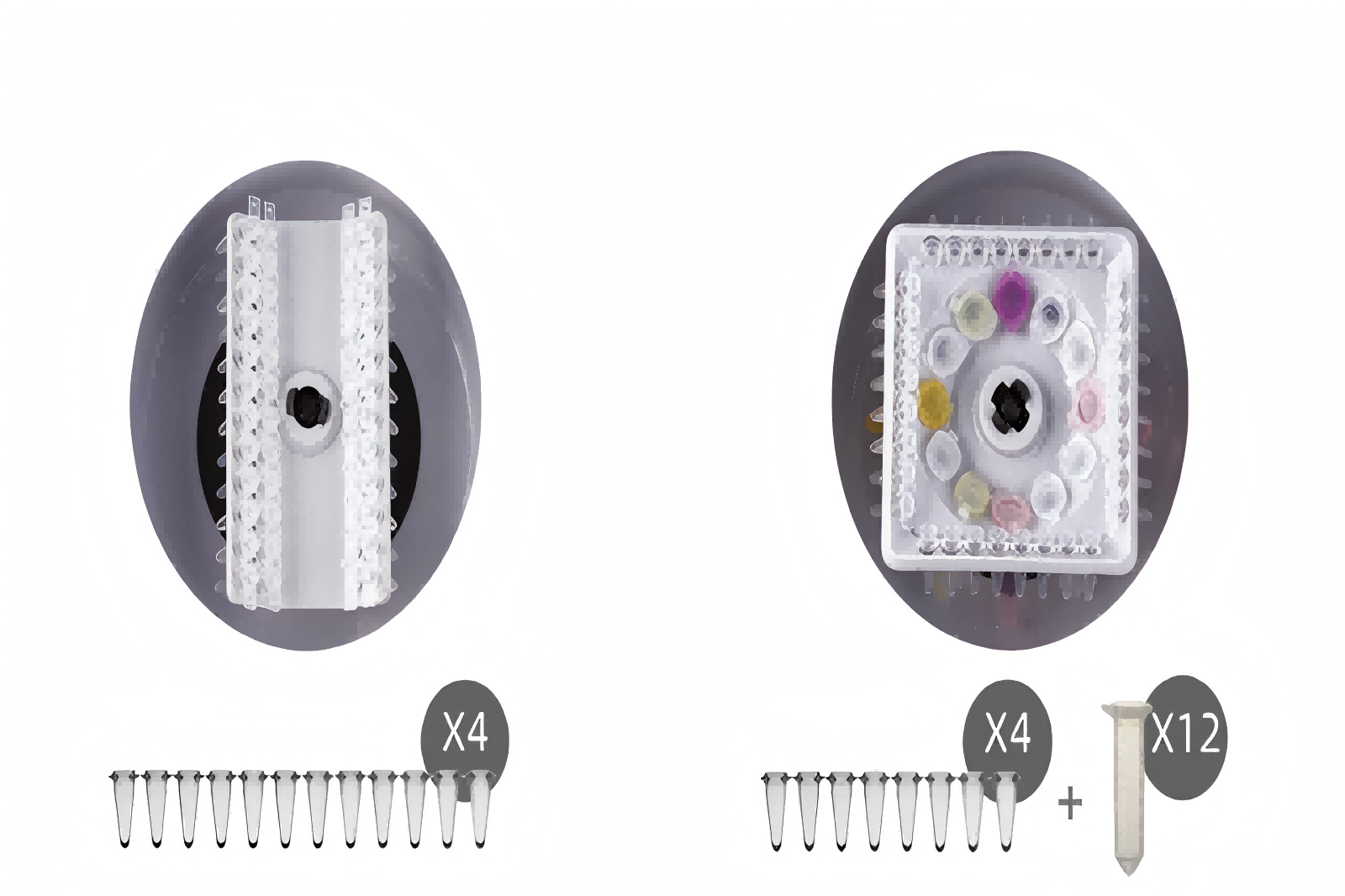

Rotor Accessories
Additional rotor configurations available upon request.
| No. | Rotor Type | Capacity | Max Speed (rpm) | Max RCF ×g |
|---|---|---|---|---|
| 1 | Mixed rotor (1.5/2 ml × 12 + PCR 0.2 ml × 8 × 4) | 12 × 1.5/2 ml + 32 × 0.2 ml PCR | 12,000 | 9,500 |
| 2 | PCR Strip Rotor | 48 × 0.2 ml PCR | 12,000 | 5,960 |
