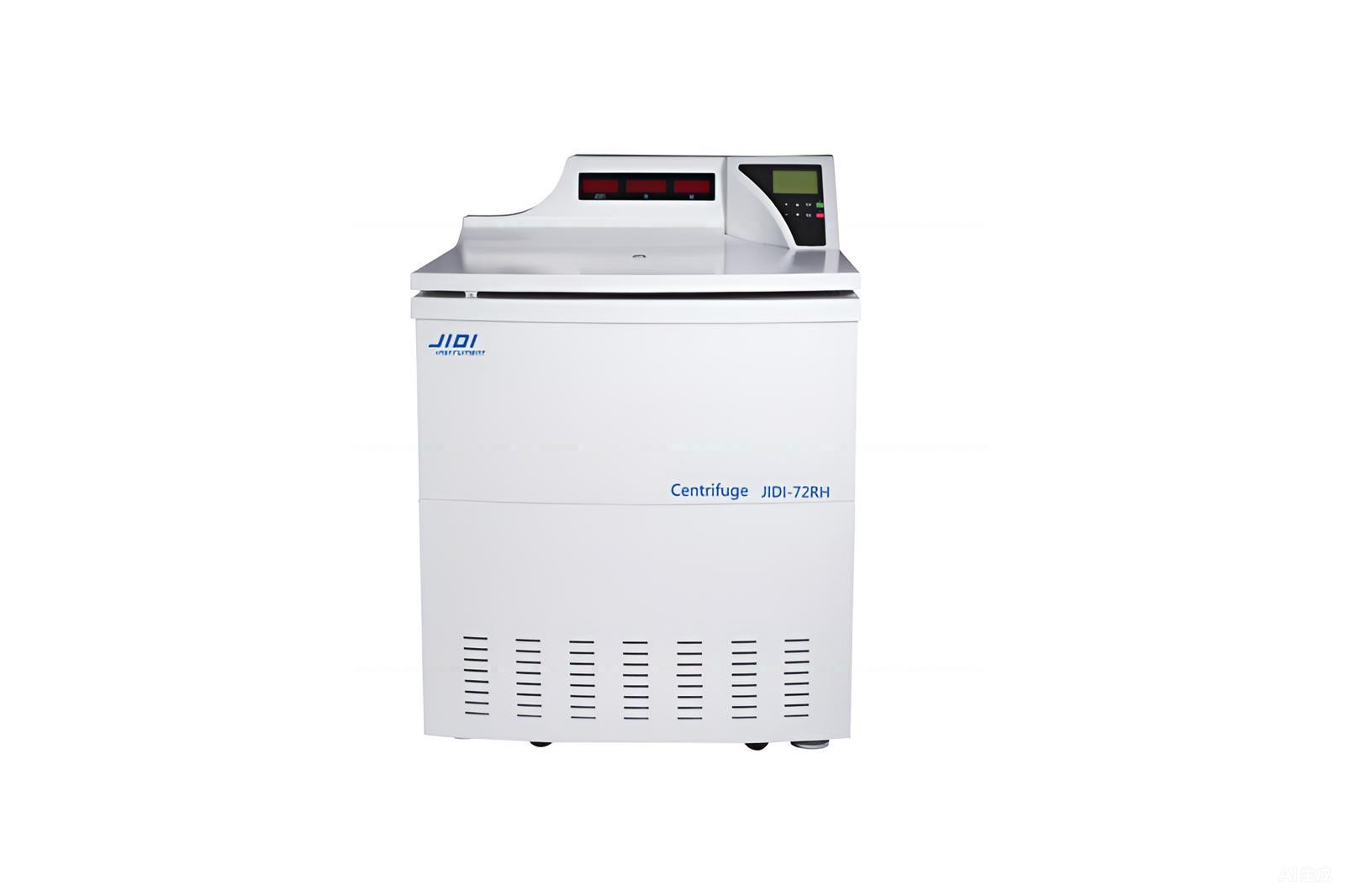

JIDI-72RH Low-Speed Refrigerated Centrifuge

The JIDI-72RH is a high-performance, low-speed refrigerated centrifuge designed for large-capacity sample separation. With intelligent temperature control, advanced safety features, and excellent durability, it is an ideal solution for clinical laboratories, blood banks, and the biopharmaceutical industry.

---

Key Specifications

• Model: JIDI-72RH
• Maximum Speed: 8,000 rpm
• Maximum RCF: 12,166 × g
• Timer Range: 1 min – 23 hr 59 min
• Maximum Capacity: 6 × 2,400 ml
• Speed Accuracy: ±10 rpm
• Temperature Range: -20°C to +40°C
• Temperature Accuracy: ±1.0°C
• Power Supply: AC 220V ±22V, 50Hz, 50A
• Power Consumption: 7,500W
• Noise Level: ≤65 dB(A)
• Chamber Diameter: Φ700 mm
• Product Weight (excluding rotor): 500 kg
• Dimensions (L × W × H): 975 × 860 × 1180 mm
• Packing Size: 1100 × 980 × 1400 mm

---

Key Features

Extended Service Life

• Uses an imported, eco-friendly R404a non-fluorine refrigerant.
• Dual temperature control system enables both cooling and heating modes.
• High-torque inverter motor delivers direct drive with zero carbon dust, extending equipment lifespan.
• Advanced heat dissipation design ensures consistent performance.

Robust Safety Mechanisms

• Includes over-temperature, over-speed, imbalance detection, and electronic door lock protections.
• Reinforced with a three-layer protective casing to ensure user and machine safety.

High-Capacity Processing

• Can process 12 units of 400 ml triple/quadruple blood bags in a single run.
• Supports 6 × 2,400 ml centrifuge bottles, allowing up to 14,400 ml of sample separation per cycle.
• The 6×2×1000 ml swing-out rotor makes it ideal for high-throughput biopharmaceutical applications.

---

Rotor Accessories

Additional rotor sizes and configurations available upon request.
