SKU: JIDI-75RH
Low Speed Refrigerated Centrifuges
Available on Backorder
Categories: Floor standing centrifugesSKU: JIDI-75RH
Product Enquiry

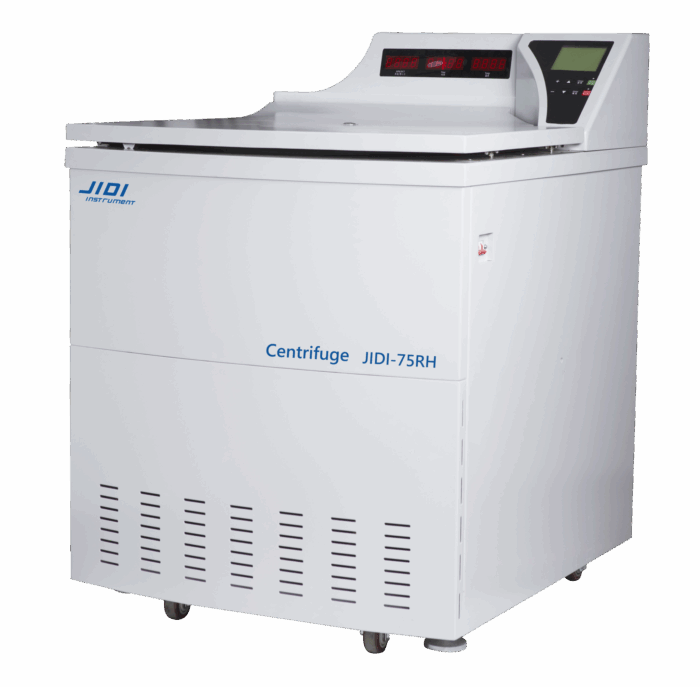

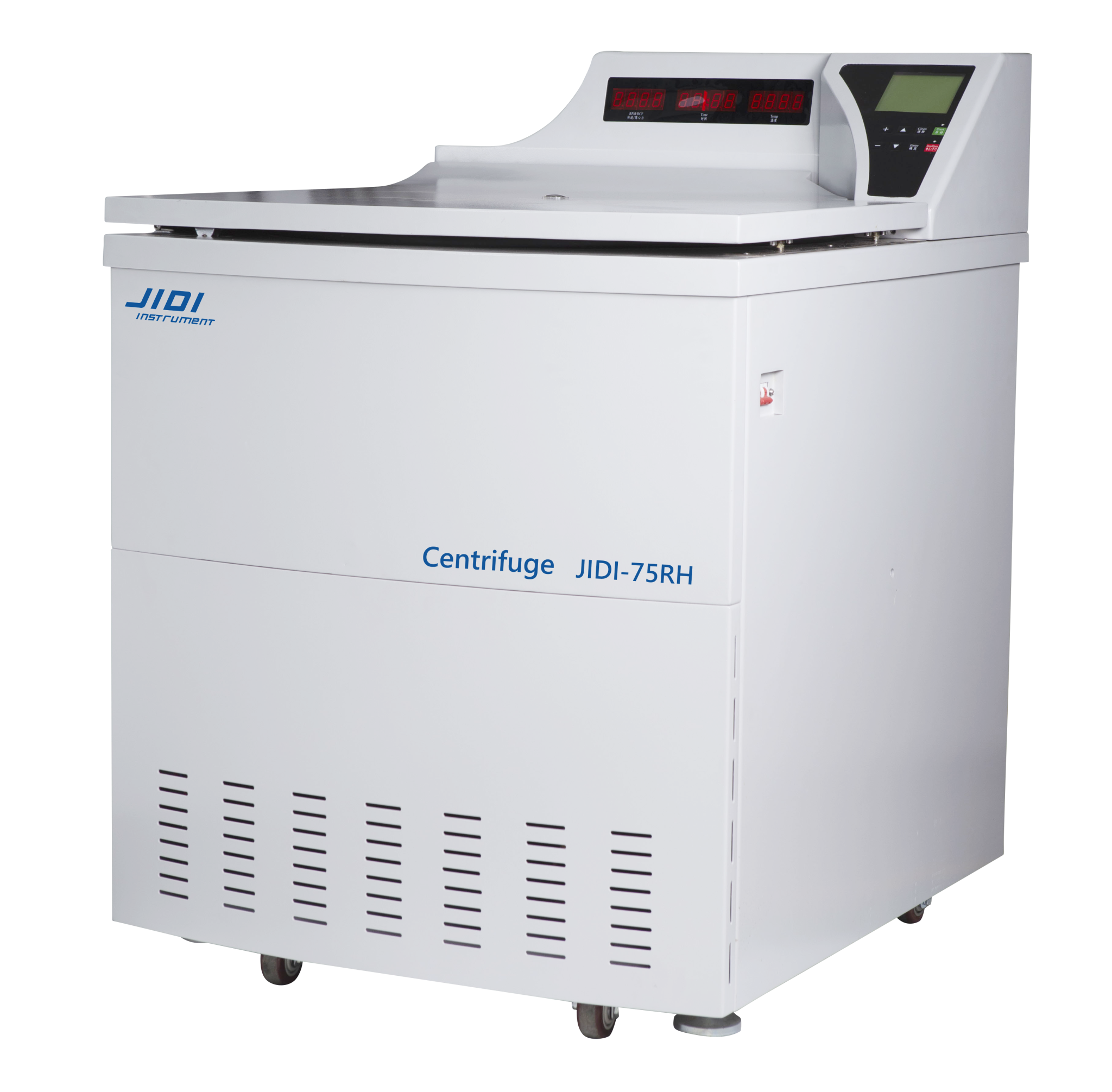

JIDI-75RH Low-Speed Refrigerated Centrifuge
The JIDI-75RH is a high-capacity, low-speed refrigerated centrifuge engineered for large-volume sample processing in clinical, biopharmaceutical, and research laboratories. With advanced temperature control, intelligent user interface, and unmatched load capacity, it delivers efficient, reliable, and safe separation for high-throughput operations.
Key Specifications
- Model: JIDI-75RH
- Maximum Speed: 8,000 rpm
- Maximum RCF: 12,166 × g
- Timer Range: 1 min – 23 hr 59 min
- Maximum Capacity: 8 × 2,400 ml
- Speed Accuracy: ±10 rpm
- Temperature Range: -20°C to +40°C
- Temperature Accuracy: ±1.0°C
- Power Supply: AC 220V ±22V, 50Hz, 50A
- Power Consumption: 7,500W
- Chamber Diameter: Φ700 mm
- Noise Level: ≤65 dB(A)
- Weight (excluding rotor): 500 kg
- Dimensions (L × W × H): 975 × 860 × 1180 mm
- Packing Size: 1100 × 980 × 1400 mm
Key Features
Intelligent Touchscreen Interface
- Equipped with a full-color LCD screen and microcomputer control.
- Real-time display of set and running parameters.
- Supports bilingual operation (English/Chinese).
- Automatic RCF calculation and visual display of speed/temperature curves.
Customizable Programs
- Users can set and save up to 40 programmable protocols.
- Parameters like speed, time, RCF, and temperature are adjustable even during operation.
- Acceleration and deceleration can be adjusted in 9 levels, with the option for free stop.
Long-Lasting Performance
- High-torque inverter motor with direct drive—no carbon brush contamination.
- Eco-friendly R404a refrigerant with efficient dual cooling/heating system.
- Enhanced cooling and ventilation design increases compressor and motor lifespan.
Comprehensive Safety System
- Features include:
- Over-temperature protection
- Over-speed protection
- Electronic safety door lock
- Imbalance detection
- Constructed with a three-layer protective casing for maximum operator and equipment safety.
Exceptional Load Capacity
- Supports up to 8 × 2,400 ml bottles, processing up to 14,400 ml per cycle.
- Can separate 12 units of 400 ml triple or quadruple blood bags in a single run.
- Ideal for high-volume applications in blood banking and biopharmaceutical production.
Rotor Accessories
Additional rotor sizes available upon request.
| No. | Rotor Type | Max Speed (rpm) | Max RCF ×g | Capacity |
|---|---|---|---|---|
| 1 | Swing-out rotor | 4,200 | 5,000 | 8 × 2 × 1000 ml |
| 2 | Swing-out rotor | 4,200 | 5,600 | 8 × 2400 ml |
| 3 | Fixed-angle rotor | 8,000 | 11,680 | 8 × 500 ml |
| 4 | Fixed-angle rotor | 7,200 | 12,166 | 8 × 1000 ml |
