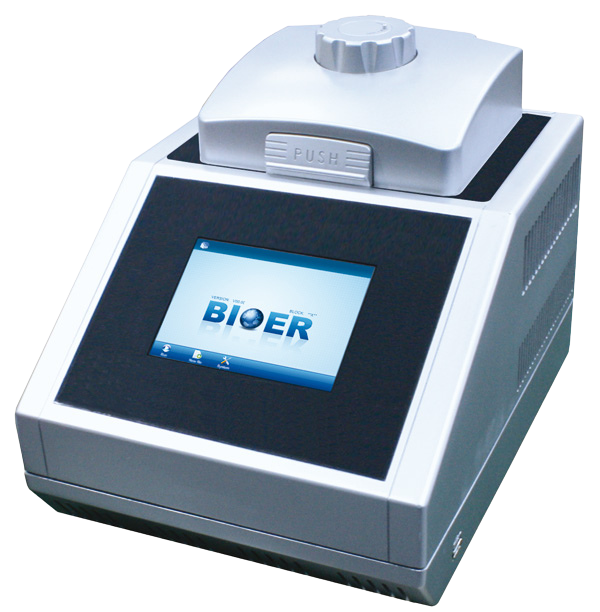

LifeECO Gradient Thermal Cycler

The LifeECO is an economical, high-performance PCR thermal cycler designed for reliable gene amplification in teaching, routine lab work, and institutional testing. With a durable steel body, simple operation, and support for a wide range of consumables, it delivers excellent thermal uniformity and user-friendly programmability.

Features/functions:

• Designed for qualitative PCR with gradient function (up to 30 °C difference)
• Sturdy steel frame for excellent vibration and transport resistance
• Compact and easy to operate—ideal for teaching labs and routine PCR
• Compatible with 96-well PCR plates, 0.2 mL tubes, and strip tubes
• Hot-lid with adjustable temperature and automatic shut-off
• Gradient PCR function for efficient optimization of amplification conditions
• Stores up to 99 programs, with 16 procedures and 5 segments each
• Modular, easy-to-maintain design for on-site component replacement
• Suitable for batch use via RS232 or USB computer connection

Specifications:

• Sample Capacity: 96-well × 0.2 mL tubes, 96-well plates (full skirt, semi-skirt, or none), 12×8 tube strips
• Temperature Range: 4–105 °C
• Max. Heating/Cooling Rate: ≥4 °C/sec
• Temperature Accuracy: ≤±0.3 °C
• Temperature Uniformity: ≤±0.3 °C
• Gradient Temperature Range: 30–105 °C
• Gradient Temperature Difference: 1–30 °C
• Max. Cycle Number: 99 (suitable for nested PCR)
• Time Increment/Decrement: 0–9 min 59 s (for Long PCR)
• Temperature Increment/Decrement: 0.1–9.9 °C (for Touchdown PCR)
• Hot Lid Temperature: 30–110 °C (adjustable, minimum 5 °C above ambient)
• Communication Port: USB
• Power Supply: 230V, 50 Hz, 600W
• Dimensions: 345 × 250 × 270 mm
• Weight: 8 kg
• Certifications: Ferrotec Peltier / MET / CE / EMC / RoHS2.0 / PICC Product Quality Liability Insurance
