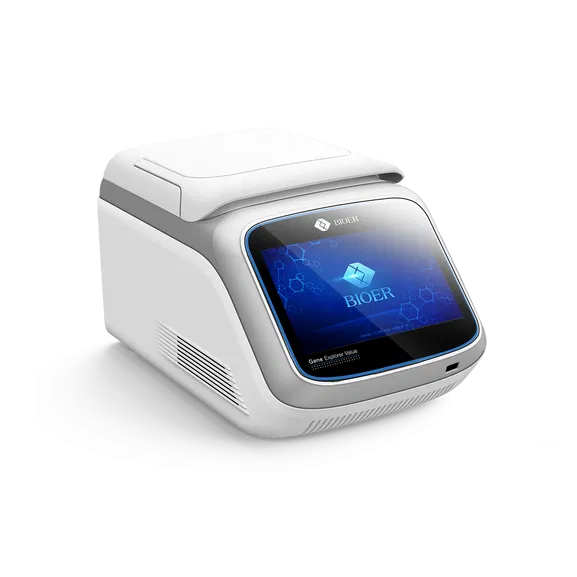

GeneExplorer Gradient Thermal Cycler

The GeneExplorer GE-96G is a robust, feature-rich thermal cycler designed for high-accuracy PCR workflows across research, clinical, and routine testing laboratories. It offers advanced gradient functionality, exceptional thermal performance, and app-based remote monitoring — all in a compact, durable design.

Features/functions:

• Sample capacity: 96 × 0.2 mL tubes
• High-speed heating (3.5 °C/sec) and cooling (2.5 °C/sec) for faster run cycles
• Advanced TAS edge temperature compensation ensures temperature accuracy ≤ 0.1 °C
• Powerful gradient function with zone temperature control and a gradient span of 1–30 °C
• Automatic hot lid adjusts height and pressure to fit various tubes, preventing reagent evaporation
• Remote app monitoring and control via Wi-Fi (iOS/Android)
• Local area network (LAN) support for centralized management of multiple units
• Power-off data retention to safeguard runs during outages
• 8″ responsive touchscreen with intuitive UI
• Durable steel housing with one-touch lid locking mechanism

Specifications:

• Temperature Range: 4–105 °C (min. resolution: 0.1 °C)
• Temperature Accuracy: ≤ ±0.2 °C
• Temperature Uniformity: ≤ ±0.3 °C
• Hot-lid Temperature Range: 30–110 °C
• Gradient Temperature Difference Range: 1–30 °C
• Heating Rate: 3.5 °C/sec
• Cooling Rate: 2.5 °C/sec
• Display: 8″ colour touchscreen
• Memory: ≥2000 programs onboard; unlimited via USB drive
• Network Connections: USB / LAN / Wi-Fi
• Mobile App Compatibility: iOS and Android
• Hot-lid Mode: One-time locking with automatic adjustment
• Power Supply: 230V, 50 Hz, 600 W
• Dimensions: 420 × 269 × 254 mm
• Weight: 13 kg
