Fully-Automated Nucleic Acid Purification System

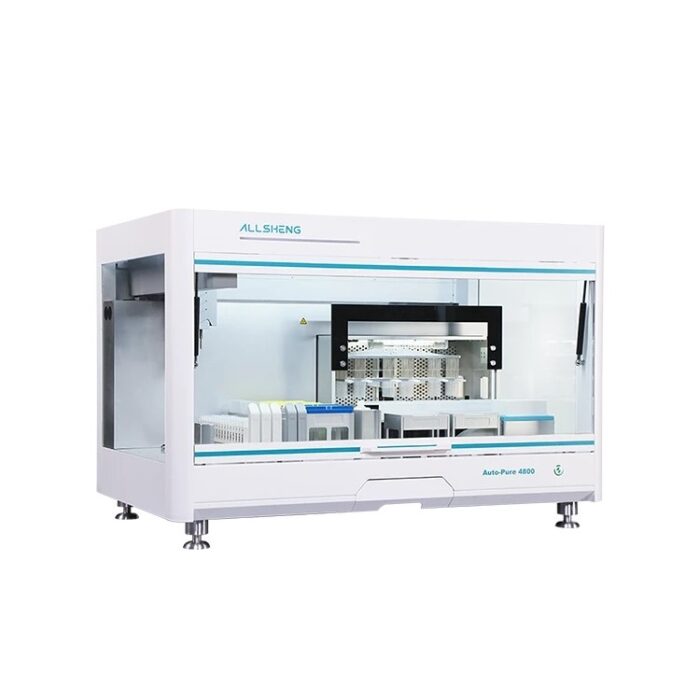

Auto-Pure 4800 Nucleic Acid Purification System

The Auto-Pure 4800 is a high-throughput, fully automated workstation for nucleic acid extraction and PCR setup, built around the magnetic bead method. It automates the full workflow including pipetting, lysis, washing, elution, and PCR reaction setup, enabling a true one-stop process with no manual intervention. It processes up to 48 samples per run with a maximum 1 mL reaction system, improving efficiency while helping deliver more consistent, repeatable results through standardised automation.

Key benefits and features

• One workstation for extraction + PCR setup: automated reagent transfer, sample transfer, nucleic acid extraction and PCR setup
• Fast turnaround: extraction time for 48 samples: 15–30 min (reagent dependent); sample pipetting time for 48 samples: 13 min
• Cross-contamination prevention: negative pressure filter system to reduce aerosol contamination; full coverage UV sterilisation for the worktable
• High-precision liquid handling: 3-channel pipetting arm (2 × 1000 µL + 1 × 200 µL) with pressure detection and adjustable parameters for different liquids
• Heating for lysis and elution: built-in temperature control up to RT–120 °C
• Flexible layout and PCR setup capacity: supports 2 × 96 PCR plates or 24 × 8 strip PCR tubes
• Barcode and information management: supports external USB scanner with barcode scanning/auto scanning functions

(Full performance and ordering details are available in the downloadable spec sheet.)

Specifications
