SKU: YD-1900

Frozen Slicer

In Stock

Categories: SKU: YD-1900

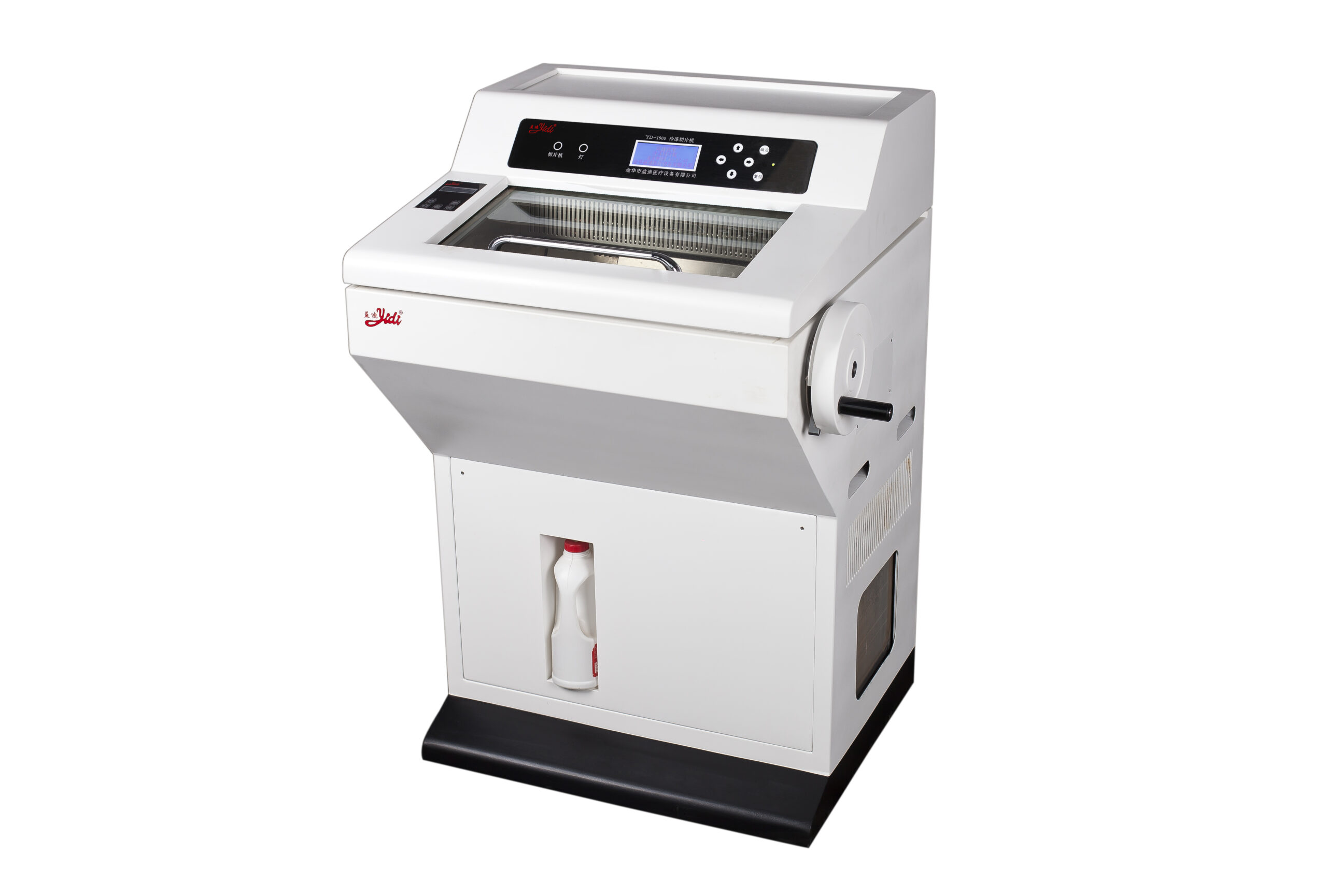

Fully Automatic Cryostat Microtome – High Precision, Intelligent Control, and Energy Efficiency

Enhance your lab’s sectioning precision and workflow with the Fully Automatic Cryostat Microtome, designed for medical pathology, biological research, and frozen tissue sectioning. Featuring intelligent temperature control, LCD touchscreen interface, and multi-point refrigeration, this cryostat offers fast cooling, accurate slicing, and unmatched efficiency for laboratories that demand consistency and reliability.


🔧 Key Features

  • Smart LCD Touchscreen: Displays section thickness, feed distance, timing, fumigation settings, and defrosting functions.
  • Five-Point Refrigeration System: Dual imported compressors provide rapid cooling for cryochamber, CoolClamp, freezing knife, and two specimen discs. Holds and freezes up to 12 samples simultaneously.
  • Intelligent Power-Saving Sleep Mode: Maintains chamber temperature and resumes slicing temperature within 30 minutes.
  • Anti-Roll Slide Guide: Ensures smooth, flat sections without curling.
  • Stepper Motor Feed System: Offers stable, smooth movement of the specimen clamp.
  • Versatile Blade Options: Compatible with both high/low profile disposable blades and steel knives.
  • Frost-Free Heated Glass Door: Clear visibility and reduced condensation during operation.
  • Lockable Handwheel: Adds operational safety at any position.

❄️ Advanced Cryogenic Performance

Component Temperature Range
Cryochamber -5°C ~ -35°C (±2°C)
Specimen Holder -10°C ~ -55°C (±2°C)
CoolClamp -5°C ~ -40°C (±2°C)
Freezing Knife -5°C ~ -40°C (±2°C)
Freeze Discs Capacity ≥12 samples
Quick-Freezing Points ≥1

📏 Technical Specifications

  • Section Thickness Range:
  • 0.5–2μm (0.5μm increments)
  • 2–10μm (1μm increments)
  • 10–20μm (2μm increments)
  • 20–50μm (5μm increments)
  • 50–100μm (10μm increments)
  • Trimming Thickness Range:
  • 5–10μm (5μm increments)
  • 10–100μm (10μm increments)
  • 100–200μm (20μm increments)
  • 200–500μm (50μm increments)
  • Maximum Section Size: 30 × 30mm
  • Horizontal Specimen Feed: 20mm
  • Vertical Specimen Stroke: 60mm
  • Specimen Retraction: 20μm (total retraction 500μm)
  • Feed Speed: 0.8mm/s
  • Sample Orientation: XY ±8°
  • Knife Angle: 0–15°
  • Precision Error: ±1μm
  • Voltage & Frequency: 220V/50Hz or 110V/60Hz
  • Dimensions (L × W × H): 600 × 640 × 1150mm
  • Net Weight: 130kg
