SKU: JIDI-25KR
Floor-centrifuge with refrigerator
Available on Backorder
Categories: Floor standing centrifugesSKU: JIDI-25KR
Product Enquiry

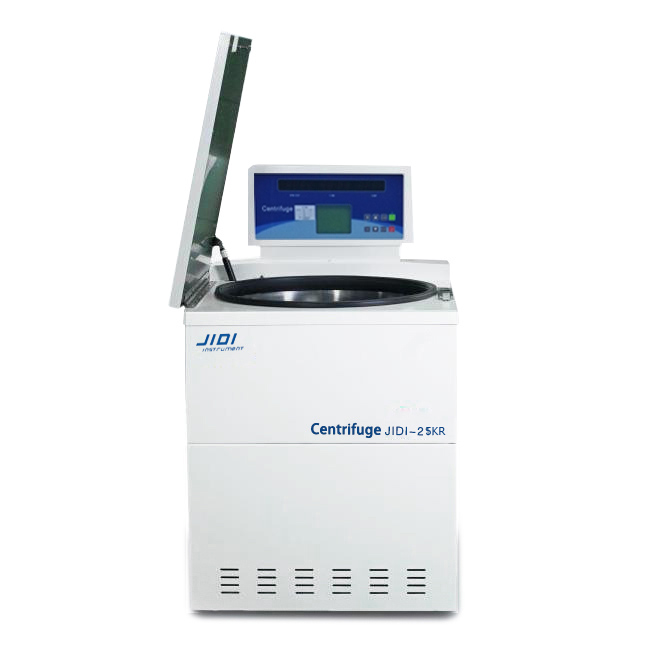

JIDI-25KR Floor Centrifuge with Refrigeration
The JIDI-25KR is a high-capacity, high-speed floor-standing centrifuge with integrated refrigeration, built for maximum performance and reliability in research, clinical, and industrial environments. Designed to handle large volumes with high centrifugal force, it offers intelligent controls, robust safety features, and energy-efficient cooling.
Key Specifications
- Model: JIDI-25KR
- Maximum Speed: 25,000 rpm
- Maximum RCF: 68,500 × g
- Timer Range: 1 min – 23 hr 59 min
- Maximum Capacity: 4 × 1000 ml
- Speed Accuracy: ±10 rpm
- Temperature Range: -20°C to +40°C
- Temperature Accuracy: ±1.0°C
- Power Supply: AC 220V ±22V, 50Hz, 35A
- Power Consumption: 4,500W
- Noise Level: ≤60 dB(A)
- Chamber Diameter: Φ450 mm
- Weight (excluding rotor): 280 kg
- Dimensions (L × W × H): 840 × 710 × 1250 mm
- Packing Size: 950 × 840 × 1390 mm
Key Features
Ultra-High-Speed Performance
- Achieves up to 25,000 rpm and 68,500 × g.
- Compatible with high-strength titanium alloy rotors for optimal reliability.
Self-Locking Rotor System
- Rotor locks automatically during operation and releases automatically upon stopping.
- Tool-free rotor changes for easy loading/unloading.
- Flexible bearing drive for quiet, vibration-free spinning.
Intelligent Rotor Recognition
- Fully automated rotor detection system.
- Automatically adjusts speed limits based on rotor capacity for enhanced safety.
Customizable Operation with Memory Programs
- Supports up to 40 programmable data sets.
- Allows fine control of speed, time, temperature, and RCF for varied experimental needs.
Dual Electronic Safety Door Locks
- Automatically opens after run completion for effortless access.
- Enhances safety, reliability, and operational convenience.
Multi-Screen Display Interface
- 5-inch high-definition LCD screen + LED digital display.
- Simultaneous real-time viewing of set and operating parameters.
Advanced Speed Control
- Offers 13 acceleration/deceleration levels, including a free stop mode.
- Built-in 9-level soft braking prevents sample resuspension.
High-Efficiency Refrigeration System
- Eco-friendly, non-fluorine R404a refrigerant.
- Unique cooling system with dual heating/cooling capability.
- Maintains chamber temperature as low as -4°C during high-speed runs.
- External venting ensures stable temperature control.
Comprehensive Safety & Diagnostics
- Explosion-proof dual-door lock system.
- Safety protections include:
- Over-temperature
- Over-speed
- Overload
- Overheating
- Imbalance detection
- Intelligent fault diagnosis for operational safety.
Rotor Accessories
Custom rotor sizes available on request.
| No. | Rotor Type | Max Speed (rpm) | Max RCF ×g | Capacity |
|---|---|---|---|---|
| 1 | Fixed-angle rotor | 25,000 | 68,500 | 24 × 1.5 ml (Titanium) |
| 2 | Fixed-angle rotor | 23,000 | 60,460 | 18 × 10 ml |
| 3 | Fixed-angle rotor | 21,000 | 52,356 | 8 × 50 ml (Round, Titanium) |
| 4 | Fixed-angle rotor | 20,000 | 46,420 | 8 × 50 ml (Round) |
| 5 | Fixed-angle rotor | 18,000 | 33,506 | 6 × 50 ml (Conical) |
| 6 | Fixed-angle rotor | 14,000 | 30,074 | 6 × 250 ml |
| 7 | Fixed-angle rotor | 13,000 | 19,830 | 8 × 100 ml |
| 8 | Fixed-angle rotor | 10,000 | 17,700 | 6 × 500 ml |
| 9 | Swing-out rotor | 8,000 | 12,040 | 4 × 1000 ml |
