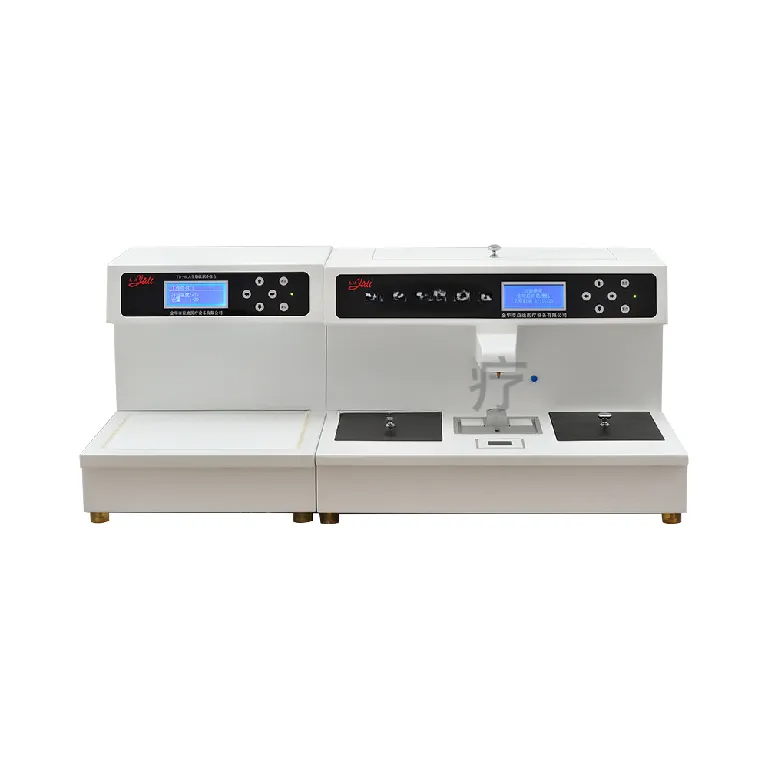

YD-6LA Paraffin Embedding System with Cold Plate
Advanced Modular Tissue Embedding Station for Histology and Pathology Labs
The YD-6LA Paraffin Embedding System is a cutting-edge, integrated tissue embedding solution designed to deliver precise performance, fast heating, and user-friendly controls for histology, pathology, and life science laboratories. This system combines high-capacity paraffin handling with cold plate integration and intelligent automation, making it the ideal choice for high-throughput environments.
Key Features
- Integrated Design & Long Lifespan
Engineered for durability and reliability with no wax dripping, exceptional sealing properties, and high safety standards. - Nano-Tech Fast & Even Heating
The newest heating materials and nano-technology ensure rapid and uniform heat distribution across the paraffin bath and working surface. - Advanced Control System
Equipped with button panel interface and LCD display, operators can monitor and control temperature for the paraffin bath, thermostatic bath, and nozzle with ease. - Programmable Auto On/Off Scheduling
Includes memory and auto-recover functions, enabling full 24-hour scheduling for operational readiness and energy efficiency. - Large-Capacity Paraffin Pan
The 6000ml paraffin bath can accommodate up to 140 cassettes or 120 molds, reducing refill frequency. - Dual Forceps Heating Ports
Features 3 forceps heating holes on each side of the paraffin nozzle to streamline embedding workflow. - Flexible Configuration
The embedding and cooling modules can be used together or independently depending on workflow needs. - Low-Voltage Lighting & Cold Spot Technology
Integrated LED lighting system and a small cold spot on the working table support tissue alignment and flattening. - Multilevel Safety Protection
A robust safety system guards against overheating and ensures stable performance in variable lab conditions. - Optional Add-Ons
Add magnifying lamp, extra paraffin, or embedding cassettes to customize for your laboratory needs.
Technical Specifications
| Specification | Details |
|---|---|
| Paraffin Pan Capacity | 6000 ml |
| Temperature Range (Paraffin Pan / Work Table / Warming Box) | 0℃ ~ 99℃ (individually adjustable) |

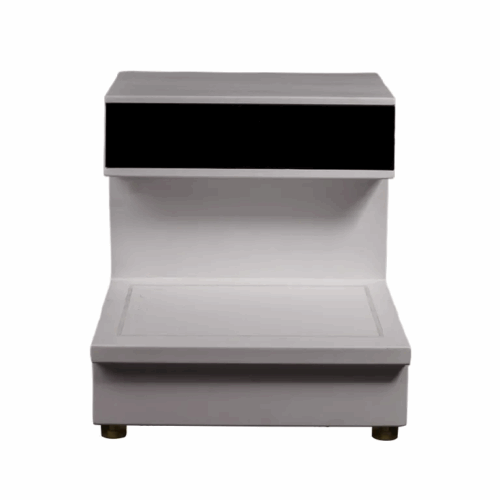

| Cold Plate Freezing Range | 0℃ ~ -20℃ |
| Cold Spot Freezing Range | 0℃ ~ -10℃ |
| Control Mode | Manual Touch Plate or Foot Switch |
| Cassette/Mold Capacity | ~140 cassettes or 120 molds per reservoir |
| Cold Plate Capacity | 50–60 molds or cassettes |
| Environmental Temperature | 0℃ ~ 40℃ |
| Time Control | 24-Hour Programmable On/Off |
| Voltage & Frequency | AC110V–220V ±10%, 50Hz/60Hz |
| Power Consumption | 1800W (dispenser), 130W (cold plate) |
| Dimensions (L×W×H) | Embedding Center: 60×52×36.5 cm Cold Plate: 36×52×36.5 cm |
| Weight (Gross/Net) | YD-6D: 65kg/35kg YD-6LA: 110kg/65kg |
Included Accessories
- 1 × Foot Switch
- 4 × Tissue Molds
- 1 × Power Cable
- 2 × Fuses
Optional Accessories
- Magnifying Glass with Lamp
- Paraffin
- Cassettes
Why Choose the YD-6LA Embedding System?
Built for efficiency, automation, and flexibility, the YD-6LA is ideal for labs seeking reliable performance and consistent results. Whether used for routine histological embedding or specialized research, it delivers unmatched usability, safety, and throughput in one compact system.
