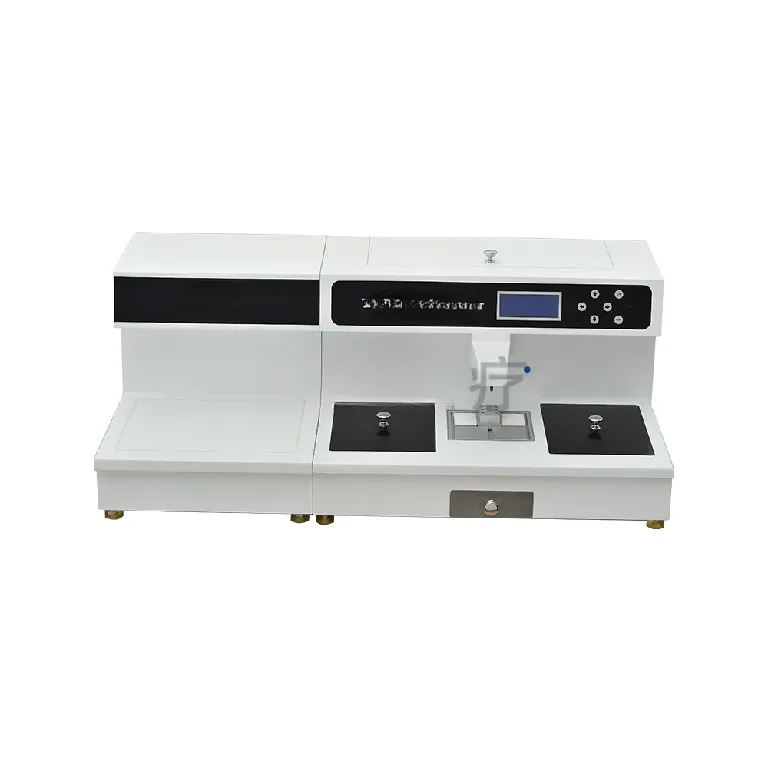

YD-6D/YD-6L Paraffin Embedding System – Precision Tissue Embedding with Smart Control Technology
The YD-6D/YD-6L Paraffin Embedding System is a high-performance solution for histology, pathology, and biological laboratories, delivering unmatched precision and efficiency in tissue embedding and freezing workflows. Designed with advanced nanotechnology, programmable automation, and flexible modular structure, this system ensures smooth and consistent paraffin embedding operations for research, medical, and teaching environments.
Key Features
- Advanced Heating Technology
Built with new-generation heating materials and button panel control, offering reliable and energy-efficient heating performance. - Modular Design
The system includes both embedding machine and cold plate modules, which can be operated together or independently for flexible workspace setup. - Automated Processor Control
Set and customize the start time and working temperature for any day with intelligent automation — ideal for labs requiring consistent daily operation. - High-Speed Nano Heating
Special nano-coating technology ensures rapid and even heating across all heated surfaces, reducing waiting time and improving workflow. - User-Friendly LCD Interface
The clear LCD display shows real-time temperatures for the paraffin bath, thermostatic bath, and paraffin nozzle — simplifying monitoring and adjustments. - Touch-Activated Controls
Includes inductive headlamp and metal touch switch: activate paraffin flow using tweezers or knives — completely hands-free for sterile, efficient handling. - Automatic Temperature Memory
Remembers preset temperature values and automatically resumes operation according to your schedule, even after shutdowns. - High Capacity & Practical Storage
The large 6000ml paraffin bath and hot reservoirs can hold up to 120 molds or 140 cassettes. The collection drawer neatly gathers excess wax from the worktable. - Multilevel Safety Protection
Equipped with multiple safety layers, including overheating protection and secure wax flow control. - Optional Enhancements
Add-ons like magnifying lamp, high-quality paraffin, and extra cassettes are available to enhance precision and visibility.
Technical Specifications
| Component | Specification |
|---|---|
| Paraffin Bath Capacity | 6000 ml |
| Temperature Range (All Heated Areas) | 0℃ ~ 99℃ (individually adjustable) |
| Freezing Temperature Range | 0℃ ~ -20℃ |
| Cold Plate Capacity | 40–60 tissue molds |
| Hot Reservoir Capacity | 120 molds or 140 cassettes |
| Control Modes | Auto / Foot Switch |
| Power Consumption | Dispenser: 1800W / Cold Plate: 130W |
| Voltage & Frequency | AC110V–220V ±10%, 50Hz/60Hz |
| Power Rating | < 1KVA |
| Time Control | 24-hour programmable on/off |
| Dimensions (Embedding Unit) | 60 × 52 × 36.5 cm |
| Dimensions (Cold Plate) | 36 × 52 × 36.5 cm |
| Weight (YD-6D) | Gross: 65kg / Net: 35kg |
| Weight (YD-6L) | Gross: 110kg / Net: 65kg |
Included Accessories
- 1 × Foot Switch
- 4 × Tissue Molds
- 1 × Power Wire
- 2 × Fuses
Optional Add-ons:
- Magnifying Glass with Lamp
- Paraffin Blocks
- Cassette Packs
Optimized for Precision & Productivity
The YD-6D/YD-6L Embedding Center is the ideal choice for laboratories seeking automated tissue embedding systems with precise thermal control, modular design, and energy-efficient performance. Whether you’re performing high-volume pathology work or detailed research studies, this system enhances productivity, consistency, and convenience at every step.
