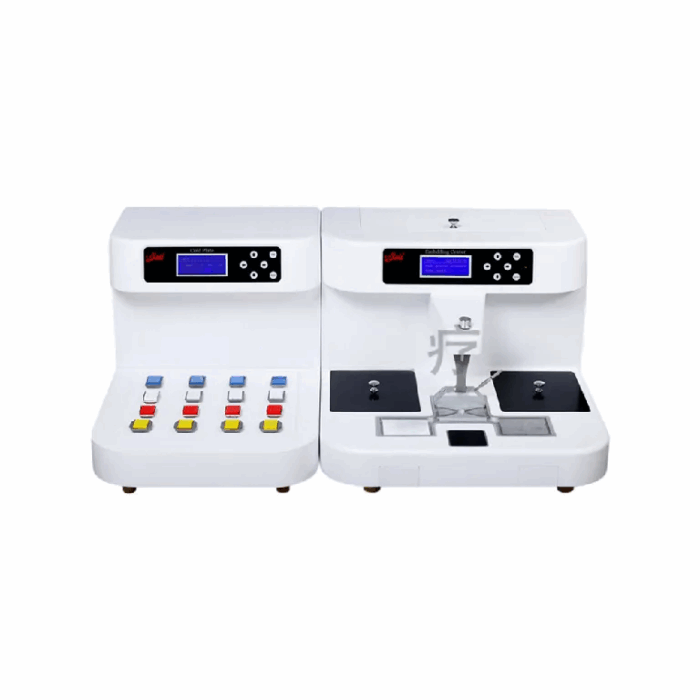

YD-6K Paraffin Embedding Center with Cold Plate – High Precision, Fast Heating, and Reliable Operation
Designed to meet the demanding needs of pathology and histology labs, the YD-6K Paraffin Embedding System offers a fully integrated solution combining advanced heating, intuitive controls, and precise temperature regulation. Engineered with cutting-edge nano heating technology, this system ensures fast, even heating and long-term operational stability.
Key Features of the YD-6K Paraffin Embedding System
- Integrated & Modular Design
Includes both the embedding center and cold plate, which can be flexibly configured for various lab setups. - High Efficiency & Safety
Features fast heat-up time, excellent sealing, no wax dripping, and multi-level security protection for consistent performance and safety. - Smart Control Panel with LCD Display
A user-friendly interface displays real-time temperatures of the paraffin bath, thermostatic bath, and paraffin nozzle for easy monitoring and control. - Advanced Automation & Memory Function
Automated on/off scheduling with 24-hour timer, memory retention, and auto-recovery to maintain temperature presets even after power interruptions. - Precision Cold Plate & Cold Spot Zone
Includes a cold plate cooling to -20°C and a small cold spot in the worktable reaching -10°C for tissue cooling. - Enhanced Usability
- Adjustable wax flow
- Low-voltage lighting system
- 3 heating holes for forceps near the paraffin nozzle
- Optional magnifying glass with lamp
- Collection drawer for wax overflow
Technical Specifications
| Component | Specification |
|---|---|
| Paraffin Pan Capacity | 6000 ml |
| Paraffin Pan Temperature Range | 0 – 99°C |
| Working Table Temperature | 0 – 99°C |
| Warming Box (Left/Right) | 0 – 99°C |
| Cold Plate Temp Range | 0 – -20°C |
| Cold Spot Temp in Table | 0 – -10°C |
| Control Mode | Manual touch plate or foot switch |
| Hot Reservoir Capacity | ~120 molds or 140 cassettes each |
| Cold Plate Capacity | ~50–80 molds or cassettes |
| Time Control | Programmable 24h on/off |
| Voltage | AC110V–220V ±10% |
| Frequency | 50Hz / 60Hz |
| Power Consumption | 1800W (dispenser) / 130W (cold plate) |
| Dimensions (L×W×H) | Embedding: 60×66×42cm; Cold Plate: 47×66×42cm |
| Gross / Net Weight | 50/25kg (Cold Plate); 115/60kg (YD-6K) |
Included Accessories
- 1 Foot Switch
- 4 Tissue Molds
- 1 Power Wire
- 2 Fuses
Optional Accessories
- Magnifying glass with lamp
- Paraffin wax
- Cassettes
Perfect For
This paraffin embedding workstation is ideal for histology, biopsy preparation, medical diagnostics, and research labs, offering precision heating, intuitive usability, and long-lasting reliability.
Enhance your lab’s efficiency and accuracy with the YD-6K Paraffin Embedding System – designed for professionals who demand superior performance and intelligent control.
