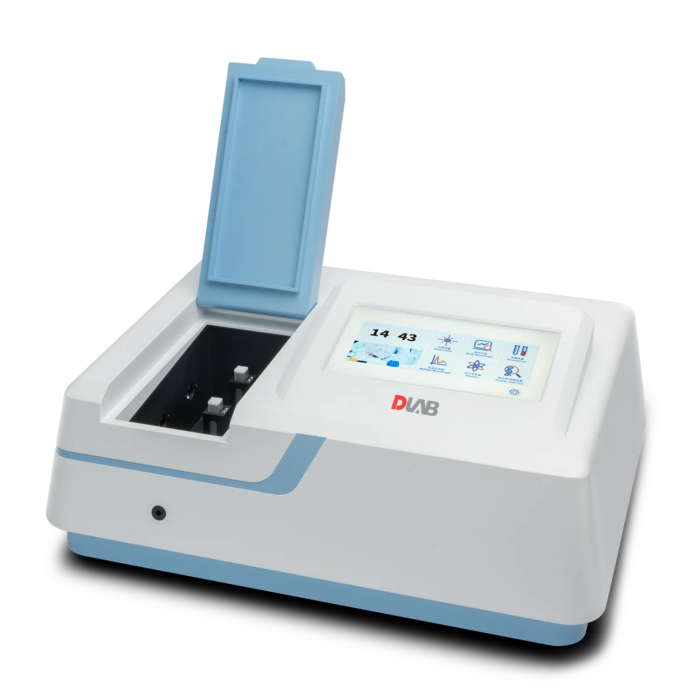

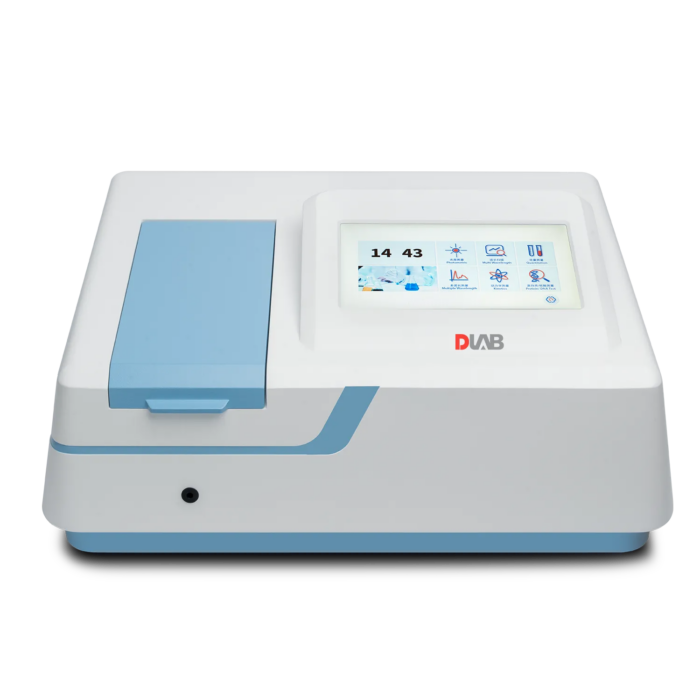

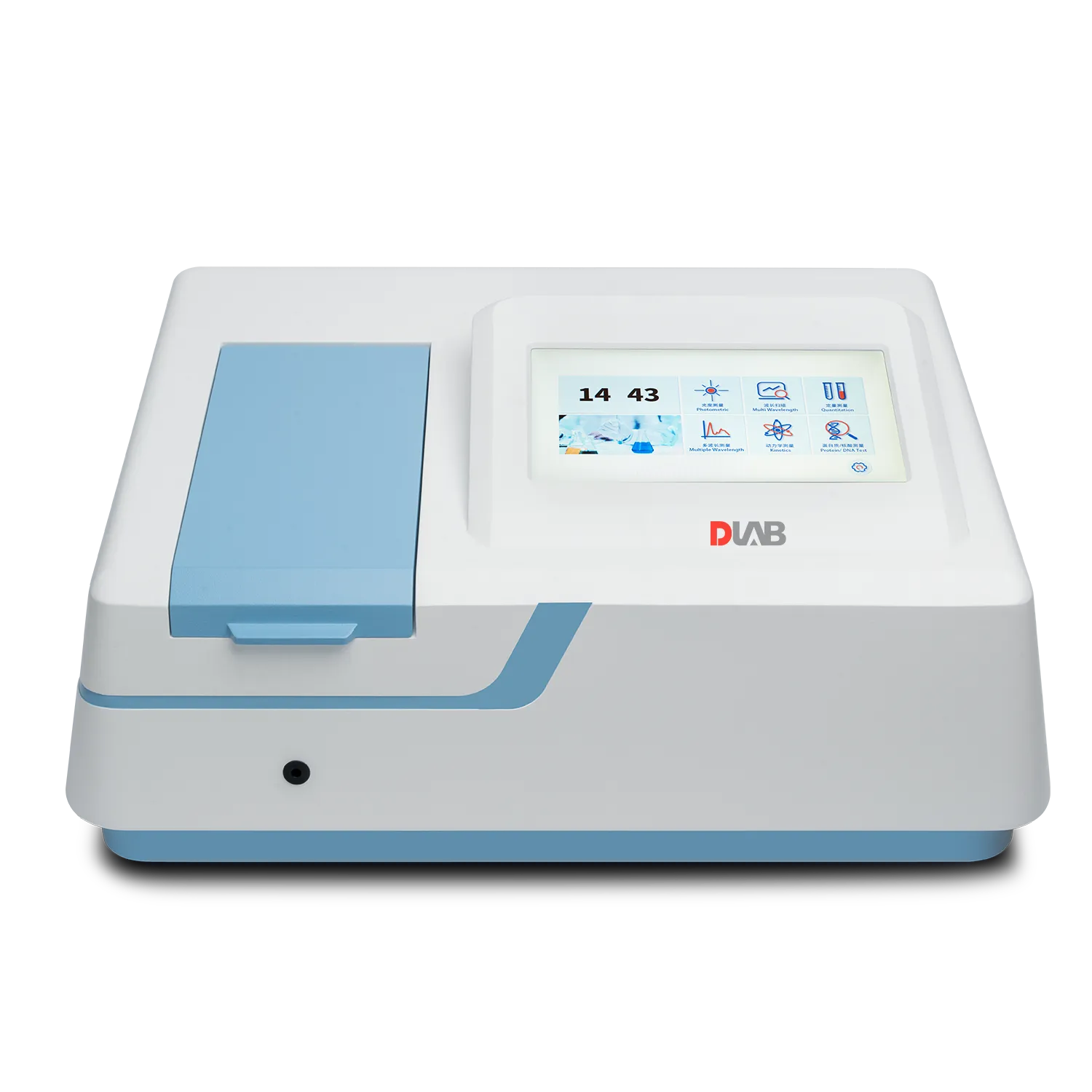

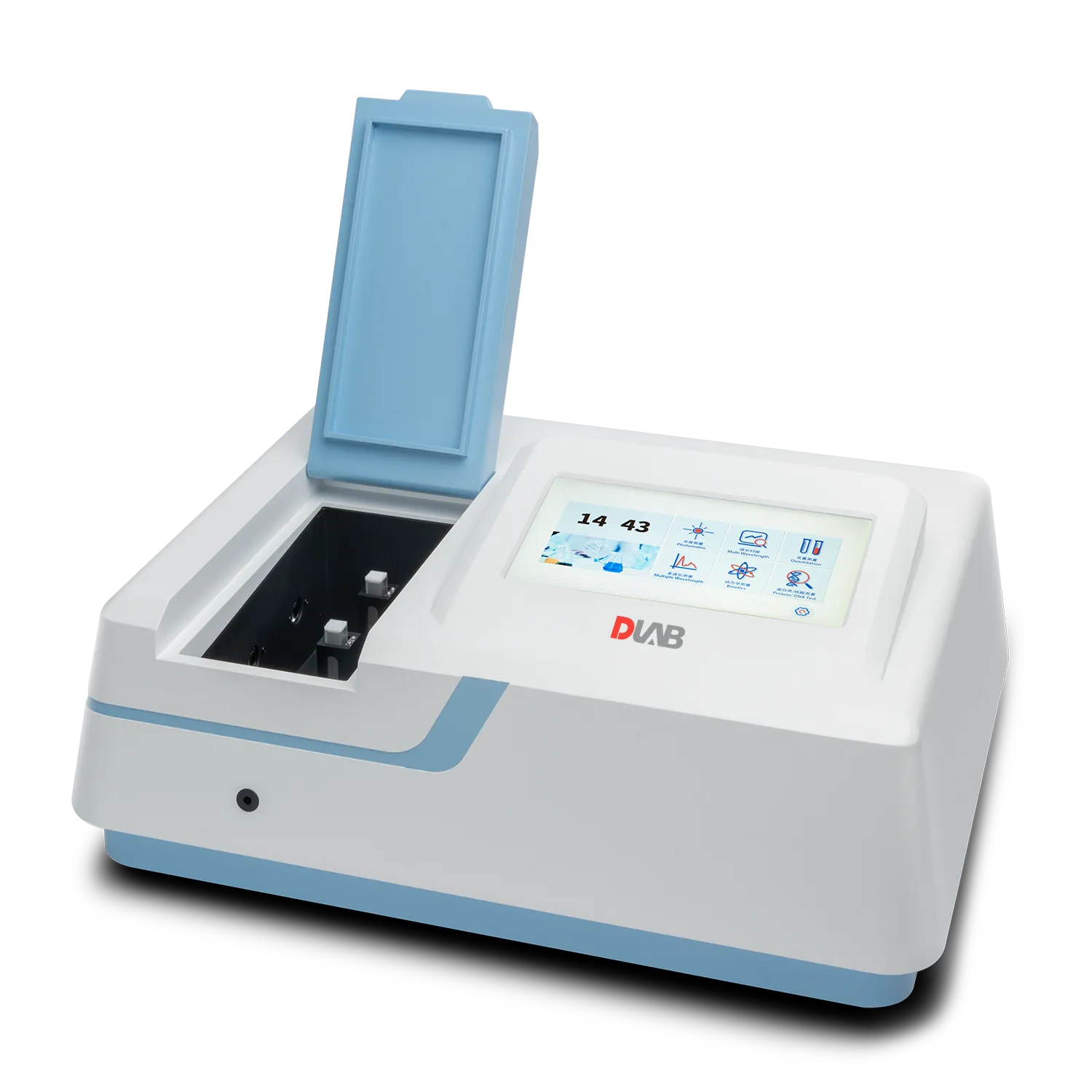

Double Beam UV-Vis Spectrophotometer

The SP-UV3102 is a high-performance double-beam UV-Visible spectrophotometer, ideal for advanced laboratory applications that demand high stability, accuracy, and reliable data reproducibility..

Features/functions:

• Photometric measurement
• Quantitative analysis
• Spectrum scanning
• Kinetics
• DNA/protein analysis
• Multi-wavelength testing
• 10.1-inch colour touchscreen (1024×600 resolution)
• Power-off data retention
• Standard USB port for data export
• Low-noise, high-accuracy wavelength drive mechanism
• Digital photodiode detection system for enhanced optical performance

When connected to a PC, the included software extends functionality to include GLP/GMP-compliant user management, audit logging, data traceability, and automated report generation.

Specifications:

• Optical System: Double beam with holographic grating monochromator
• Wavelength Range: 190–1100 nm
• Wavelength Accuracy: ±0.1 nm at 656.1 nm; ±0.3 nm full range
• Wavelength Repeatability: ≤0.1 nm
• Spectral Bandwidth: 2.0 nm
• Light Source: Tungsten lamp (HYBEC, Japan) and Deuterium lamp (Milaras)
• Photometric Range: -0.3 to 3.0 A; 0–9999 C
• Photometric Accuracy: ±0.002 A (0–0.5 A); ±0.003 A (0.5–1.0 A)
• Photometric Repeatability: ±0.001 A (0–0.5 A); ±0.0015 A (0.5–1.0 A)
• Stray Light: ≤0.03%T @ 220 nm and 360 nm
• Stability: ≤0.001 A/h @ 500 nm (after 1-hour warm-up)
• Sample Holder: Fixed cuvette holder, 1 cm path length
• Display: 10.1″ colour touchscreen (1024×600 resolution)
• Output Ports: USB and printer port
• Power Supply: 230 V, 50 Hz, 120 W
• Dimensions: 570 × 440 × 210 mm
• Weight: 20 kg
