Digital High Speed Overhead Stirrer Set
Categories: Overhead StirrersSKU: OS1-Parent
Product Enquiry
Digital High Torque/Speed Overhead Stirrer Set
Key Features:
- Belt-Type Gear System: A robust motor powers this system, allowing for a soft yet forceful operation. It can handle a broad viscosity range up to 150,000 mPa·s due to its 3:1 gear ratio.
- Durability and Stability: This model features a chrome-plated, anti-rust chuck and includes an “anti-trembling” function for the impeller, enhancing both durability and operational stability.
- High-Fidelity LCD Display: Displays settings and statuses through graphic icons for each mode, increasing ease of use.
- Control and Safety: The jog-dial controller and electrostatic touch-type mode button allow for precise control. It’s also equipped with over-heat/load/current protection to ensure safety during use.
| Option A | Option B | Option C | ||

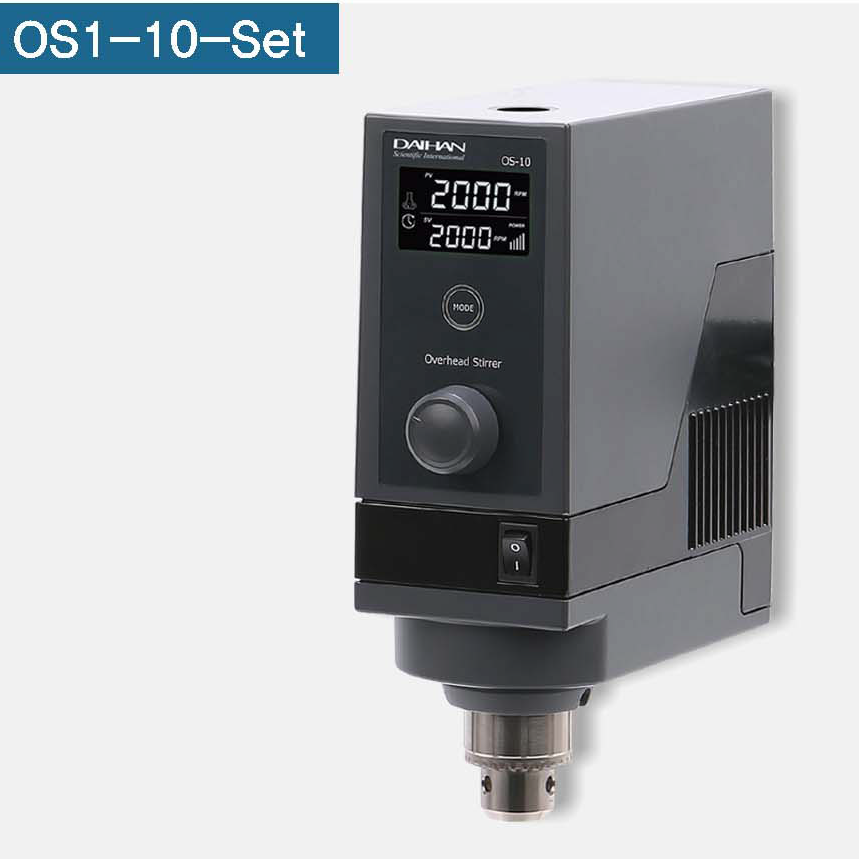

| Product Code | OS1-10-Set | OS1-15-Set | OS1-20-Set | |
| Stirring Capacity | Max. 25 Lit. (H2O) | Max. 40 Lit. (H2O) | Max. 60 Lit. (H2O) | |
| Maximum Viscosity | 70,000 mPas | 100,000 mPas | 150,000 mPas | |
| Maximum Torque | 120 Ncm | 180 Ncm | 270 Ncm | |
| Gear Rate | 2.0 : 1 | 3.0 : 1 | 4.5 : 1 | |
| Speed | Range | 100 ~ 2,000(3,000) rpm | 80 ~ 1,200 rpm | 50 ~ 800 rpm |
| Resolution | 5rpm–display/5 rpm–control | |||
| Motor | Direct driven DC motor | |||
| Motor Rating (Input/Output) | 110 / 85W | |||
| Timer/Alarm | 99hr 59min/Error status, Timer-end | |||
| Controller | Digital Fuzzy Controller w/Electrostatic Touch button+Jog-dial | |||
| Display | High Fidelity LCD with Back-Light function | |||
| Max. Impeller Shaft Diameter | 10mm | |||
| Permissible temp./RH % | 0 ~ 40°C / 80%RH | |||
| Material | ABS and Aluminum | |||
| Safety Device | Over-heat/load/current protection | |||
| Power Consumption | 180W | |||
| Dimension/Weight | 80x194x245mm/10.39kg | 80x194x245mm/10.44kg | 80x194x245mm/10.5kg | |
| Packing Size/Weight | 290x800x180mm/12.14kg | 290x800x180mm/12.2kg | 290x800x180mm/12.27kg | |
| Power Supply | AC230V, 50/60Hz, 1P | AC230V, 50/60Hz, 1P | AC230V, 50/60Hz, 1P | |

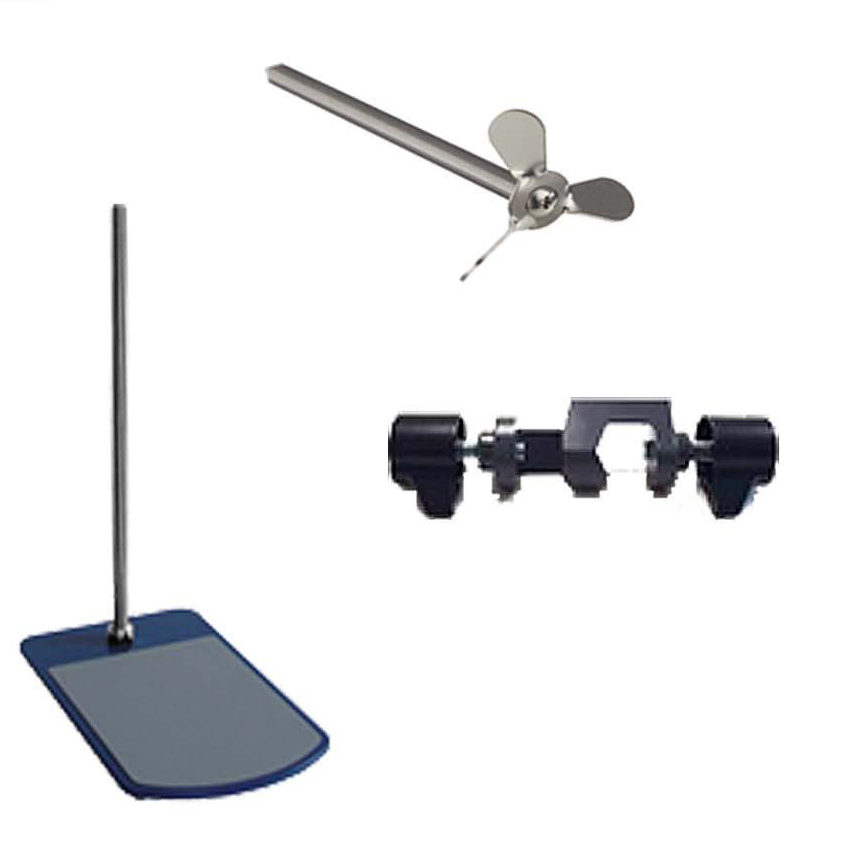

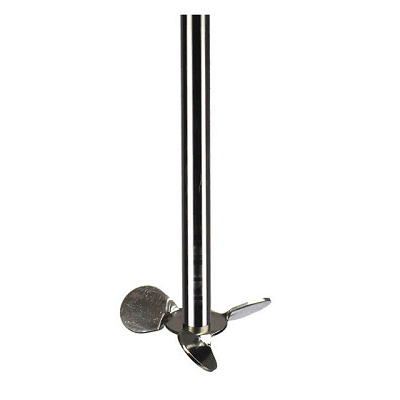

| Standard Accessories | Impeller 3-blade/Standard plate stand/Clamp | |||
| Weight | N/A |
|---|
