SKU: JIDI-20B
desk multipurpose high-speed centrifuges
Available on Backorder
Categories: UncategorisedSKU: JIDI-20B
Product Enquiry

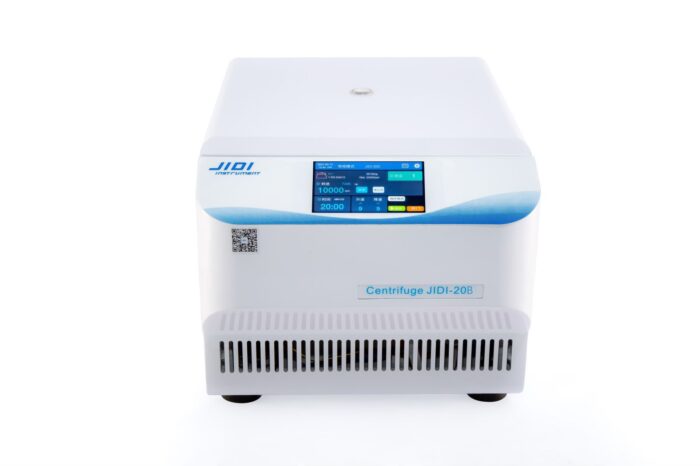

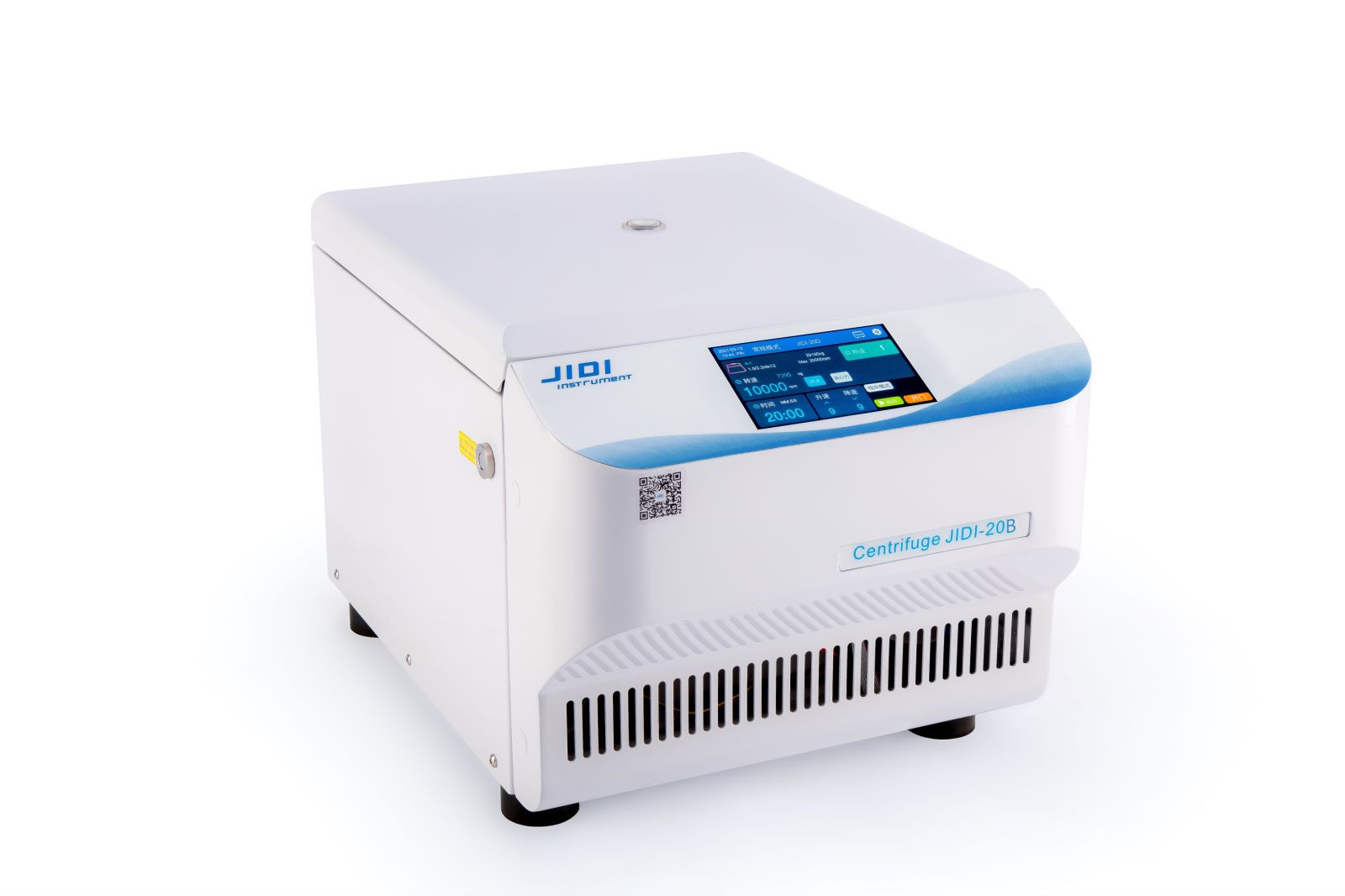

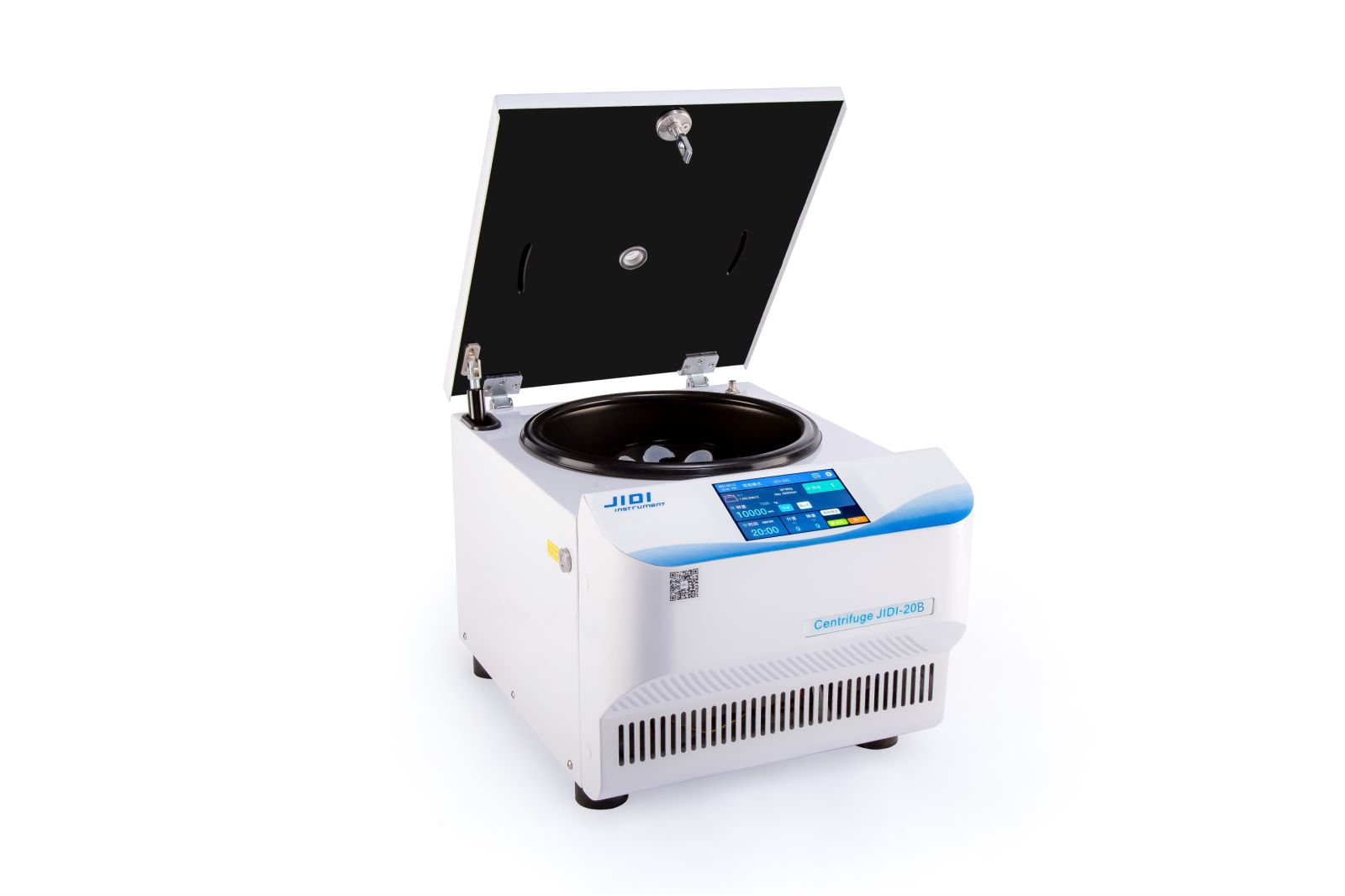

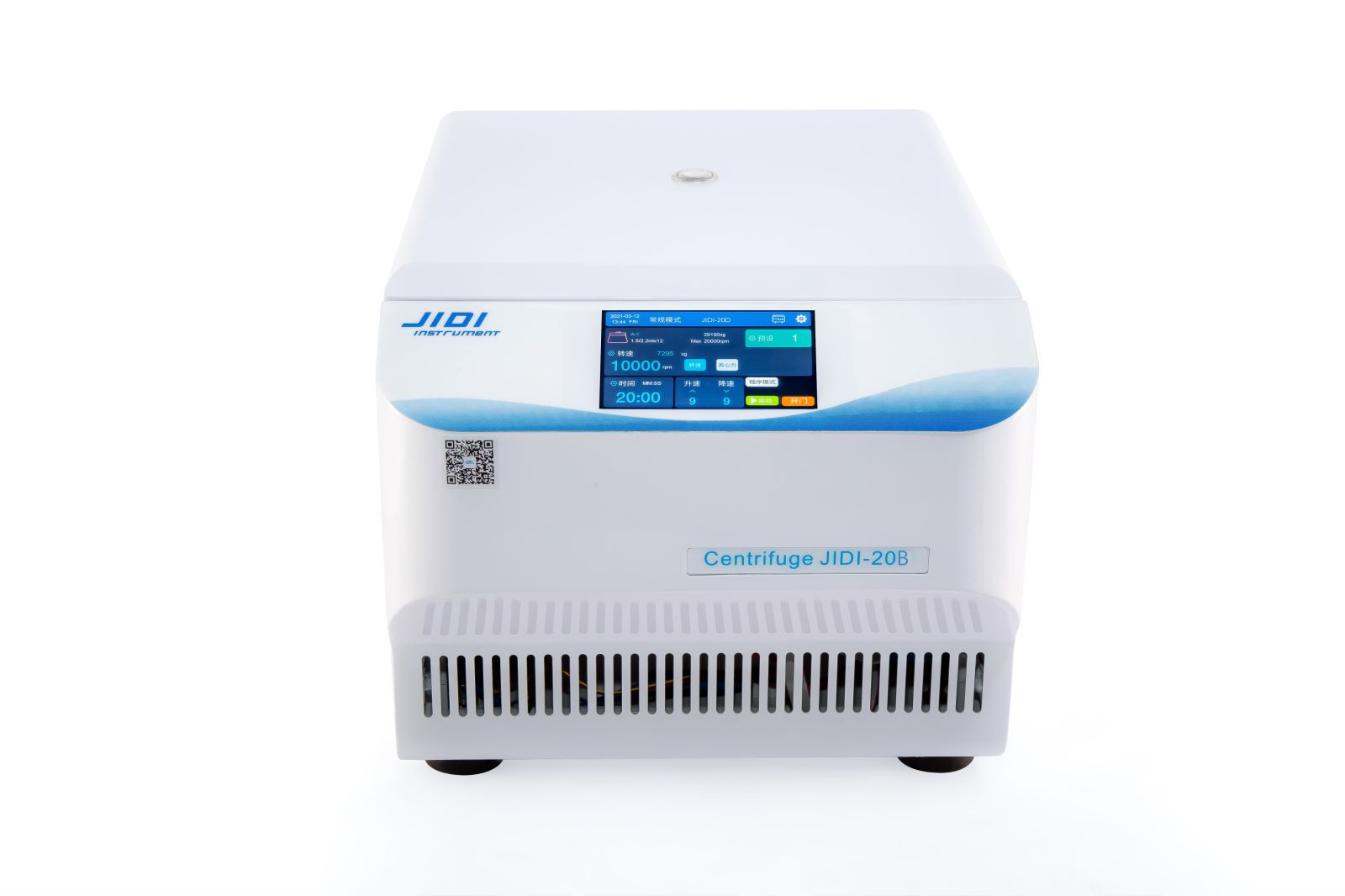

JIDI-20B Desk Multipurpose High-Speed Centrifuge
The JIDI-20B is a compact, high-performance centrifuge designed for precision applications across research, medical, clinical, and industrial laboratories. With a speed capacity of up to 22,000 rpm and a robust intelligent control system, it supports advanced separation needs with maximum safety, flexibility, and efficiency.
Application Areas
- Biochemistry
- Genetic Engineering
- Food Safety Testing
- Hospital and Clinical Labs
- Research & Industrial Laboratories
Technical Specifications
- Model: JIDI-20B
- Max Speed: 22,000 rpm
- Max RCF: 38,906 × g
- Timer:
- 0–99 min 59 sec
- 0–99 hr 59 min (switchable)
- Speed Accuracy: ±10 rpm
- Acceleration/Deceleration Modes: 0–9
- Motor: Inverter-controlled centrifuge motor
- Power Supply: AC 220V, 50Hz, 10A
- Power Consumption: 660W
- Noise Level: ≤55 dB
- Weight (excluding rotor): 33 kg
- Dimensions (L × W × H): 520 × 360 × 323 mm
Key Features
High-Performance Motor and Rotor System
- Equipped with an ultra-quiet, high-precision motor made of aerospace-grade alloy.
- Tool-free rotor installation and removal via precision snap-fit.
- Intelligent rotor recognition and automatic imbalance detection.
Durable Construction and Materials
- Chamber and rotor constructed with superalloy stainless steel composite, providing lifelong resistance to corrosive samples and solvents.
- Surface treated to resist salt spray damage, wear, and chemical degradation.
7-Inch Smart Touchscreen Display
- Full-color interface showing real-time values for speed, RCF, time, rotor type, lid status, and system date/time.
- Allows for presetting either speed (RPM) or centrifugal force (RCF).
- Supports fully programmable user-defined protocols.
Intelligent Safety Features
- Real-time speed detection with emergency interlock if abnormalities occur.
- Auto-disabling control panel on error to prevent misuse.
- Advanced error alarms for over-speed, over-temperature, imbalance, and more.
Smart Operation and Data Tracking
- Logs all operation data, with curve display for speed, RCF, and temperature over time.
- Adjustable screen brightness, language (English/Chinese), sound settings, and lid automation.
- Ergonomic layout ensures simple operation and long-term durability.
Advanced Engineering and Design
- Patented triangular motor fixation and triple shock absorption ensure ultra-smooth, vibration-free operation.
- Ventilated chamber design with suspended circuit boards provides excellent moisture resistance.
- Stylish and modern housing made of corrosion-resistant composite with a durable baked enamel finish.
Rotor Accessories
Custom rotor sizes available upon request.
| No. | Rotor Type | Max Speed (rpm) | Max RCF (×g) | Capacity | Notes |
|---|---|---|---|---|---|
| 1 | Fixed-angle rotor | 22,000 | 33,275 | 12 × 1.5 ml | Customized |
| 2 | Fixed-angle rotor | 20,000 | 38,906 | 24 × 1.5/2.2 ml | Optional adapters for 0.2/0.5 ml |
| 3 | Fixed-angle rotor | 15,000 | 26,412 | 48 × 1.5/2.2 ml | Customized |
| 4 | Fixed-angle rotor | 16,000 | 25,614 | 12 × 10 ml | – |
| 5 | Fixed-angle rotor | 17,000 | 22,373 | 12 × 5 ml | – |
| 6 | Fixed-angle rotor | 14,000 | 23,008 | 12 × 15 ml | Round/conical bottom optional |
| 7 | Fixed-angle rotor | 14,000 | 23,008 | 6 × 50 ml | Universal adapters for 1.5–15 ml tubes |
| 8 | Fixed-angle rotor | 12,500 | 19,215 | 4 × 100 ml | – |
