SKU: DAIHAN-ThermoStable OV
DAIHAN Vacuum Oven
Available on Backorder
Categories: Vacuum OvensSKU: DAIHAN-ThermoStable OV
Product Enquiry

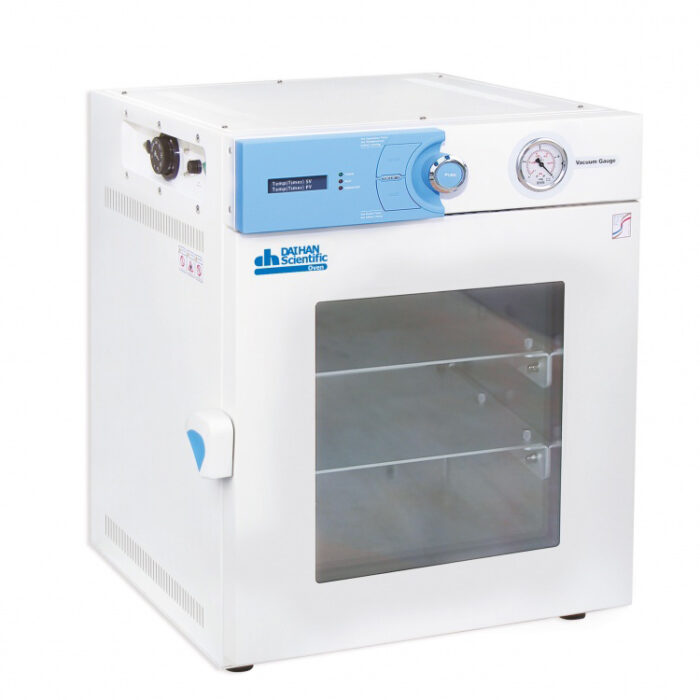

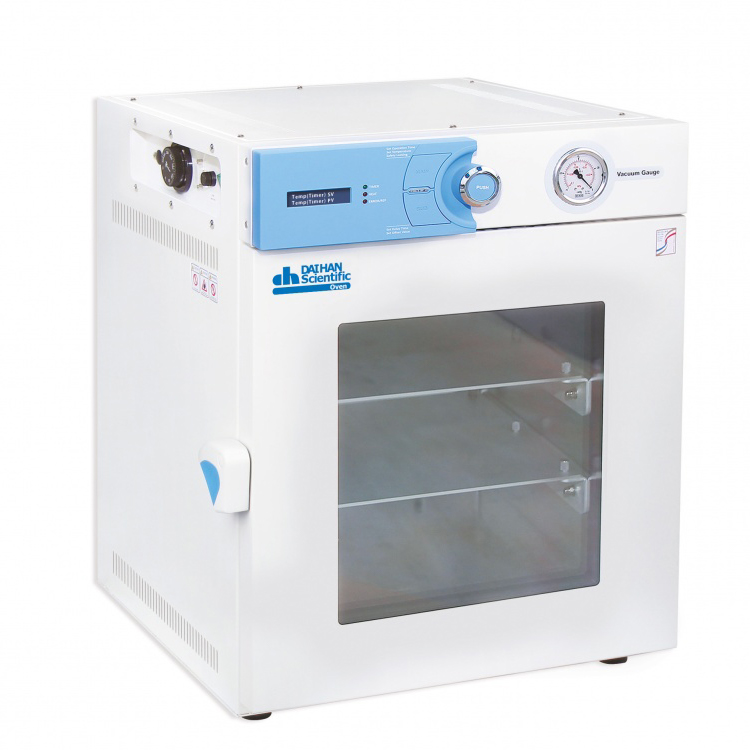

DAIHAN® ThermoStable™ OV Gas Exchangeable Precise Vacuum Drying Oven
Overview: The DAIHAN® ThermoStable™ OV Vacuum Drying Oven is a high-precision laboratory oven designed for optimal drying, baking, curing, conditioning, and moisture testing. It is equipped with advanced digital PID control technology and exceptional temperature and vacuum accuracy, providing excellent thermal conductivity and efficiency.
Applications: Ideal for:
- Drying
- Baking
- Conditioning
- Curing
- Out-gassing of solids and liquids
- Vacuum embedding
- Moisture testing
- Plating
- Aging tests
Key Features:
- Gas exchangeable design
- Jog-Dial control system with backlit LCD
- Highly visible, easy-to-read vacuum gauge
- High-quality, heavy-duty safety front door with tempered safety glass and polycarbonate viewing window
- High-temperature silicone gasket for superior door sealing
- Locking mode for enhanced experimental safety
- Compact and modern body design
- WiseRemote Control Software for data export to Excel
Technical Specifications:
| Model | OV-20 | OV-30 | OV-70 |
|---|---|---|---|
| Capacity | 20 Liters | 30 Liters | 70 Liters |
| Temperature Range | Ambient +10°C to 200°C (PT100 sensor) | ||
| Temperature Accuracy | ±0.5°C at 100°C & 150°C | ||
| Temperature Uniformity | ±2.0°C to ±3.0°C | ±2.5°C to ±3.5°C | |
| Vacuum Range | 10 ~ 750 mmHg | ||
| Shelf Included | 2 Aluminum Shelves | ||
| Interior Dimensions (mm) | 265×290×265 | 300×330×300 | 400×435×400 |
| Exterior Dimensions (mm) | 480×475×547 | 515×515×582 | 618×620×682 |
| Weight | 48 kg | 55 kg | 85 kg |
| Power Consumption | 600 W | 600 W | 1.6 kW |
| Electrical Requirements | AC 230V, 50/60Hz | ||
Certifications:
UL, CUL, and CE Certified
Product Liability (PL) Insurance
Certificate of traceability for quality assurance
Warranty:
2-Year Manufacturer Warranty
| Weight | N/A |
|---|---|
| Volume | 70Ltr, 20Ltr, 30Ltr |
