Biological Tissue Vacuum Dehydrator
Available on Backorder
Product Enquiry

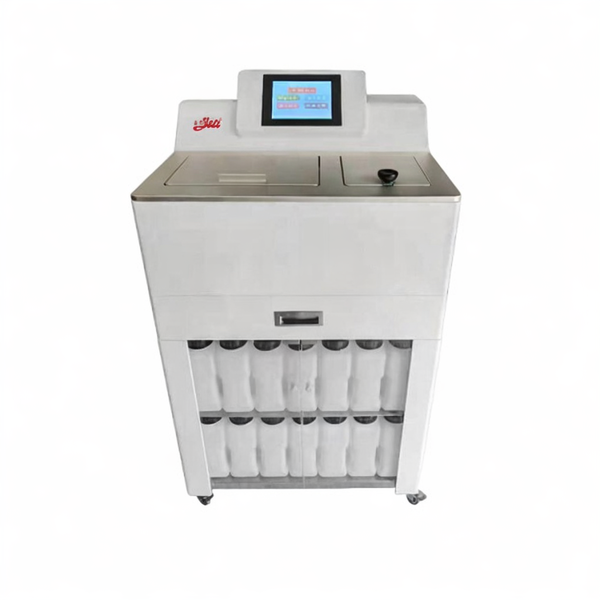

Automatic Tissue Processor – High-Capacity Paraffin Embedding System for Pathology Labs
Enhance your histology lab’s precision and productivity with this advanced automatic tissue processor, engineered for the high-throughput demands of clinical pathology, histopathology, and biomedical research. Designed for safety, automation, and efficiency, this cutting-edge unit streamlines tissue dehydration and paraffin embedding while minimizing reagent loss and operator risk.
With an intuitive interface, automatic wax recovery, and intelligent reagent circulation, it is the ideal solution for modern laboratories seeking fast, clean, and consistent sample processing.
Performance Features
- High-Sensitivity Color Touchscreen
Equipped with a user-friendly touch interface (Chinese display supported), allowing both manual and automatic operation modes. Easily program, store, and retrieve up to 20 customizable processing protocols. - Stationary Sample Design
Samples remain static while reagents circulate, eliminating mechanical risks such as jams, power failure damage, or rotational errors. The closed system ensures zero leakage or hazardous vapor release. - Efficient Reagent Management
- Automatic paraffin wax recovery for cleaner processing and reduced waste
- Independent paraffin and reagent pipelines to minimize cross-contamination
- One-click automatic cleaning for effortless maintenance
- Smart Monitoring & Safety
- Non-contact thermal pressure detection auto-corrects operation flow
- Dual-pressure (positive/negative) control for stable processing
- Self-locking cylinder lid with anti-static mechanical switch for easy access
- Reagent usage count with pop-up replacement alerts
- Carbon filtration system reduces environmental impact
- Automation & Memory
- Password protection and power-off memory restore
- Scheduled start timer to optimize workflow across weekends and holidays
Technical Specifications
| Specification | Details |
|---|---|
| Specimen Capacity | 300 standard embedding cassettes |
| Specimen Baskets | 3 |
| Reagent Tanks | 9 tanks (5L each) |
| Paraffin Tanks | 3 tanks (5L each) |
| Working Tank | 1 (7.5L capacity) |
| Cleaning Containers | 3 |
| Condensation Bottles | 2 |
| Temperature Control – Studio | Room Temp ~ 45°C (adjustable) |
| Paraffin Temp Range | Room Temp ~ 85°C (±1°C accuracy) |
| Paraffin Melting Time | ≤ 3 hours |
| Bath Time Setting | 0 – 99 hours 59 minutes |
| Liquid Intake/Drain Time | 1.5 – 5 minutes (configurable) |
| Stirring Function | Fully programmable |
| Vacuum Degree | -0.06MPa |
| Operating Modes | Manual and automatic |
| Power Supply | 220V, 50Hz, <1500W |
| Dimensions (L × W × H) | 670 × 620 × 1230 mm |
Optimized for Pathology, Histology, and Clinical Research
This automated paraffin tissue processor is a must-have for labs requiring efficient, reliable, and contamination-free sample processing. Its superior design ensures minimal reagent use, robust temperature regulation, and hassle-free cleaning—making it ideal for high-volume sample workflows.
Whether for hospital diagnostics, academic labs, or research institutions, this processor ensures your lab stays productive, safe, and future-ready.
