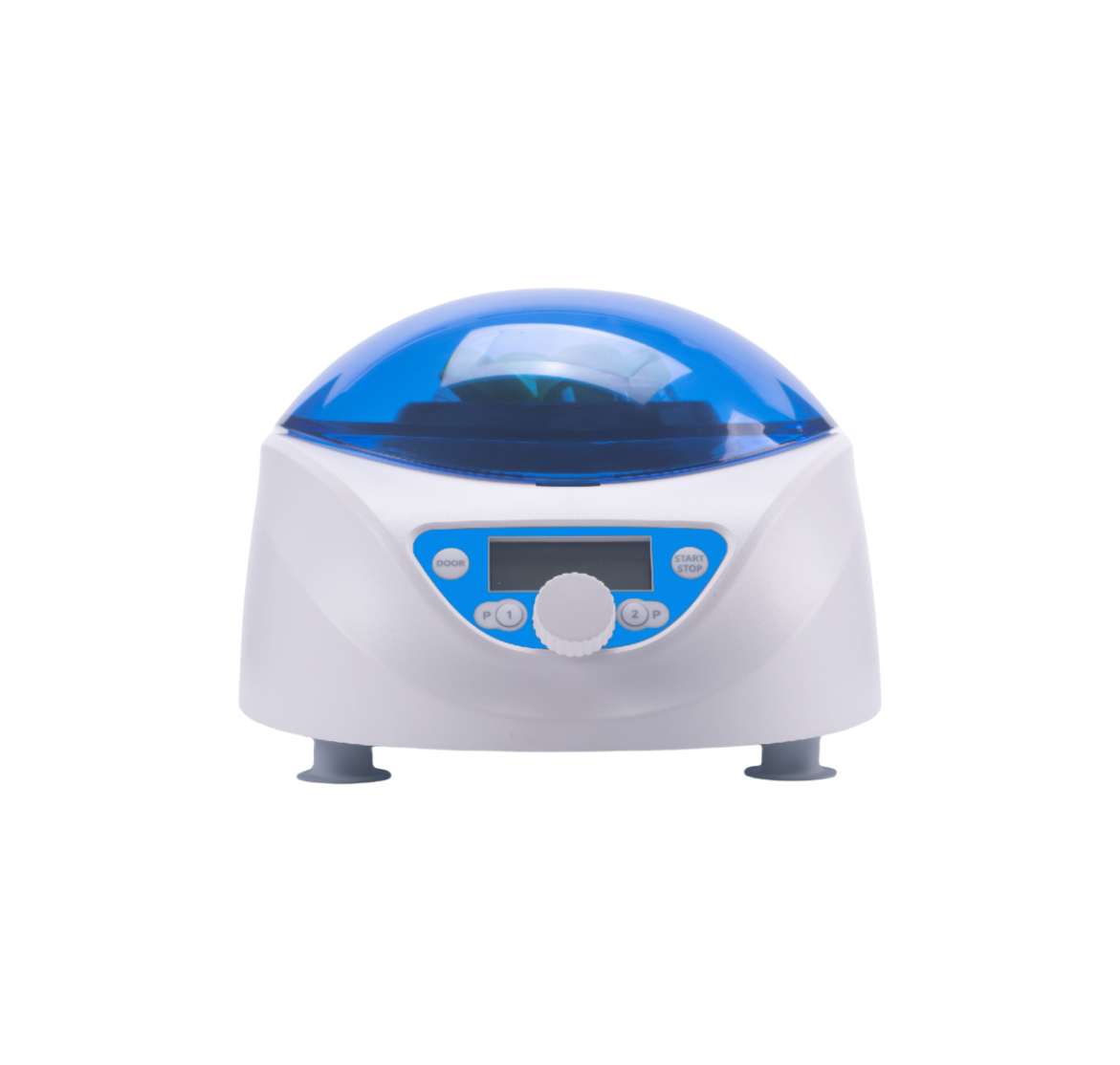

JIDI-4A Benchtop Mini Lab Centrifuge

The JIDI-4A is a compact and quiet benchtop centrifuge, engineered for medical labs, clinics, and research facilities requiring efficient separation of blood, urine, and biological samples. With smart programming, real-time process display, and flexible tube compatibility, it delivers precise control in a user-friendly design.

---

Key Specifications

• Model: JIDI-4A
• Speed Range: 300–5,000 rpm (+10 rpm)
• Maximum RCF: 2,350 × g (+10 × g)
• Speed Accuracy: ±20 rpm
• Capacity: 6 × 15 ml / 10 ml / 7 ml / 1.5–5 ml tubes
• Timer Range: 30 sec – 99 min (continuous run function available)
• Acceleration/Deceleration Time: 40 sec ↑ / 40 sec ↓
• Display Screen: LCD
• Stored Programs: 2 (P1/P2 One-Touch Access)
• Power Supply: 100–240V, 50/60Hz, 70W
• Motor Type: Brushless DC Motor
• Noise Level: ≤52 dB
• Product Weight (excluding rotor): 5.2 kg
• Dimensions (L × W × H): 300 × 240 × 180 mm
• Plug Options: Single-phase self-adaptive power supply with multi-country plug support

---

Key Features

Versatile Tube Compatibility

• Pre-installed rotor supports 6 × 15 ml or 10 ml tubes.
• Adapters available for 7 ml, 5 ml, 2 ml, and even small cryogenic tubes:
• 13 × 75 mm blood collection tubes in 5 ml adapter
• 11 × 43 mm blood collection and cryogenic tubes in 2 ml adapter

Intuitive Speed & G-Force Settings

• Switch between RPM or RCF (G-force) display with real-time readout on the LCD.
• Precision speed control with ±20 rpm accuracy.

Time-Saving Program Modes

• Store and launch custom settings using 2 memory programs (P1/P2).
• One-Touch Start makes routine operations faster and easier.

Quiet & Reliable Operation

• Operates at ≤52 dB—perfect for noise-sensitive environments.
• Durable brushless DC motor requires minimal maintenance and offers long service life.

Smart Control System

• Visual operation process display, error code reminders, and audible alarm unit enhance usability and safety.
• Lid opens automatically after the run ends, with a sound prompt and auto-unlock feature.

Enhanced Safety

• Equipped with:
• Door lock mechanism
• Overspeed protection
• Audible alarms
• Real-time status monitoring

---

Applications

• The JIDI-4A is widely used in:
• Medical and clinical laboratories
• Hospital diagnostic departments
• Research institutions
• Urine and blood sample separation
